CTEK PRO60 User Manual page 5

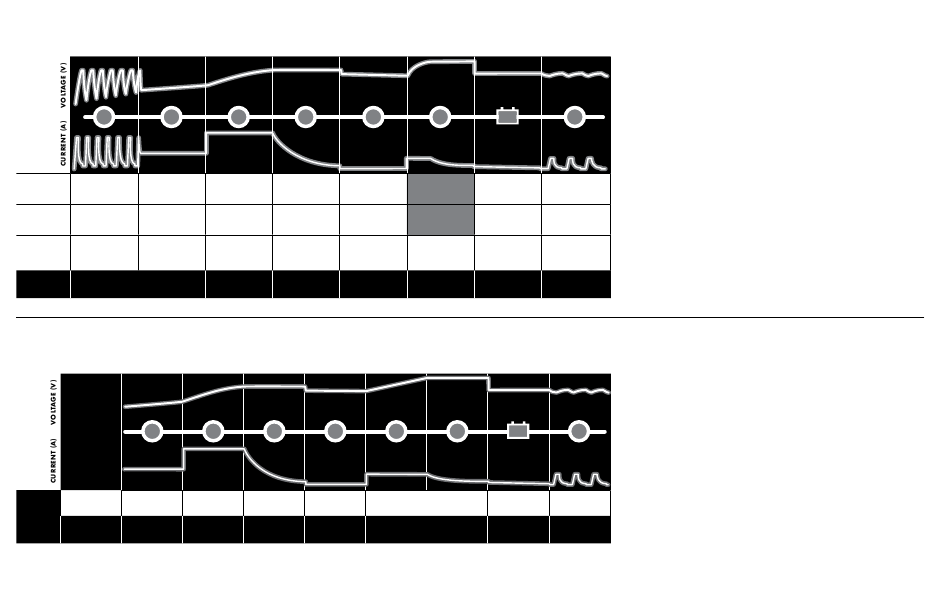

CHARGING PROGRAMS LEAD-ACID BATTERIES
DESULPHATION SOFT START
1 1 2
15.8V 60A/120A until 12.6V Increasing voltage to
NORMAL
15.8V 60A/120A until 12.6V Increasing voltage to
AGM
15.8V 60A/120A until 12.6V Increasing voltage to
Ca/Ca
Limit: 8 hours
CHARGING PROGRAMS LITHIUM BATTERIES
WAKE UP ACCEPT
1
14.4V 11.0V 60A/120A until
Lithium
1A 60A/120A 13.8V
Max
Limit: 25 s Max 20 hours
10 minutes
6 • EN
BULK ABSORPTION ANALYSE
3 4 5
Declining current Checks if voltage
14.4V 14.4V drops below
Max 60A/120A 12.0V
Declining current Checks if voltage
14.7V 14.7V drops below
Max 60A/120A 12.0V
Declining current Checks if voltage
14.7V 14.7V drops below
Max 60A/120A 12.0V
20 hours 16 hours 3 minutes
BULK ABSORPTION ANALYSE COMPLETION
2 3 4
13.8V Decreasing
Checks if voltage
current and intel-
drops below 12.0V
ligent time control
If start charge voltage less than
Max 4 hours 3 minutes
RECOND FLOAT
6 7
13.6V 12.7V–14.4V
60A/120A 30A–3.0A
13.6V 12.7V–14.4V
60A/120A 30A–3.0A
Max 15.8V 13.6V 12.7V–14.4V
3.0A
60A/120A 30A–3.0A
Initial voltage
>12.3V = 2 hours,
otherwise 6 hours.
24 hours
(Power Supply Max 1h pulse
unlimited time)
MAXIMIZATION FLOAT
5 6 7
13.3V 13V–13.8V
14.4V
60A/120A 15A–3.0A
Max 3.0A
Cycle start at 12.8V Cycle start at 12.8V
Max 1 hour pulse
Max 24 hours
Auto pulse
13.9V then max 2 hours
PULSE
STEP 1 DESULPHATION
Detects sulphated batteries. Pulsing current and voltage, removes sulphates from the
lead plates of the battery restoring the battery capacity.
STEP 2 SOFT START
Tests if the battery can accept charge. This step prevents charging a defective battery.
STEP 3 BULK
8
Charging with maximum current until approximately 80% battery capacity.
STEP 4 ABSORPTION
Charging with declining current to maximize up to 100% battery capacity.
STEP 5 ANALYSE
Tests if the battery can hold charge. Batteries that cannot hold charge may need to be
replaced.
STEP 6 RECOND
Select the Ca/Ca program to add the Recond step to the charging program. During the
Recond step voltage increases to create controlled gassing in the battery. Gassing mixes
the battery acid and gives back energy to the battery.
STEP 7 FLOAT
This step maintains the battery voltage by providing a constant voltage charge.
STEP 8 PULSE
Maintaining the battery at 95–100% capacity. The charger monitors the battery voltage
and gives a pulse when necessary to keep the battery fully charged.
WAKE UP
Safely bypasses the discharge protection if active on the battery.
PULSE
STEP 1 ACCEPT
Tests if the battery can accept charge. This step prevents that charging proceeds with a
defect battery.
STEP 2 BULK
Charging with maximum current until approximately 90% battery capacity.
STEP 3 ABSORPTION
8
Charging with declining current to maximize up to 95% battery capacity.
STEP 4 ANALYSE
Tests if the battery can hold charge. Batteries that can not hold charge may need to be
replaced.
STEP 5 COMPLETION
Final charge with increased voltage.
STEP 6 MAXIMIZATION
Final charge with maximum voltage up to 100% battery capacity.
STEP 7 FLOAT
Maintaining the battery voltage at maximum level by providing a constant voltage
charge.
10 days
STEP 8 PULSE
Maintaining the battery at 95–100% capacity. The charger monitors the battery voltage
and gives a pulse when necessary to keep the battery fully charged.
