Summary of Contents for CTEK XC 800
-

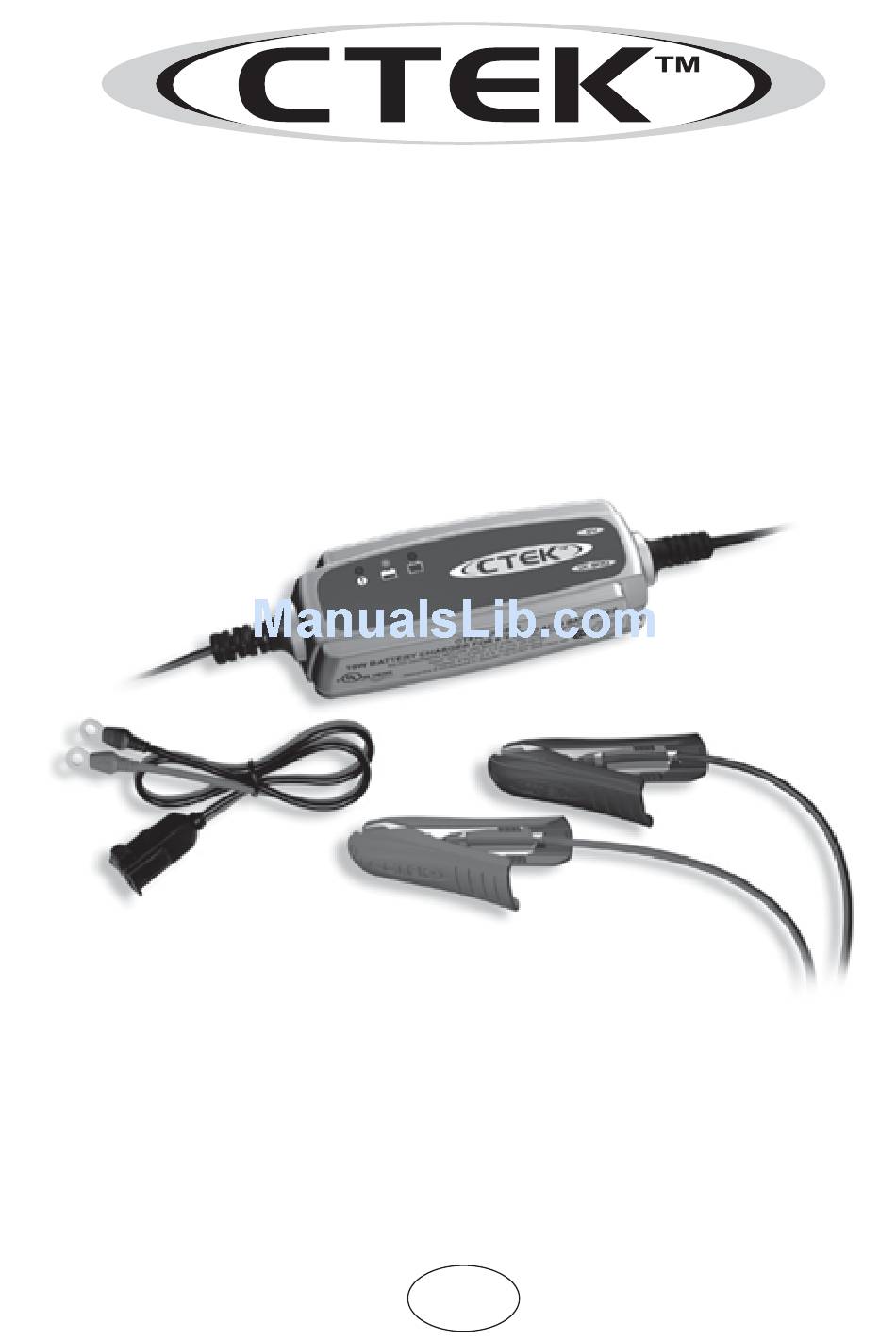

Page 1: Battery Charger
CTEK XC 800 Battery charger For lead-acid batteries 1.2–100Ah User Manual and guide to professional battery charging for Starter and Deep Cycle batteries. - Page 2 Charger with Pulse Maintenance. CTEK XC 800 is a member of a family of professional charg- ers from CTEK Sweden AB. It represents the state-of-the-art technology for battery charging. A CTEK XC 800 will prolong the lifetime of your battery. Read this user manual and follow the instructions carefully before using the charger.
-
Page 3: Battery Types
The following recommendations should only be considered as guidelines. In the event of uncertainty always refer to the battery manufacturer’s recommendations. CTEK XC 800 is suitable for charging all types of 6V lead-acid batteries: open batteries, MF, AGM and most GEL-batteries. Battery sizes from 1.2 to 32Ah. The charger can maintain batteries up to 100Ah. -
Page 4: Charging Phases

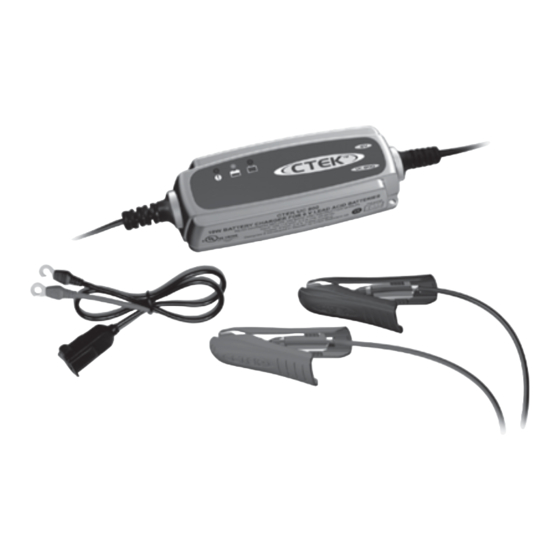

CHARGING PHASES CTEK XC 800 has a four step fully automatic charging cycle IUoUp. At the start of charging the battery charger delivers maximum current to the battery and the battery voltage increases constantly to a set level of 7.2V. At this point the voltage will be regulated and kept constant while the charging current is successively lowered. - Page 5 The case can be cleaned with a soft damp cloth and mild cleanser. The charger should be disconnected from the power while cleaning. EQUIPMENT CTEK XC 800 is delivered with a set of battery leads with battery pole clamps and a set of battery leads with eyelet terminals.
-
Page 6: Technical Specification
**) Quality of the current and voltage are very important. High current ripple heats up the battery and makes the positive electrode age prematurely. High voltage ripple could harm other equipment connected to the battery. CTEK XC 800 produces a high quality current and voltage with very low ripple. -
Page 7: Charging Time
MANUFACTURER’S DECLARATION CTEK SWEDEN AB, Rostugnsvägen 3, SE-776 70 VIKMANSHYTTAN, SWEDEN. Declares under sole responsibility that the battery charger CTEK XC 800, to which this declaration relates is in conformity with the following LVD standards: EN 60335-1, EN 60335-2-29 ac- cording to the terms of directive 73/23/EEC with the addition of 93/68/EEC.
