FB Series User's Manual
■ Features
FB Series adopts the motherboard designed and developed advanced Micro or Flex
ATX form factor which allows you to work seamlessly with the Windows operating
system.
The nimble design of the book size casing not only gives convenient assembling
and maintenance but also allows you to easily upgrade in the future!
If the battery is not properly handled, there may be a risk
according to the instructions given by the manufacturer.
■ Product Overview
1

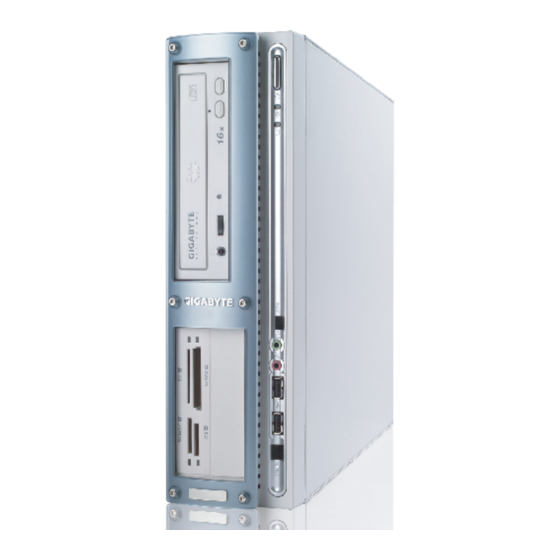

- Book Size Chassis
- Micro or Flex ATX Motherboard (Refer to the model specification)
- Power Supply
- CPU Cooler (Option)
- DVD-ROM / CD-ROM / CD-RW (Option)
- 1.44" Floppy
- Card Reader (Option)
- Keyboard(Option)
- Power Cord
- Front Decorative Panel(Option)
- Accessory Box Content
Motherboard User's Manual
System Installation Guide
Driver CD
HDD IDE Cable
English
WARNING
of explosion; make sure you are using the same or
equivalent battery. Please dispose the used battery
Screw Bag
Mouse (Option)
Foot Stand (Option)
Advertisement
Related Manuals for Gigabyte G-MAX FB
Summary of Contents for Gigabyte G-MAX FB
-
Page 1: Product Overview
FB Series User's Manual ■ Features FB Series adopts the motherboard designed and developed advanced Micro or Flex ATX form factor which allows you to work seamlessly with the Windows operating system. The nimble design of the book size casing not only gives convenient assembling and maintenance but also allows you to easily upgrade in the future! If the battery is not properly handled, there may be a risk of explosion;... - Page 2 Chassis Dimensions 428(D)mm x 92(W)mm x 326(H)mm This chassis is made with material complied with UL specification and designed for space saving. There are one 5.25” and two 3.5” drive bays. This chassis complies with corresponding EMC and safety regulations. Motherboard Please refer to the Motherboard User's Guide for the specifications and related introduction of the motherboard equipment in this system.
-
Page 3: Assembling The System
FB Series User's Manual ■ Assembling the System 1. Unscrew the rear casing and push the upper casing toward the front panel. 2. After loosening the 3 front screws, pull out the device rack, loosen the screw of the hard disk drive rack, and then remove the hard disk drive rack. - Page 4 ® ® A. For Intel Pentium III and Intel CPU Pin Pull the transversal lever Evenly spread the heat dispersion paste on the CPU Latch the hooks on both sides of the CPU securely into the CPU socket ® ® B.
- Page 5 FB Series User's Manual C. For AMD Athlon and AMD Duron CPU Pin Evenly spread the heat dispersion paste on the CPU If you need to set up the frequency of the CPU, please refer to the BIOS SETUP in the Motherboard User's Manual.
- Page 6 There are fixing grooves on both sides Make sure the direction of the foolproof groove must be the same as that of the memory slot on the motherboard. Fixing the hooks. The hooks must be fixed into the grooves before the installation is considered complete. 6.Connect the IDE bus cable bundled in the accessory kit.
- Page 7 FB Series User's Manual 9.Connect the other end of the IDE bus cable to the data bus slot labeled as IDE-1 on the motherboard. 10.Reinstall the optical disk drive back into position on the casing and tighten the screws (please refer to Step 2). 11.Reconfirm that all connections are properly made.
- Page 8 ■ Rear Panel Power Socket Voltage Switch Keyboard Mouse Port (PS/2) Port (PS/2) LAN Port USB Port COM Port LPT Port VGA/COM Port Audio Out Audio In Game Port MIC In ■ Remarks 1.It is recommended to use a high-quality optical disk to avoid the risk of breaking disks during the operation of the high-speed optical disk drive.
