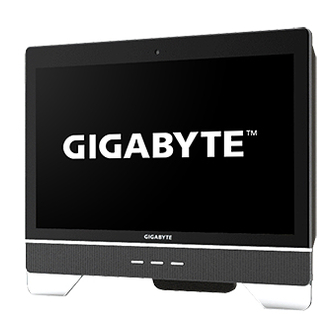

- Page 1 GB-AEBN AIO System User's Manual Rev. 1.0...
-
Page 2: Table Of Contents
Safety Measures ....................... 17 Removing PC Cover ....................18 Removing Motherboard Metal Cover ................ 19 Installing CPU ......................20 Installing Heat Sink ....................21 Replacing Hard Disk Drive ..................22 Installing Memory ...................... 23 Installing Wifi Module ....................24 Troubleshooting ......................25 GB-AEBN... - Page 3 Frequently Asked Questions (FAQ) ................25 Power problems ........................25 Internet access problems .....................26 Display problems ........................27 Keyboard and mouse problems ....................28 Sound and microphone problems ..................29 Miscellaneous problems .......................30 Specifications ........................31 GB-AEBN...
-
Page 4: Overview Of Your Documentation
CAUTION: Indicates important information to prevent potential damage to the unit and data, or personal injury caused by improper use. NOTE: Indicates additional information for particular situation. TIP: Indicates useful information for completing a task. GB-AEBN... -
Page 5: Box Contents
(Optional) • The box contents above are for reference only and the actual items shall depend on the product package you obtain. The box contents are subject to change without notice. • The motherboard image is for reference only. GB-AEBN... -
Page 6: Getting Started With Your Pc
Wireless LAN Activity Indi- The Wireless LAN Activity indicator tells you whether your computer is cator connected to a wireless network or not. • Green light on indicates an active LAN connection. • Orange light on indicates a Wireless LAN connection. GB-AEBN... -
Page 7: Rear View
The internal fans blow hot air away from heat-sensitive components in the computer. Keep the vents clean and free of dirt and dust, as blocking them may cause serious thermal problems. Computer Stand You can adjust the computer stand for the best viewing angle. GB-AEBN... -
Page 8: Right-Side View
Connect your microphone to this jack to record sound or voice. Audio/Headphone Output Connect your headphones or speakers to this jack to listen to the sound Jack from your PC when watching videos and DVDs, listening to music, and playing games. GB-AEBN... -
Page 9: Left-Side View
HDMI Port Supports high definition digital video connections. LAN Port LAN (Local Area Network) port. Use an Ethernet (RJ45) cable to con- nect your computer with a network or broadband device. DC jack Connect the DC power to this port. GB-AEBN... -
Page 10: Setting Up Your Pc
Pull the computer stand till it reaches the first detent stop. (approximately 10° apart from the rear of the computer). Please ensure that the computer stand has been pulled up to the first detent position, so that your computer may stand firm and upright. Carefully lift the computer and adjust the angle of the screen. GB-AEBN... - Page 11 Please ensure that the computer stand has been pulled up to the first detent position, so that your computer may stand firm and upright. Now you are ready to access some ports on the rear panel of the computer to make cable connections. GB-AEBN...
-
Page 12: Turning On Your Pc
Turning Off Your PC To turn off the system, close all the active windows, and then click the Start menu at the bottom left corner of your screen, and then click Shut Down on the right side of the open tab. GB-AEBN... -
Page 13: Brightness Control
Brightness control To adjust the brightness level of the monitor, press the Brightness/Increase button to display the Brightness indicator, and then press the same button to increase the level or press the Picture Mode/Decrease button to decrease the level. GB-AEBN... -
Page 14: Using Your Pc
For details about installing the wireless LAN card, router, or access point, please refer to the manuals that shipped with the product you purchased or contact the manufacturer. 1. Choose a network you intend to join from the list. GB-AEBN... -
Page 15: Using The Webcam
Check the ambient light conditions around the webcam to avoid getting images that ap- pear too dark or too bright. GB-AEBN... -
Page 16: Using The Optical Disc Drive
You can also use it to burn CD-R/CD-RW or DVD+R/DVD-R/DVD+RW/DVD-RW/DVD-RAM discs. The following tables show which formats are supported by the optical disc drive. CD-writable Drives Media Type Read Write Rewritable CD-R CD-RW DVD-Writable Drives Media Type Read Write Rewritable CD-R CD-RW DVD+R DVD-R DVD+RW DVD-RW DVD-RAM GB-AEBN... -
Page 17: Upgrading Your Pc
• Hold electronic circuit boards by the edges only. Do not touch the components on the board unless it is necessary to do so. Do not flex or stress the circuit board. • Leave all components inside the static-proof packaging until you are ready to use the compo- nent for the installation. GB-AEBN... -
Page 18: Removing Pc Cover
Make sure the computer is not turned on or connected to AC power. Follow these instructions to remove the system cover: 1. Loosen and remove the screws securing the back cover. 2. Remove the back cover from the system. GB-AEBN... -
Page 19: Removing Motherboard Metal Cover
Removing Motherboard Metal Cover Follow these instructions to remove the motherboard metal cover: 1. Loosen and remove the screws securing the motherboard metal cover. 2. Remove the metal cover from the system. GB-AEBN... -
Page 20: Installing Cpu
1. Raise the metal locking lever on the socket. Remove the plastic covering on the CPU socket. Insert the CPU with the correct orientation. The CPU only fits in one orientation. 2. Replace the metal cover. 3. Push the metal lever back into locked position. GB-AEBN... -
Page 21: Installing Heat Sink
Apply compound evenly on the top of processor before placing the heat sink. Follow these instructions to install the heat sink: 1. Remove the protective cover from the underside of the heat sink. 2. Seat the heat sink in the retention modules and secure with the four screws. GB-AEBN... -
Page 22: Replacing Hard Disk Drive
The tray will not fit back into the bay if inserted incorrectly. Follow these instructions to install the hard disk drive: 1. Loosen and remove the screws securing the HDD bracket. 2. Loosen the four screws. Please secure the screws on the location of numbered 1. GB-AEBN... -
Page 23: Installing Memory
Please note that memory module has a foolproof insertion design. A memory module can be installed In only one direction. 2. Push down the memory and clip it firmly. 3. Reverse the installation steps when you wish to remove the DIMM module. GB-AEBN... -
Page 24: Installing Wifi Module
1. Align the Wifi card with the DIMM module and insert the card into the DIMM slot. Please note that Wifi module has a foolproof insertion design. A Wifi module can be installed in only one direction. 2. Push down the wifi card and clip it firmly. GB-AEBN... -
Page 25: Troubleshooting
• If you are using a wired Internet connection, make sure that your computer is using an Ethernet cable, instead of a telephone cable, to connect with the broadband modem which is purchased from your ISP. For assistance setting up your modem, contact your ISP. GB-AEBN... -
Page 26: Internet Access Problems
DVD burning program. • Select a slower writing speed if you are not under a time constraint. • Check if the added data files exceed the available space on the inserted writ- able disc. GB-AEBN... -
Page 27: Display Problems
Check if the brightness level of the display is adjusted correctly, and is not set screen are too bright or too low or too high. Use the Brightness control by pressing the Brightness/ too dark. Increase /Decrease buttons on the front panel to adjust the brightness level. GB-AEBN... -
Page 28: Keyboard And Mouse Problems
• Click Start > Control Panel > Mouse to open the Mouse Properties dialog fast or too slow. box. Click Pointer Options tab and drag the Motion slider toward Slow or Fast to adjust the speed at which the cursor responds to mouse movement. When done, click OK to finish the configuration. GB-AEBN... -
Page 29: Sound And Microphone Problems
Then try playing the file again. If the audio file still cannot be played, it might require a codec that is not supported by Windows Media Player. For more information about available codecs, see the documentation for Win- dows Media Player at the Microsoft web site. GB-AEBN... -
Page 30: Miscellaneous Problems
If you are using a USB hub, the power requirements of the USB port may be exceeded. • Try connecting your USB device directly to the USB port on your computer. • Check if you need to pre-install software before connecting your USB device. Read the documentation or user manual of the product. GB-AEBN... -
Page 31: Specifications
Specifications Model GB-AEBN ® Processor • Intel Core i7, Core i5, Core i3, Sandy Bridge processors • Support up to 65W ® Chipset • Intel H61 Express Chipset ® Operating System • Windows ® • Windows Memory • Dual channel SODIMM DDR3 1333/1066 MHz •... - Page 32 Dimention • 456 mm (W) x 365 mm (H) x 57 (D) mm Net Weight • 6 KG GB-AEBN...
