Genz Benz SHEN-CPK-8T Owner's Manual

Genz benz shen-cpk-8t: user guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

FEATURES:
• Ultra Lightweight Compact Designs
• Two Pre Amp Channels w/Active EQ
• Input Phase Reverse Switch
• Phantom Power for Condenser Mics
PRODUCT DESCRIPTION
and phenomenal output in surprisingly compact, lightweight cabinets. Each model produces 175 watts as a combo
and 300 watts with an 8 ohm extension cabinet. The amplifier is configured as a 2 channel – 3 input platform and
each channel is equipped with a ¼" unbalanced line input. Channel 2 offers an XLR balanced microphone input
(with phantom power) as well. Inputs on each channel are summed (mixed) together at a 1:1 ratio, so they can all
be used simultaneously. Each channel then passes through independent 3 band equalizers with a sweepable
midrange frequency. Equalization centers were carefully selected for use with acoustic instruments. Each channel
also contains individual send controls to the on-board 24-bit 15 program digital effects circuit. The back panel
contains 3 direct outputs with ground lift switch, an effects loop, auxiliary input, headphone jack, tuner out, effects
cancel jack, and 2-1/4" speaker jacks.

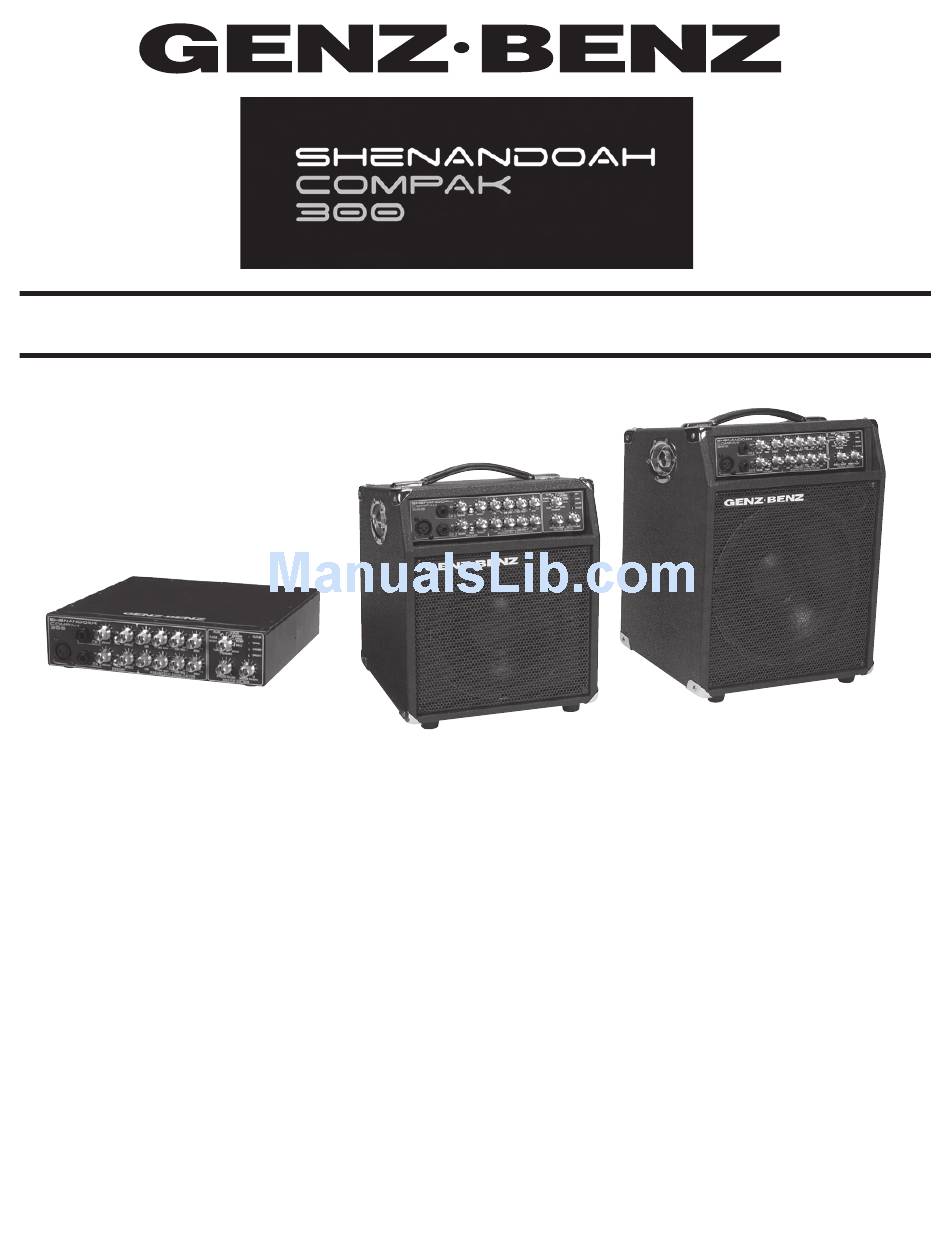

OWNERS MANUAL

• SMPS/Class D Power Amplification Technology
• Neodymium Loudspeaker and Compression Tweeter
• 24-Bit Studio Quality Digital Effects
• Bottom-mounted Tilt Foot
– The Shenandoah Compak 300 series of acoustic amps delivers warm, rich tone
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHEN-CPK-8T and is the answer not in the manual?

Questions and answers

Related Manuals for Genz Benz SHEN-CPK-8T

Summary of Contents for Genz Benz SHEN-CPK-8T

  • Page 1: Owners Manual

    OWNERS MANUAL FEATURES: • Ultra Lightweight Compact Designs • Two Pre Amp Channels w/Active EQ • Input Phase Reverse Switch • Phantom Power for Condenser Mics PRODUCT DESCRIPTION – The Shenandoah Compak 300 series of acoustic amps delivers warm, rich tone and phenomenal output in surprisingly compact, lightweight cabinets.

  • Page 2: Front Panel

    If an instrument offers an unbalanced output it should be connected to the unbalanced input of the Shenandoah amp. Additionally, the precision input scaling preamp contains a 45 Hz, 12dB/octave high pass filter (more effective and less intrusive than the more common 6 dB filters) and an “RFI” filter (radio frequency interference) to eliminate unwanted noise.
  • Page 3 ACTIVE EQUALIZATION –The Shenandoah Compak 300 offers a 3 band (with sweepable mid) active equalizer for each channel. This equalizer network, similar to those found on professional sound consoles, are very useful tools when used correctly. LOW FREQUENCY EQ The corner frequency of the low frequency section is 125 Hz, shelving curve. This frequency is particularly handy when dealing with low frequency feedback from a big dreadnaught guitar.

  • Page 4: Back Panel

    This input is ideal for practicing with recorded tracks from a CD player, IPOD, or MP-3 player. It is recommmended to use a cable with left & right signals connected to a “Y” jack, summing the signal into the aux.
  • Page 5 –An internal phantom power source (13.6 volts) is provided for use with condenser mics. This power source is on at all times and does not affect the standard operation of the amp, even when a condenser mic is not used. We use the DIN 45-596-P12 volt standard, which will operate virtually all of the live sound reinforcement con- denser microphones on the market.

  • Page 6: Specifications

    When matched with the 10” combo, this small rig will deliver 300 watts total output We offer an optional small and large thick padded carry bag for our Shenandoah Compak 300 combos Amp-Sac-Sm - Fits our Shen-CPK-8T Amp-Sac-Lg - Fits our Shen-CPK-10T SHEN-CPK-8T Rated Power: 175W/8ohms;...

  • Page 7: Engineering Specifications

    ¼” Unbalanced input impedance: ¼” Unbalanced input sensitivity: AMPLIFIER OUTPUT Power at 8 ohm load: Power at 4 ohm load: THD + N (preamp): THD + N (power amp): Frequency response: CHANNEL EQUALIZATION Low frequency: Mid frequency (sweep): High frequency:...

  • Page 8: Declaration Of Conformity

    • In addition, by use of this device, the user agrees to hold Genz Benz, Inc. and it’s designers, sales agents and all other affiliates and related parties harmless in the event of any accident, injury, damage or loss resulting from such use.

This manual is also suitable for:

Shen-cpk-10tShenandoah compak 300 seriesShen-cpk-h
