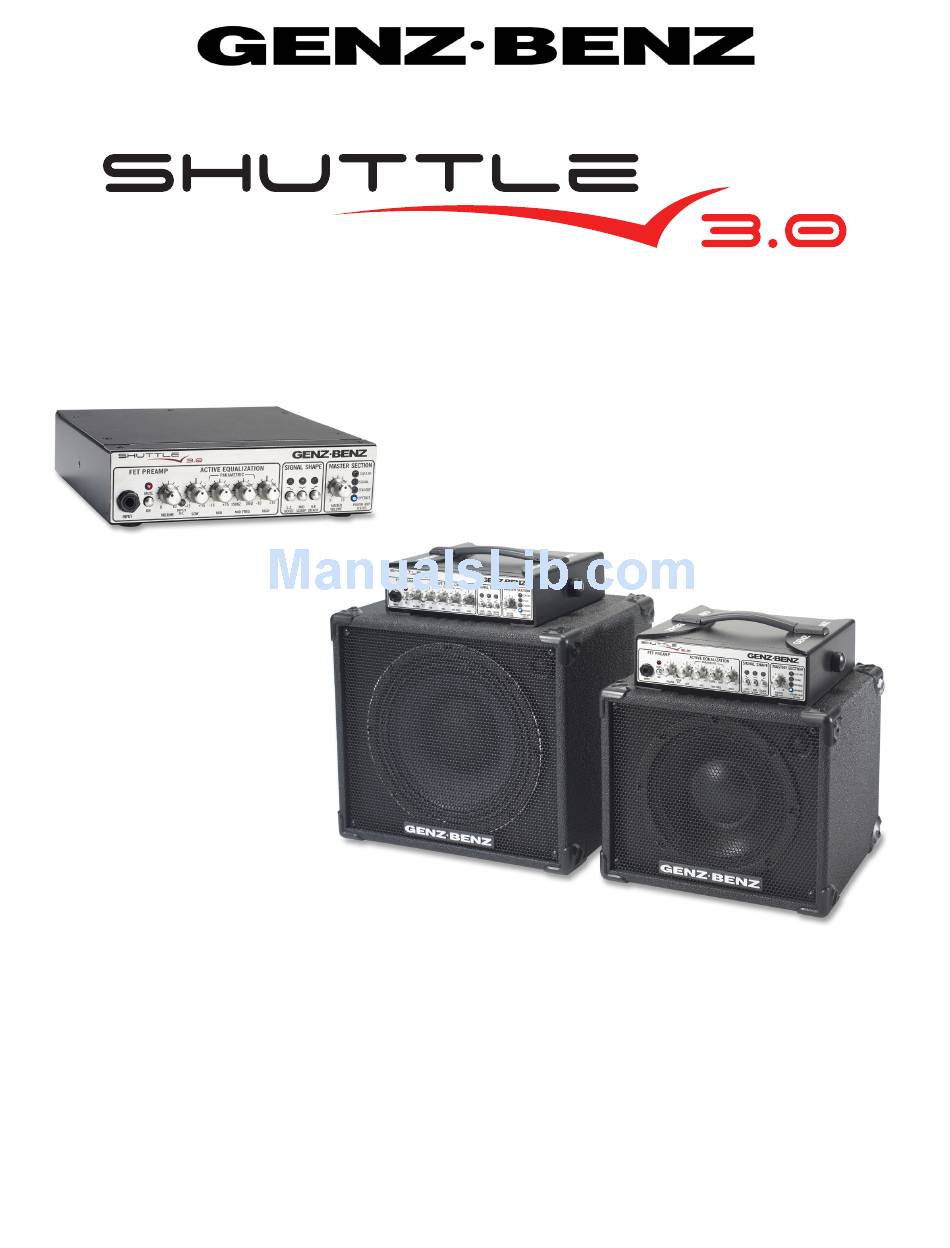

OWNER'S MANUAL
PRODUCT DESCRIPTION –
The SHUTTLE 3.0® bass amplifier has been designed with our unique ULTRA
LIGHT unified design process, yielding a 300 watt professional duty high powered tour-class bass guitar amplifier
weighing only 2.75 pounds! The Shuttle 3.0® is equipped with a ¼" unbalanced instrument input, input stage clip
detector, mute switch with LED indicator, FET preamp with extended range variable input gain, 3 switched signal
shape filters with LED indicators, 3 band active equalization with sweepable midrange frequency, master volume
control, proprietary output limiter, ¼" tuner output, aux input, effects loop, balanced direct out with ground lift/pre-
post/mic-line switches, headphone output, and a 1/4" and Neutrik NL-4 "Speak-On"™ speaker jack.
The power amp is a powerful, lightweight Class D design and is supported by a state-of-the-art digital Switch Mode
Power Supply (SMPS), which does away with the weight of a traditional power transformer. The Shuttle 3.0's power
supply is auto-self configuring from 100 - 240 volts, lending itself well to international touring players.
1
Advertisement
Related Manuals for Genz Benz Shuttle 3.0-8T
Summary of Contents for Genz Benz Shuttle 3.0-8T
- Page 1 1/4” and Neutrik NL-4 “Speak-On”™ speaker jack. The power amp is a powerful, lightweight Class D design and is supported by a state-of-the-art digital Switch Mode Power Supply (SMPS), which does away with the weight of a traditional power transformer. The Shuttle 3.0’s power...
-
Page 2: Front Panel
INPUT SIGNAL MUTE SWITCH – With this mute switch, you can place the amplifier (and Direct Output) in standby mode between sets, without having to change any of your amp settings. This feature can also be used for silent tuning since the Tuner Out stays active when the mute is engaged. A red LED indicates when the Mute is active. -
Page 3: Rear Panel
The “OPERATE” light indicates that the amplifier is ON and the low voltage power supplies are active. • The red “STANDBY” LED indicates that the amp is in “standby” mode and the power amplifier output de-energized. This led will Illuminate for approximately 1.5 seconds during power turn–on and turn-off. It will also illuminate during any internal fault condition such as overheating from 2 ohm operation. - Page 4 This input is ideal for practicing with recorded tracks from a CD player, IPOD, or MP-3 player. It is recommmended to use a cable with left & right signals connected to a “Y” jack, summing the signal into the aux.
-
Page 5: Block Circuit Diagram
STL3.0-8T combo - This model produces 175 watts into the 8 ohm combo configuration and 300 watts when used with an 8 ohm extension cabinet. It will be necessary to use the Neutrik connection on the rear of the amp when using an extension cabinet with this combo. -
Page 6: Declaration Of Conformity
• In addition, by use of this device, the user agrees to hold Genz Benz Enclosures, Inc. and it’s designers, sales agents and all other affiliates and related parties harmless in the event of any accident, injury, damage or loss resulting from such use.
