OWNER'S MANUAL
PRODUCT DESCRIPTION –

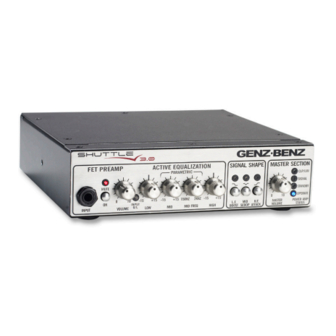

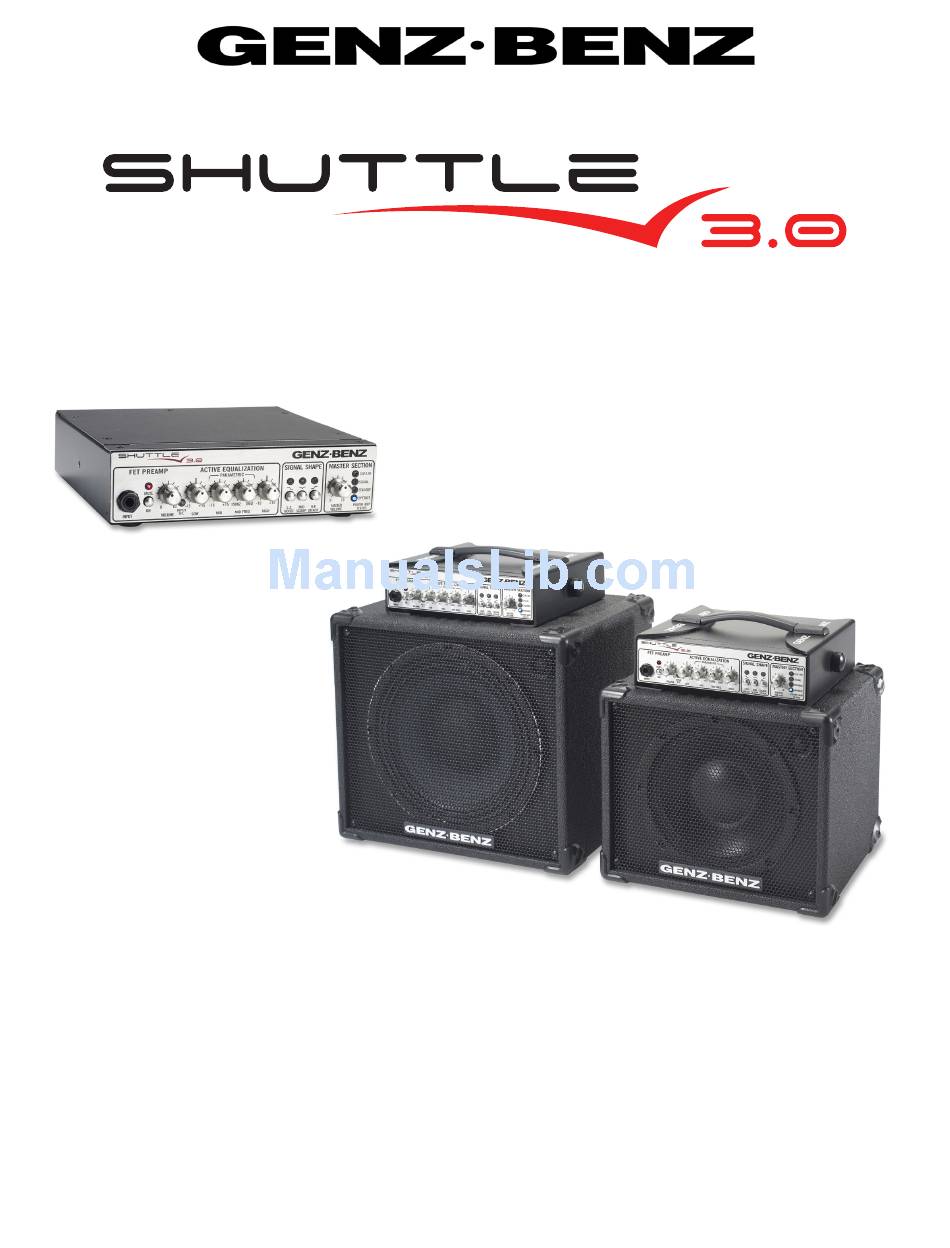

The SHUTTLE 3.0® bass amplifier has been designed with our unique ULTRA
LIGHT unified design process, yielding a 300 watt professional, high powered, tour-class, bass guitar amplifier
weighing only 2.75 pounds! The SHUTTLE 3.0® is equipped with a ¼" unbalanced instrument input, input stage
clip detector, mute switch with LED indicator, FET preamp with extended range variable input gain, 3 switched signal
shape filters with LED indicators, 3 band active equalization with sweepable midrange frequency, master volume
control, proprietary output limiter, ¼" tuner output, aux. input, effects loop, balanced direct out with ground lift/pre-
post/mic-line switches, headphone output, and a 1/4" and Neutrik NL-4 "Speak-On"™ speaker jack.
The power amp is a powerful, lightweight Class D design and is supported by a state-of-the-art digital Switch Mode
Power Supply (SMPS), which does away with the weight of a traditional power transformer. The SHUTTLE 3.0®'s
power supply is auto-self configuring from 100 - 240 volts, lending itself well to international touring players.
1
Advertisement
Table of Contents
Related Manuals for Genz Benz Shuttle 3.0
Summary of Contents for Genz Benz Shuttle 3.0
- Page 1 LIGHT unified design process, yielding a 300 watt professional, high powered, tour-class, bass guitar amplifier weighing only 2.75 pounds! The SHUTTLE 3.0® is equipped with a ¼” unbalanced instrument input, input stage clip detector, mute switch with LED indicator, FET preamp with extended range variable input gain, 3 switched signal shape filters with LED indicators, 3 band active equalization with sweepable midrange frequency, master volume control, proprietary output limiter, ¼”...
-
Page 2: Front Panel
FRONT PANEL INPUT – The SHUTTLE 3.0® is equipped with a standard ¼” unbalanced input. The input sensitivity range is from 80 mV to 1.6 volts. The input impedance is >500K ohms. The input stage contains a precision high order active high pass filter (more effective and less intrusive than the more common 6 dB filters) and an “RFI”... -
Page 3: Rear Panel
REAR PANEL TUNER OUTPUT – The SHUTTLE 3.0® is equipped with a fully isolated Tuner Output. This jack is located after the front end scaling preamplifier, but is pre-signal shape and pre-EQ. This output may also be used to drive a separate direct box or high-impedance recording device. - Page 4 Do not connect this output to anything but headphones. POWER AMPLIFIER – The SHUTTLE 3.0® uses a state of the art, class D power amplifier design and a high frequency switch-mode power supply (SMPS) to achieve unprecedented high performance and lightweight packaging.
-
Page 5: Block Circuit Diagram
COMBO VERSIONS---- REMOVABLE CHASSIS FEATURE—A unique element of the SHUTTLE 3.0® combo models is the ability to easily remove the amp “head” from its protective “saddle” and use the SHUTTLE 3.0® amp with larger enclosures for bigger venues. Removal of the chassis is simple. We recommend first unplugging the speaker cable from back of chassis. -
Page 6: Declaration Of Conformity
3 years. WARRANTY: • Genz Benz warrants the model SHUTTLE 3.0® to be free from defects in materials and workmanship for a period of 3 years from the date of purchase, when purchased from an authorized Genz Benz dealer.
