OWNERS MANUAL

PRODUCT DESCRIPTION

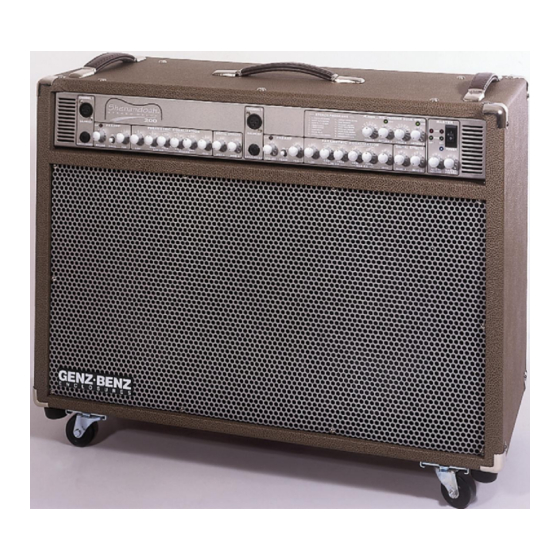

– The Shenandoah Stereo Delux 200™ is a 2 channel – 4 input, 200 watt true
Each channel is equipped with both a ¼" unbalanced line input and an XLR balanced microphone input (with
phantom power). The 2 inputs on each channel are summed (mixed) together at a 1:1 ratio. Each channel then
passes through independent 4 band equalizers with 2 sweep-able midrange frequency bands. This powerful
shaping.
Each channel also contains 2 individual send controls to the dual on-board Alesisä 16 program digital effects circuit.
Flexible signal routing allows full exploitation of the lush stereo programs. The channel signals are then summed
The back panel contains 4 direct balanced outputs with ground lift switch, 4 unbalanced line outputs, 2 effects loops,
tuner out, effects cancel jack, and 4-1/4" speaker jacks.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Genz Benz 200

Summary of Contents for Genz Benz 200

  • Page 1: Owners Manual

    OWNERS MANUAL PRODUCT DESCRIPTION – The Shenandoah Stereo Delux 200™ is a 2 channel – 4 input, 200 watt true Each channel is equipped with both a ¼” unbalanced line input and an XLR balanced microphone input (with phantom power). The 2 inputs on each channel are summed (mixed) together at a 1:1 ratio. Each channel then passes through independent 4 band equalizers with 2 sweep-able midrange frequency bands.
  • Page 2 INPUTS – The Shenandoah™ 200 is equipped with 2 types of input jacks. The ¼” input is unbalanced and “line/ instrument level” with a useable sensitivity from 50 mV to 1 volt. The input impedance is 150 k ohms. The ¼” input will also accept most active balanced line sources, automatically unbalancing them by recognizing the tip portion of interference) to eliminate unwanted noise.
  • Page 3 ACTIVE 4 BAND EQUALIZATION – Each channel of the Shenandoah 200 contains a separate 4 band (with 2 sweepable mids) active equalizer. These equalizers, similar to those found on professional sound consoles, are very useful tools when used correctly. LOW FREQUENCY EQ - The corner frequency of the low frequency section is 85 Hz, with a shelving curve type.

  • Page 4: Power Amplifier

    The XLR balanced direct outputs can be “ground lifted” with the global ground lift switch. This switch lifts pin 1 on all of the XLR balanced outputs to break ground any loops between the Shenandoah™ 200 and a PA system (or recording) console Direct outputs are provided for each channel, pre eq, pre effects, post channel...
  • Page 5 SHENANDOAH™ STEREO DELUX 200 ENGINEERING SPECIFICATIONS INPUTS XLR Balanced channel input impedance: XLR Balanced channel input sensitivity: ¼” Unbalanced channel input impedance: ¼” Unbalanced channel input sensitivity: ¼” Unbalanced aux input impedance: ¼” Unbalanced aux input sensitivity: Phantom power (XLR Inputs)

  • Page 6: Warranty

    3 years. WARRANTY: • Genz Benz Enclosures, Inc. warrants the model Shenandoah 200 to be free from defects in materials and workmanship for a period of 3 years from the date of purchase, when purchased from an authorized Genz Benz dealer.
