INSTALLATION
This section provides installation information for the graphic operator terminal.
2.1
Space Requirements
Installation plate thickness: 1.5 - 7.5 mm (0.06 - 0.3 inch)

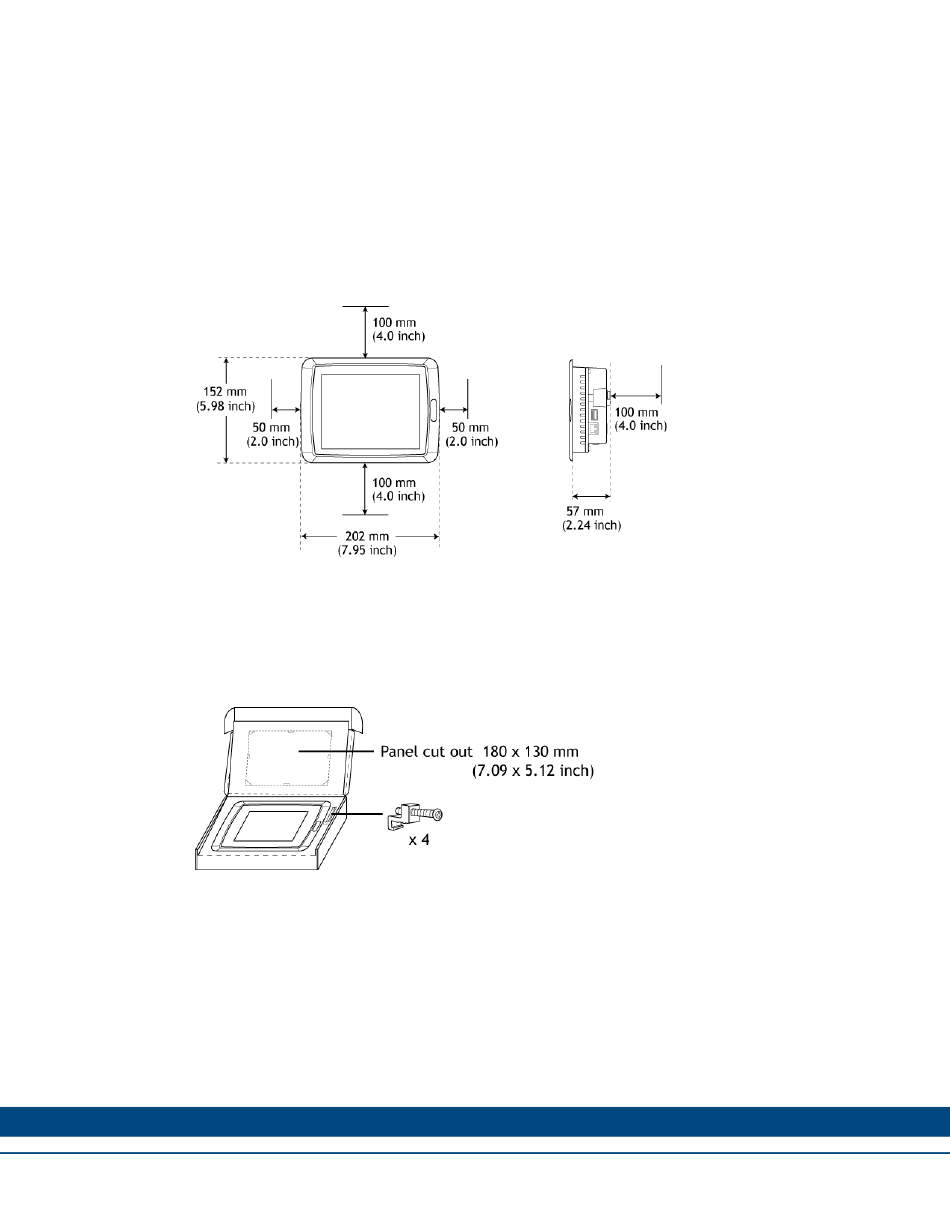

Space requirements when installing the graphic operator terminal:
CAUTION! The openings on the enclosure are for air convection. Do not cover these
openings!
2.2
Installation Process
1. Unpack and check the delivery. If damage is found, contact Kollmorgen.
WARNING! Place the graphic operator terminal on a stable surface during installation.
Dropping it or letting the terminal fall may cause damage.
Graphic Operator Terminal / INSTALLATION
