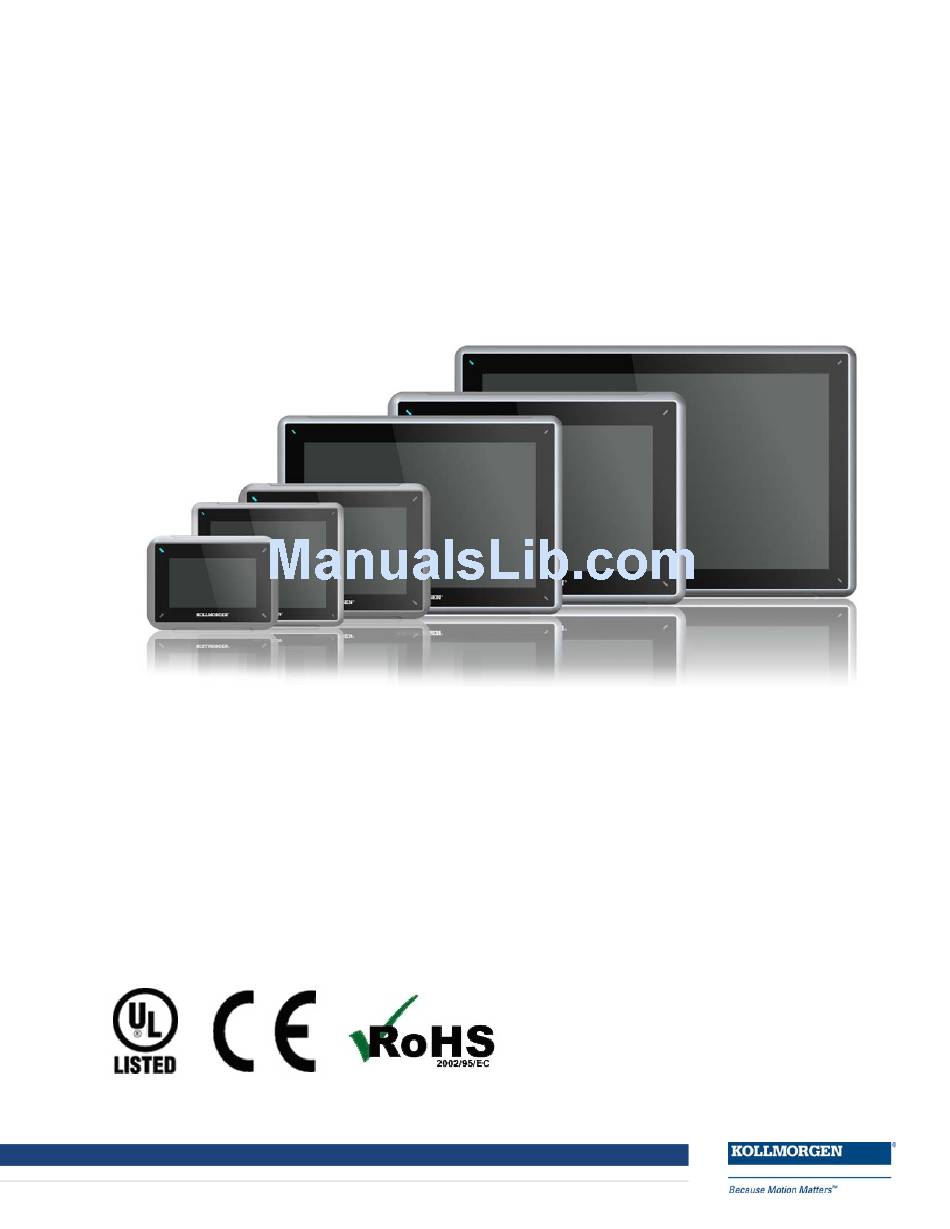

- Page 1 Graphic Operator Terminal Installation Manual Edition A, July 2013 AKI-CDA-MOD-07T 7” Touchscreen HMI Keep all manuals as a product component during the life span of the product. Pass all manuals to future users / owners of the product.
- Page 2 Technical changes which improve the performance of the device may be made without prior notice! Printed in the United States of America. This document is the intellectual property of Kollmorgen™. All rights reserved. No part of this work may be reproduced in any form (by photocopying, microfilm or any other method) or stored, processed, copied or distributed by electronic means without the written permission of Kollmorgen™.
-
Page 3: Table Of Contents
6.3 AKI-CDA-MOD-07T Outline ........ -
Page 4: General
The Advanced Kollmorgen Interfaces works primarily in an object-oriented way, making it easy to understand and use. Configuration is carried out on a PC using the Kollmorgen Visualization Builder configuration tool. The project can then be transferred and stored in the operator panel itself. -
Page 5: Safety Precautions
AKI-CDA-MOD-07T | SAFETY PRECAUTIONS SAFETY PRECAUTIONS Both the installer and the owner and/or operator of the operator panel must read and understand this installation manual. General • Read the safety precautions carefully. • Check the delivery for transportation damage. If damage is found, notify the supplier as soon as possible. -
Page 6: During Installation
AKI-CDA-MOD-07T | SAFETY PRECAUTIONS • For Canada also AVERTISSEMENT – AVANT DE DECONNECTER L’EQUIPEMENT, COUPER LE COURANT OUS’ASSURER QUE L‘EMPLACEMENT EST DESIGNE NON DANGEREUX. Only UL and cUL approved expansion units are allowed to be connected to the port designated “EXPANSION”. At the moment there are no such units evaluated or allowed. -
Page 7: During Use
AKI-CDA-MOD-07T | SAFETY PRECAUTIONS During Use • Keep the operator panel clean. • Emergency stop and other safety functions may not be controlled from the operator panel. • Do not use too much force or sharp objects when touching the keys, touchscreen etc. -
Page 8: Installation
AKI-CDA-MOD-07T | INSTALLATION INSTALLATION Space Requirements • Maximum installation plate thickness: 11 mm • Space requirements in millimeters when installing the operator panel: 100 mm 143 mm 50 mm 50 mm 100 mm 100 mm 204 mm Note: The dimensions on the drawing are not proportional. -
Page 9: Installation Process
AKI-CDA-MOD-07T | INSTALLATION Installation Process The following is needed: • A Phillips/slot screwdriver 1. Unpack and check the delivery. If damage is found, notify the supplier. Note: Place the operator panel on a stable surface during installation. Dropping the panel or letting it fall may cause damage. -
Page 10: Connections To The Controller
AKI-CDA-MOD-07T | INSTALLATION 4. Connect the cables in the specified order, according to the drawing and steps below. Caution: • Ensure that the operator panel and the controller system have the same electrical grounding (reference voltage level), otherwise errors in communication may occur. -
Page 11: Other Connections And Peripherals
AKI-CDA-MOD-07T | INSTALLATION 3.2.2 Other Connections and Peripherals Cables, peripheral equipment and accessories must be suitable for the application and its environment. For further details or recommendations, please refer to the supplier. Kollmorgen | July 2013... -
Page 12: Technical Data
AKI-CDA-MOD-07T | TECHNICAL DATA TECHNICAL DATA Parameter AKI-CDA-MOD-07T Front panel, 204 × 143 × 7 mm W × H × D Cut out dimensions, 187 × 126 mm W × H Mounting depth 43 mm (143 mm including clearance) Standalone VESA 75 ×... - Page 13 AKI-CDA-MOD-07T | TECHNICAL DATA Parameter AKI-CDA-MOD-07T Power supply +24 V DC (18-32 V DC) CE: The power supply must conform with the requirements according to IEC 60950 and IEC 61558-2-4. UL and cUL: The power supply must conform with the requirements for class II power supplies.
-
Page 14: Chemical Resistance
AKI-CDA-MOD-07T | CHEMICAL RESISTANCE CHEMICAL RESISTANCE Metal Casing The frame and casing material is powder-coated aluminum. This powder paint withstands exposure to the following chemicals without visible change: Acetic acid 10% Phosphoric acid 4% Citric acid 10% Phosphoric acid 10%... -
Page 15: Touch Screen And Overlay
AKI-CDA-MOD-07T | CHEMICAL RESISTANCE Touch Screen and Overlay 5.2.1 Autoflex EBA 180L Autoflex EBA 180L covers the overlay surrounding the touch screen. Solvent Resistance Autoflex EBA 180L withstands exposure of more than 24 hours duration under DIN 42 115 Part 2 to... -
Page 16: Autoflex Eba 180L
AKI-CDA-MOD-07T | CHEMICAL RESISTANCE 5.2.3 Autoflex EBA 180L It is recommended to use the Autoflex EBA 180Ltouch display protection film, that can be ordered from Kollmorgen. Solvent Resistance Autoflex EBA 180L withstands exposure to the same chemicals as Autotex F157 or F207 according to section Autoflex EBA... -
Page 17: Operator Panel Drawings
AKI-CDA-MOD-07T | OPERATOR PANEL DRAWINGS OPERATOR PANEL DRAWINGS Connectors COM 1/2 COM 3/4 Pos. Connector Description Power supply +24 V DC (18-32 V DC) COM 1/2 Communication Ports 1 × 10/100 Base-T (shielded RJ-45) COM 3/4 Communication Ports Communication Ports... -
Page 18: Aki-Cda-Mod-07T Outline
AKI-CDA-MOD-07T | OPERATOR PANEL DRAWINGS AKI-CDA-MOD-07T Outline max. 11 mm SD memory USB host card slot Kollmorgen | July 2013... -
Page 19: Additional Installation Tips
AKI-CDA-MOD-07T | ADDITIONAL INSTALLATION TIPS ADDITIONAL INSTALLATION TIPS When experiencing communication problems in for example noisy environments or when operating close to temperature limits, the following recommendations are to be noticed. Grounding the Operator Panel Door Mounting plate in the cabinet... -
Page 20: Ethernet Connection In The Operator Panel
AKI-CDA-MOD-07T | ADDITIONAL INSTALLATION TIPS Ethernet Connection in the Operator Panel Industrial Ethernet RJ45 RJ45 RJ45 RJ45 Operator panel RJ45 Operator panel RJ45 Short and Operator panel unshielded Shielded RJ45 Operator panel RJ45 0.1 μF 250 V In some industrial units for Ethernet, the RJ45 contact’s shield is connected to the chassis via a capacitor, see 1 in drawing above. -
Page 21: To Achieve Better Emc Protection
AKI-CDA-MOD-07T | ADDITIONAL INSTALLATION TIPS To Achieve Better EMC Protection • Initially, use the original cabling from Kollmorgen primarily. • Use shielded cables for RS232 communication. Use twisted pair and shielded cabling for RS422 and RS485. • • Use the cabling intended for the bus type; Ethernet, Profibus, CC-Link, CAN, Device Net etc. -
Page 22: Ambient Temperature
AKI-CDA-MOD-07T | ADDITIONAL INSTALLATION TIPS Ambient Temperature The maximum ambient temperature for the operator panel is provided in the specifications. The ambient temperature refers to the temperature in the device cabinet which cools the operator panel’s electronics. 50 °C inside... -
Page 23: Safety
AKI-CDA-MOD-07T | ADDITIONAL INSTALLATION TIPS Safety Most of the operator panels are fed with 24 V DC. Power supply 230 V AC to 24 V DC Operator panel +24 V Power supply 230 V AC to 24 V DC Operator panel... -
Page 24: Galvanic Isolation
AKI-CDA-MOD-07T | ADDITIONAL INSTALLATION TIPS Galvanic Isolation Internal electronic Ethernet DC/DC galvanic isolation Filter DC/AC +24 V DC 0 V (GND) 1.5 m RS422/485 RS232 The operator panel has galvanic isolation against the 24 V DC feed but no galvanic isolation between the communication ports for RS232, RS422/485 and USB. -
Page 25: Cable And Bus Termination Rs485
AKI-CDA-MOD-07T | ADDITIONAL INSTALLATION TIPS Cable and Bus Termination RS485 • If maximum transfer distance and maximum transfer speed is needed, shielded and twisted pair cable should be used. The mutual capacitance may not exceed 52.5 pF/m, and the cable area should be at least 0.25 mm... - Page 26 About KOLLMORGEN Kollmorgen is a leading provider of motion systems and components for machine builders. Through worldclass knowledge in motion, industry-leading quality and deep expertise in linking and integrating standard and custom products, Kollmorgen delivers breakthrough solutions that are unmatched in performance, reliability and ease-of-use, giving machine builders an irrefutable marketplace advantage.
