Kollmorgen AKI-CDA-MOD-10T Installation Manual

Graphic operator terminal

Advertisement

Quick Links

Graphic Operator Terminal
Installation Manual
Edition B, October 2014
AKI-CDA-MOD-10T 10" Touchscreen HMI
Keep all manuals as a product component during the life span of the product.
Pass all manuals to future users / owners of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AKI-CDA-MOD-10T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kollmorgen AKI-CDA-MOD-10T

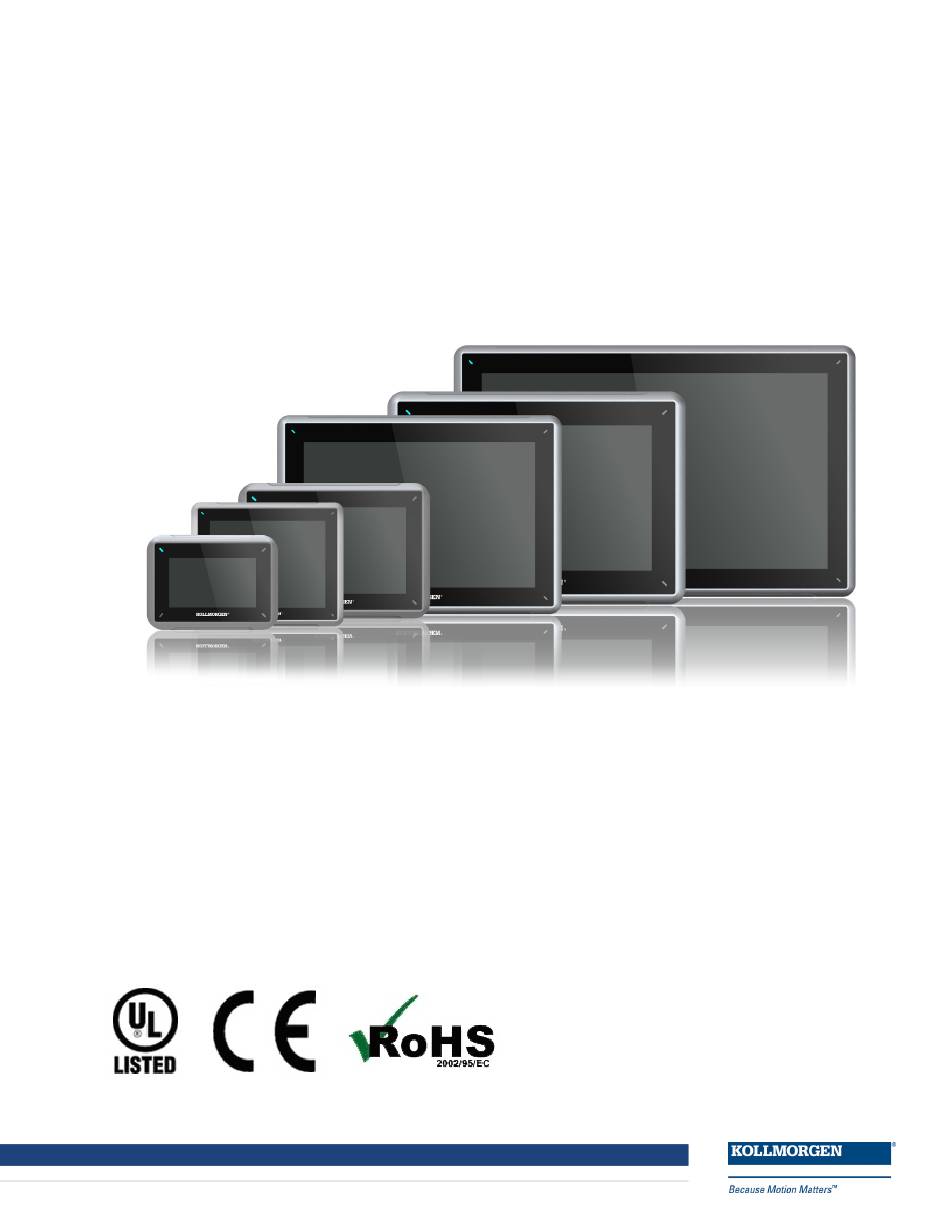

  • Page 1 Graphic Operator Terminal Installation Manual Edition B, October 2014 AKI-CDA-MOD-10T 10” Touchscreen HMI Keep all manuals as a product component during the life span of the product. Pass all manuals to future users / owners of the product.
  • Page 2 Technical changes which improve the performance of the device may be made without prior notice! Printed in the United States of America. This document is the intellectual property of Kollmorgen™. All rights reserved. No part of this work may be reproduced in any form (by photocopying, microfilm or any other method) or stored, processed, copied or distributed by electronic means without the written permission of Kollmorgen™.
  • Page 3: Table Of Contents

    6.3 AKI-CDA-MOD-10T Outline ........
  • Page 4: General

    The Advanced Kollmorgen Interfaces works primarily in an object-oriented way, making it easy to understand and use. Configuration is carried out on a PC using the Kollmorgen Visualization Builder configuration tool. The project can then be transferred and stored in the operator panel itself.
  • Page 5: Safety Precautions

    UL and cUL Installation Caution: This section is only valid for UL labeled AKI-CDA-MOD-10T panels. This equipment is suitable for use in Class 2 non-hazardous locations only. [Combinations of • equipment in your system are subject to investigation by the local authority having jurisdiction at the time of installation].
  • Page 6 AKI-CDA-MOD-10T | SAFETY PRECAUTIONS Only UL and cUL approved expansion units are allowed to be connected to the port designated “EXPANSION”. At the moment there are no such units evaluated or allowed. SEULES LES UNITÉS D'EXTENSION CERTIFIÉES UL ET cUL PEUVENT ÊTRE RACCORDÉES AU PORT DÉSIGNÉ « EXPANSION ».
  • Page 7: During Installation

    AKI-CDA-MOD-10T | SAFETY PRECAUTIONS During Installation The HMI panel is designed for stationary installation on a plane surface, where the following • conditions are fulfilled: no high explosive risks – no strong magnetic fields – no direct sunlight – no large, sudden temperature changes –...
  • Page 8: Installation

    AKI-CDA-MOD-10T | INSTALLATION INSTALLATION Space Requirements • Maximum installation plate thickness: 8 mm • Space requirements in millimeters when installing the operator panel: Note: The dimensions on the drawing are not proportional. Kollmorgen | October 2014...
  • Page 9: Installation Process

    AKI-CDA-MOD-10T | INSTALLATION Installation Process The following is needed: • A Phillips/slot screwdriver 1. Unpack and check the delivery. If damage is found, notify the supplier. Note: Place the HMI panel on a stable surface during installation. Dropping the HMI panel or letting it fall may cause damage.
  • Page 10: Connections To The Controller

    AKI-CDA-MOD-10T | INSTALLATION 4. Connect the cables in the specified order, according to the drawing and steps below. Caution: • The HMI panel must be brought to ambient temperature before it is started up. If condensation forms, ensure that the HMI panel is dry before connecting it to the power outlet.
  • Page 11: Other Connections And Peripherals

    AKI-CDA-MOD-10T | INSTALLATION 3.2.2 Other Connections and Peripherals Cables, peripheral equipment and accessories must be suitable for the application and its environment. For further details or recommendations, please refer to the supplier. Kollmorgen | October 2014...
  • Page 12: Technical Data

    AKI-CDA-MOD-10T | TECHNICAL DATA TECHNICAL DATA Parameter AKI-CDA-MOD-10T Front panel, 280 × 228 × 7 mm W × H × D Cut out dimensions, 262 × 209 mm W × H Mounting depth 44 mm (144 mm including clearance) Standalone VESA 75 ×...
  • Page 13 211.2 × 158.4 mm display, W × H Operating -10 °C to +60 °C temperature Storage temperature -20 °C to +70 °C Relative humidity in <85% non-condensed operation UL approval Yes, for UL labeled AKI-CDA-MOD-10T panels, UL 508 Kollmorgen | October 2014...
  • Page 14: Chemical Resistance

    AKI-CDA-MOD-10T | CHEMICAL RESISTANCE CHEMICAL RESISTANCE Metal Casing The frame and casing material is powder-coated aluminum. This powder paint withstands exposure to the following chemicals without visible change: Acetic acid 10% Phosphoric acid 4% Citric acid 10% Phosphoric acid 10%...
  • Page 15: Touch Screen And Overlay

    AKI-CDA-MOD-10T | CHEMICAL RESISTANCE Touch Screen and Overlay 5.2.1 Autoflex EBA 180L Autoflex EBA 180L covers the overlay surrounding the screen. Solvent Resistance Autoflex EBA 180L withstands exposure of more than 24 hours duration under DIN 42 115 Part 2 to...
  • Page 16: Touchkeyboard And Screen Protection Film

    5.2.3 TouchKeyboard and Screen Protection Film Autoflex EBA 180L It is recommended to use the Autoflex EBA 180L protection film that can be ordered from Kollmorgen. Solvent Resistance The chemical resistance for Autoflex EBA 180L is described in section Autoflex EBA 180L.
  • Page 17: Operator Panel Drawings

    AKI-CDA-MOD-10T | OPERATOR PANEL DRAWINGS OPERATOR PANEL DRAWINGS Connectors COM 1/2 COM 3/4 Pos. Connector Description Power supply +24 V DC (18-32 V DC) COM 1/2 Communication Ports 1 × 10/100 Base-T (shielded RJ45) COM 3/4 Communication Ports Communication Ports...
  • Page 18: Aki-Cda-Mod-10T Outline

    AKI-CDA-MOD-10T | OPERATOR PANEL DRAWINGS AKI-CDA-MOD-10T Outline max. 8 mm SD memory USB host card slot Kollmorgen | October 2014...
  • Page 19: Additional Installation Tips

    AKI-CDA-MOD-10T | ADDITIONAL INSTALLATION TIPS ADDITIONAL INSTALLATION TIPS When experiencing communication problems in for example noisy environments or when operating close to temperature limits, the following recommendations are to be noticed. Grounding the Operator Panel Door Mounting plate in the cabinet...
  • Page 20: Ethernet Connection In The Operator Panel

    AKI-CDA-MOD-10T | ADDITIONAL INSTALLATION TIPS Ethernet Connection in the Operator Panel Industrial Ethernet RJ45 RJ45 RJ45 RJ45 Operator panel RJ45 Operator panel RJ45 Short and Operator panel unshielded Shielded RJ45 Operator panel RJ45 0.1 μF 250 V In some industrial units for Ethernet, the RJ45 contact’s shield is connected to the chassis via a capacitor, see 1 in drawing above.
  • Page 21: To Achieve Better Emc Protection

    AKI-CDA-MOD-10T | ADDITIONAL INSTALLATION TIPS To Achieve Better EMC Protection Use shielded cables for RS232 communication. • • Use twisted pair and shielded cabling for RS422 and RS485. • Use the cabling intended for the bus type; Ethernet, Profibus, CC-Link, CAN, Device Net etc.
  • Page 22: Ambient Temperature

    AKI-CDA-MOD-10T | ADDITIONAL INSTALLATION TIPS Ambient Temperature The maximum ambient temperature for the operator panel is provided in the specifications. The ambient temperature refers to the temperature in the device cabinet which cools the operator panel’s electronics. 50 °C inside...
  • Page 23: Safety

    AKI-CDA-MOD-10T | ADDITIONAL INSTALLATION TIPS Safety Most of the operator panels are fed with 24 V DC. Power supply 230 V AC to 24 V DC Operator panel +24 V Power supply 230 V AC to 24 V DC Operator panel...
  • Page 24: Galvanic Isolation

    AKI-CDA-MOD-10T | ADDITIONAL INSTALLATION TIPS Galvanic Isolation Internal electronic Ethernet DC/DC galvanic isolation Filter DC/AC +24 V DC 0 V (GND) 1.5 m RS422/485 RS232 The operator panel has galvanic isolation against the 24 V DC feed but no galvanic isolation between the communication ports for RS232, RS422/485 and USB.
  • Page 25: Cable And Bus Termination Rs485

    AKI-CDA-MOD-10T | ADDITIONAL INSTALLATION TIPS Cable and Bus Termination RS485 If maximum transfer distance and maximum transfer speed is needed, shielded and twisted pair • cable should be used. The mutual capacitance may not exceed 52.5 pF/m, and the cable area should be at least 0.25 mm...
  • Page 26 5. Press finger on screen again to enter the service menu. The Service Menu displays: Note: Additional information about the Service Menu options are available in the Kollmorgen Visualization Builder (KVB) online help: HMI Panel System Software/Service Menu HMI to PDMM Connection and Programming Modbus TCP is used to communicate from the Ethernet port of an AKI panel to the X32 connector on the top of an AKD PDMM, also referred to as an Ethernet service port.
  • Page 27 KAS IDE by right-clicking on the System option in the Project Explorer and select “Add HMI Device” to display a list of HMI panels that Kollmorgen has available. Double- click on the project to launch KVB and automatically import tags and the target IP address for the KAS controller.
  • Page 28 About KOLLMORGEN Kollmorgen is a leading provider of motion systems and components for machine builders. Through worldclass knowledge in motion, industry-leading quality and deep expertise in linking and integrating standard and custom products, Kollmorgen delivers breakthrough solutions that are unmatched in performance, reliability and ease-of-use, giving machine builders an irrefutable marketplace advantage.
