Genelec 7260A Operating Manual page 14

DSP SUBWOOFERS FEATURES

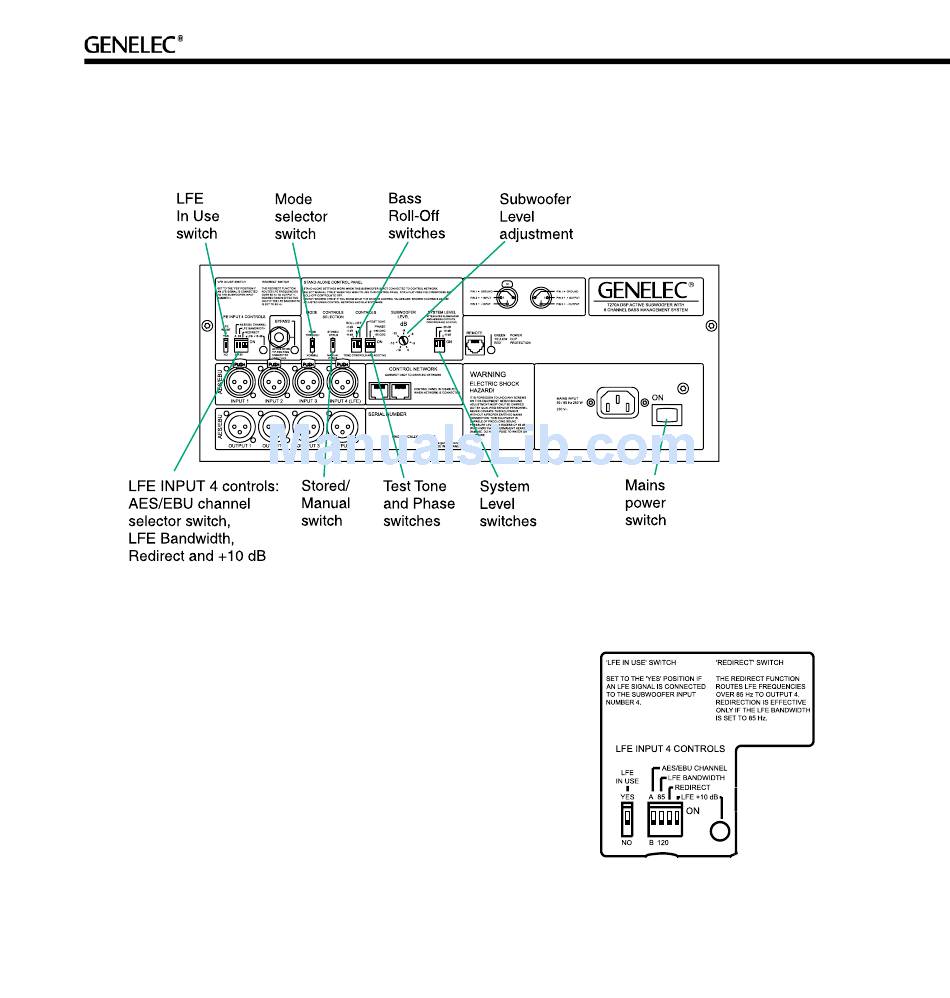

Various controls and switches are accessible on the DSP subwoofer control panel. Let us define and
explain here their use and function (from left to right):
LFE INPUT 4 CONTROLS
LFE in Use
When producing audio content in multichannel audio formats, the use
of the LFE channel is directly linked to the media release format and the
type of production. If in use, the LFE or (.1) channel must be connected
to AES/EBU INPUT 4 and the 'LFE IN USE' switch must be set to YES
position. If no LFE signal is used, the 'LFE IN USE' switch should be set
to NO position. The LFE input (AES/EBU INPUT 4) then operates in the
same way as the other inputs.
When a dual-wire signal is connected, the input changes to dual-wire
mode. In dual-wire mode there is only one channel per cable. If the LFE
signal is connected to INPUT 4 and the LFE signal is a dual-wire signal,
then the AES/EBU CHANNEL" setting (see below) is ignored
14
