CET SM-PFP-25hp-DSL-MR Instruction Manual

SM-PFP-25hp-DSL-MR

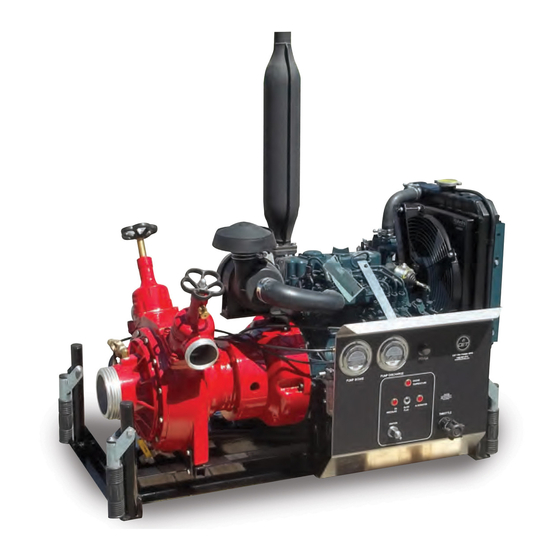

Congratulation, you have just purchased a C.E.T. skid mounted pump. If you follow the procedures
in this operation manual, it will give you years of use without any problems.
ENGINE SPECIFIC TIONS
• D902 Kubota liquid cooled engine.
• 3-cylinder diesel engine
• Electric start.
• Alternator capacity: 12V-40A (480W)
PUMP UNIT SPECIFIC TIONS
• C.E.T. single stage centrifugal pump.
• Pump body made from high resistant aluminum alloy.
• Bronze impellers.
• Mechanical shaft seal.
• Stainless steel pump shaft.
• Electric priming system, guaranteed up to 20' (6 meter) lift.
• One 1 ½" (38 mm) delivery outlet.
• One 2 ½ " (65 mm) suction inlet.
• Dimensions: Length: 29-1/2'' (750 mm);
Width: 26'' (660 mm); Height: 33'' (838 mm)
• Wet weight: 308 lbs (140 kg)
CONTROL P NEL
• Engine start/stop switch.
• Throttle control lever.
• Operating panel light.
• Pilot lights.
• Pressure gauge.
• Vacuum pressure gauge.
• Priming button
PERFORM NCE
MAX FLOW: 320 GPM
315 GPM (1192 LPM) @ 10 PSI (0.68 BAR)
300 GPM (983 LPM) @ 50 PSI (3.45 BAR)
230 GPM (870 LPM) @ 100 PSI (6.89 BAR)
145 GPM (549 LPM) @ 150 PSI (10.34 BAR)
105 GPM (397 LPM) @ 175 PSI (12.07 BAR)
MAX PRESSURE: 185 PSI
Your pump comes with a full year warranty on all mechanical components.
