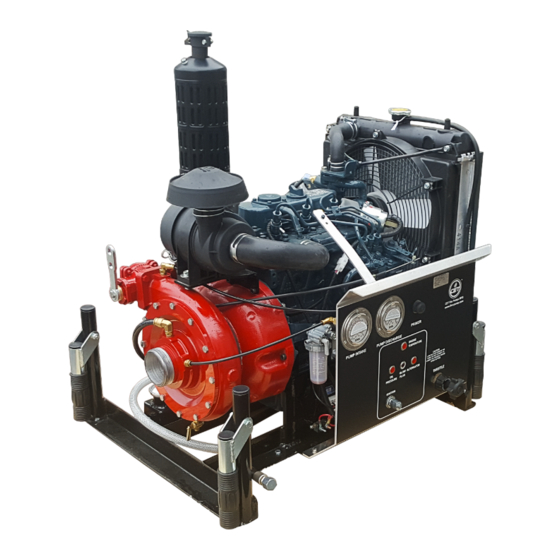

PFP-25hp-DSL
Congratulation, you have just purchased a C.E.T. portable pump. If you follow the procedures in this operation
manual, it will give you years of use without any problems.

ENGINE SPECIFICATIONS

• Kubota 25hp at 3600 RPM, water cooled engine.
• 3-cylinder diesel engine
• Electric start.
• 6 gallons (22 l) detachable fuel tank.

PUMP UNIT SPECIFICATIONS

• C.E.T. two stage centrifugal pump.
• Pump body made from high resistant aluminum alloy.
• Bronze impellers.
• Mechanical shaft seal.
• Stainless steel pump shaft.
• Electric priming system, guaranteed up to 20' (6 meter) lift.
• Two 2
1
/
" (65 mm) delivery outlets.
2
• One 4" (100 mm) suction inlet.
• Dimensions: Length : 40
1
Width : 26" (660 mm); Height : 34
• Weight : 350 lbs. (134 kg).

CONTROL PANEL

• Engine start/stop switch.
• Throttle control lever.
• Operating panel light.
• Pilot lights.
• Pressure gauge.
• Vacuum pressure gauge.

PERFORMANCE

465 GPM (1760 LPM) @ 10 PSI (0.7 bar)
425 GPM (1608 LPM) @ 25 PSI (1.7 bar)
325 GPM (1230 LPM) @ 50 PSI (3.5 bar)
200 GPM (757 LPM)
@ 100 PSI (6.9 bar)
100 GPM (378 LPM)
@ 125 PSI (8.6 bar)
30 GPM (113 LPM)
@ 150 PSI (10.3 bar)
Your pump comes with a full year warranty on all mechanical components.
ACCEP T ONL Y THE BEST
/
" (1022 mm);
4
1
/
" (870 mm).
4
75 Hector St., P.O. Box 90, Pierreville (Québec) Canada J0G 1J0 Telephone: 1-800-567-2719 Fax: 1-800-434-2613
A C E N T U R Y O F ENGINEERING FOR THE B R AV E S T
INSTRUCTIONS MANUAL
www.fire-pump.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PFP-25HP-DSL-MR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CET PFP-25HP-DSL-MR

  • Page 1 PFP-25hp-DSL INSTRUCTIONS MANUAL Congratulation, you have just purchased a C.E.T. portable pump. If you follow the procedures in this operation manual, it will give you years of use without any problems. ENGINE SPECIFICATIONS • Kubota 25hp at 3600 RPM, water cooled engine. •...
  • Page 2 PFP-25hp-DSL INSTRUCTIONS MANUAL DOS AND DONTS Do... • Read your Kubota D902 owner’s manual • Close your drain valve on the pump casing before starting the engine • Seal up any air that could leak into the suction side • Charge you battery at least once every three months •...
  • Page 3 PFP-25hp-DSL INSTRUCTIONS MANUAL TROUBLESHOOTING Before calling us, try the following if your pump does not operate properly. If the electric primer does not work properly. • Check the casing drain valve, it should be closed. • Check the primer valve, it should be opened. •...
  • Page 4 INTERPRETATION CET shall not be liable for transportation charges either in shipment to or by it and shall not be liable for loss of use, or consequential damage of any kind in connection with the sales, alteration, repair or replacement of any equipment or part thereof. Liability under this warranty is limited to replacement or repair and in any event shall not exceed the purchase price paid.
