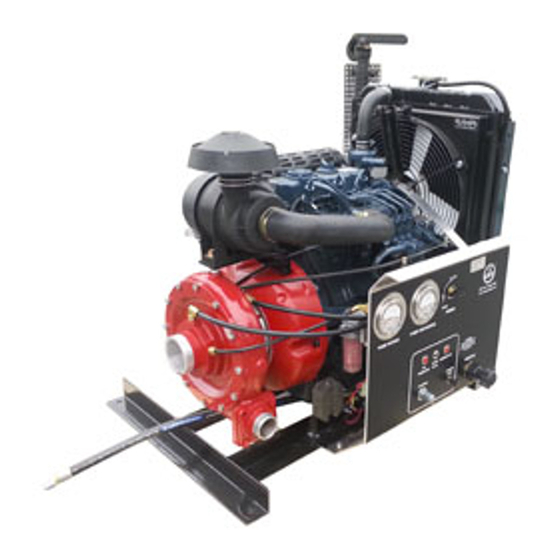

SM-PFP-21hpDSL-MR
Congratulation, you have just purchased a C.E.T. portable pump. If you follow the procedures in this
operation manual, it will give you years of use without any problems.

ENGINE SPECIFICATIONS

• D722 Kubota liquid cooled engine
• 3-cylinder, 4-stroke diesel engine
• 12V Electric start.
• Alternator capacity: 12V-12.5A (150W)

PUMP UNIT SPECIFICATIONS

• C.E.T. single stage centrifugal pump.
• Pump body made from resistant aluminum alloy.
• Bronze impellers.
• Steel pump shaft.
• Mechanical shaft seal.
• Stainless steel pump shaft.
• Exhaust priming system, guaranteed up to 15' (4.6 meter) lift.
• One 1 1/2" (38 mm) delivery outlet.
• One 2 1/2 " (65 mm) suction inlet.
• Dimensions : Length 31 1/2'' (800 mm); Width : 26'' (660 mm); Height : 31 1/2'' (800 mm).
• Weight : 282 lbs (128 kg).
• Two-years warranty.

CONTROL PANEL

• Engine ignition switch
• Throttle control vernier
• Operating panel light
• Pilot lights
• Inlet and outlet pressure gauges
• Priming valve
• Engine stop knob

INCLUDED ACCESSORIES

• Quick connect for 12-V battery

PERFORMANCE

MAX FLOW: 300 GPM (1136 LPM)
MAX PRESSURE: 190 PSI (13.1 BAR)
250 GPM (947 LPM) @ 50 PSI (3.5 BAR)
160 GPM (606 LPM) @ 100 PSI (6.9 BAR)
90 GPM (340 LPM) @ 150 PSI (10.3 BAR)
Your pump comes with a full year warranty on all mechanical components.
ACCEPT ONLY THE BEST
75 Hector St., P.O. Box 90, Pierreville (Québec) Canada J0G 1J0
A C E N T U R Y O F E N G I N E E R I N G F O R T H E B R AV E S T
INSTRUCTIONS MANUAL
Telephone: 1-800-567-2719
Fax: 1-800-434-2613
www.fire-pump.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-PFP-21hpDSL-MR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CET SM-PFP-21hpDSL-MR

  • Page 1 SM-PFP-21hpDSL-MR INSTRUCTIONS MANUAL Congratulation, you have just purchased a C.E.T. portable pump. If you follow the procedures in this operation manual, it will give you years of use without any problems. ENGINE SPECIFICATIONS • D722 Kubota liquid cooled engine • 3-cylinder, 4-stroke diesel engine •...
  • Page 2 SM-PFP-21hpDSL-MR INSTRUCTIONS MANUAL DOS AND DONTS Do… • Read your owner’s manual. • Close your drain valve on the pump casing before starting the engine. • Seal up any air that could leak into the suction side. • Charge you battery at least once every three months.
  • Page 3 INSTRUCTIONS MANUAL IMPORTANT NOTICE - FRESH WATER FLUSH AFTER EVERY USE After Operating a CET Pump, it is critical to FRESH WATER FLUSH the pump at the end of use before restoring it as a good damage control practice. If the pump has been used to pump seawater, the seawater must be drained from the pump by opening the pump casing drain valve.
  • Page 4 INTERPRETATION CET shall not be liable for transportation charges either in shipment to or by it and shall not be liable for loss of use, or consequential damage of any kind in connection with the sales, alteration, repair or replacement of any equipment or part thereof. Liability under this warranty is limited to replacement or repair and in any event shall not exceed the purchase price paid.
