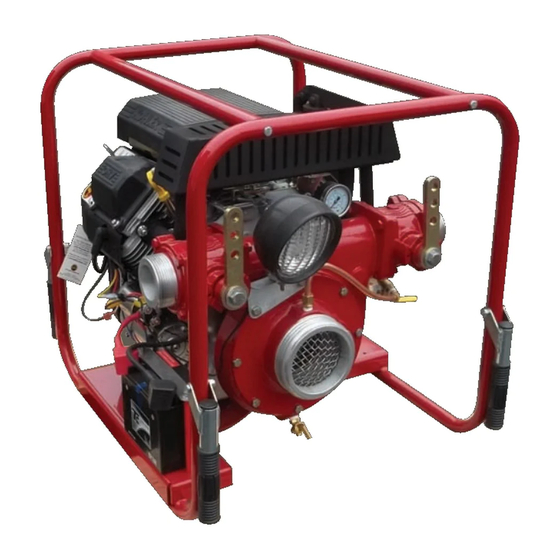

PFP-20hpKHL-2D
Congratulation, you have just purchased a C.E.T. portable pump. If you follow the procedures in this
operation manual, it will give you years of use without any problems.
ENGINE SPECIFIC TIONS
• Kohler 20hp at 3600 RPM, air cooled engine.
• V-Twin cylinder gasoline engine.
• Electric start with recoil start as backup.
• 6 gallon (22 l) detachable fuel tank.
PUMP UNIT SPECIFIC TIONS
• C.E.T. single stage centrifugal pump.
• Pump body made from high resistant aluminum alloy.
• Bronze impeller.
• Mechanical shaft seal.
• Exhaust priming system, guaranteed up to 20' (6 meter) lift.
• Two 2 1/2" (65 mm) delivery outlet with 1/4-turn ball valve.
• One 4 " (100 mm) suction inlet.
• Dimensions : Length : 25" (661 mm); Width : 22" (508 mm); Height : 23" (559 mm).
• Weight : 190 lbs (86 kg).
INCLUDED
CCESSORIES
• Swivel spotlight.
• 180 watt alternator.
• Pressure gauge.
• 12-V battery.
PERFORM NCE
580 GPM (2192 LPM) @ 10 PSI (0.7 bar)
510 GPM (1928 LPM) @ 25 PSI (1.7 bar)
400 GPM (1512 LPM) @ 50 PSI (3.5 bar)
195 GPM (737 LPM) @ 75 PSI (5.2 bar)
105 GPM (397 LPM) @ 100 PSI (6.9 bar)
60 GPM
(227 LPM) @ 125 PSI (8.6 bar)
Your pump comes with a full year warranty on all mechanical components.
ACCEPT ONLY THE BEST
75 Hector St., P.O. Box 90, Pierreville (Québec) Canada J0G 1J0
A C E N T U R Y O F E N G I N E E R I N G F O R T H E B R AV E S T
INSTRUCTIONS M NU L
Telephone: 1-800-567-2719
Fax: 1-800-434-2613
www.fire-pump.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PFP-20HPKHL-2D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CET PFP-20HPKHL-2D

  • Page 1 PFP-20hpKHL-2D INSTRUCTIONS M NU L Congratulation, you have just purchased a C.E.T. portable pump. If you follow the procedures in this operation manual, it will give you years of use without any problems. ENGINE SPECIFIC TIONS • Kohler 20hp at 3600 RPM, air cooled engine.
  • Page 2 PFP-20hpKHL-2D INSTRUCTIONS M NU L ND DONTS Do… • Read your Kohler owner’s manual • Close your drain valve on the pump casing before starting the engine • Seal up any air that could leak into the suction side • Charge you battery at least once every three months •...
  • Page 3 IMPORT NT NOTICE - FRESH W TER FLUSH FTER EVERY USE After Operating a CET Pump, it is critical to FRESH WATER FLUSH the pump at the end of use before restoring it as a good damage control practice. If the pump has been used to pump seawater, the seawater must be drained from the pump by opening the pump casing drain valve.
  • Page 4 INTERPRETATION CET shall not be liable for transportation charges either in shipment to or by it and shall not be liable for loss of use, or consequential damage of any kind in connection with the sales, alteration, repair or replacement of any equipment or part thereof. Liability under this warranty is limited to replacement or repair and in any event shall not exceed the purchase price paid.
