CET PFP-9hpHND-EM-Twin Instruction Manual

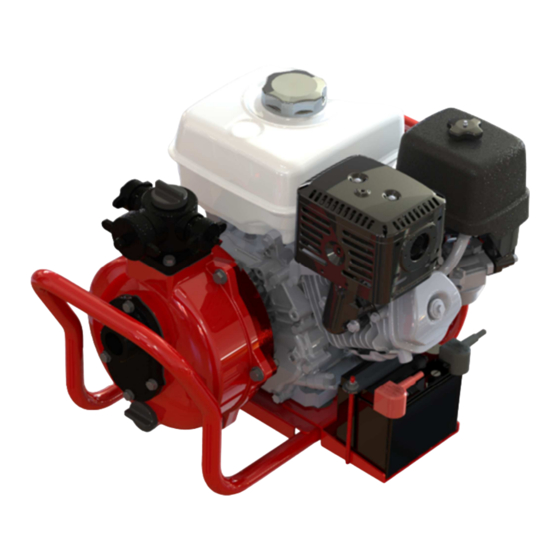

PFP-9hpHND-EM-Twin
Congratulation, you have just purchased a C.E.T. portable pump. If you follow the procedures in this
operation manual, it will give you years of use without any problems.
ENGINE SPECIFIC TIONS
• Honda 9hp at 3600 RPM GX270, air cooled engine.
• Single cylinder gasoline engine.
• 12V electric start with recoil start as backup.
• 1.5 gallon (5.7 l) integrated fuel tank.
PUMP UNIT SPECIFIC TIONS
• C.E.T. dual stage centrifugal pump.
• Pump body made from aluminum.
• Aluminum impeller.
• Mechanical shaft seal.
• Self-priming system.
• Two 1" (25 mm) delivery outlets and one 1 1/2" (38mm) NPSH delivery outlet.
• One 1 1/2 " (38 mm) NPSH suction inlet.
• Dimensions : Length : 20" (508 mm); Width : 17" (432 mm); Height : 17" (432 mm).
• Weight (approx.) : 71 lbs (32 kg).
INCLUDED CCESSORIES
• Low oil alert.
• 36 watts alternator.
PERFORM NCE
100 GPM (378 LPM) @ 10 PSI (0.7 bar)
80 GPM (302 LPM) @ 25 PSI (1.7 bar)
70 GPM (265 LPM) @ 50 PSI (3.5 bar)
50 GPM (189 LPM) @ 100 PSI (6.9 bar)
20 GPM (76 LPM) @ 125 PSI (8.6 bar)
Your pump comes with a full year warranty on all mechanical components.
DOS ND DONTS
Do...
• Read your Honda owner's manual
• Close your drain valve on the pump casing before starting the engine
• Seal up any air that could leak into the suction side
• Stop your pump before fuelling
Do Not...
• Let your pump freeze up with water in it (drain the casing )
• Allow sand in the suction, it will damage the wear ring and the mechanical seal (use floating strainer if water supply doubtful)
• Run your pump dry for more than 2 minutes at idle (prime as soon as possible)
• Use your pump with less than 12 in of water below the inlet of the suction hose
• Allow your pump to run without surveillance
• Run the pump with the discharge closed for more than 1 minute
