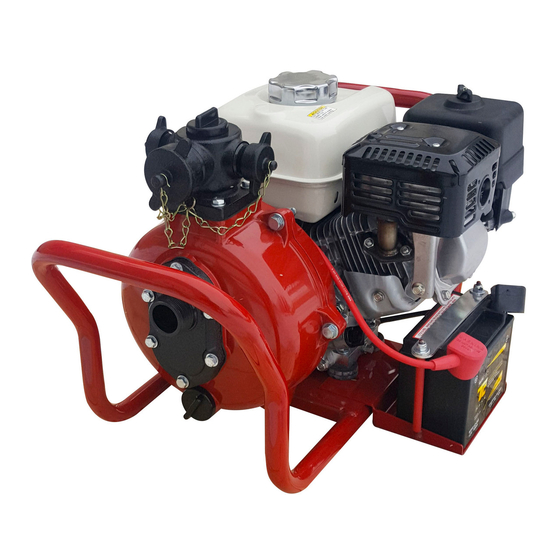

CET SM-PFP-6hpHND-EM-TWIN Instruction Manual

SM-PFP-6hpHND-EM-TWIN
Congratulation, you have just purchased a C.E.T. portable pump. If you follow the procedures in this
operation manual, it will give you years of use without any problems.

ENGINE SPECIFICATIONS

• GX200 Honda air cooled engine
• Single cylinder, 4-stroke gasoline engine
• 12V electric start with recoil start as backup
• 0.8 gallon (3.1 l) Integrated fuel tank
• Charge coil 12V-1A

PUMP UNIT SPECIFICATIONS

• C.E.T. dual stage centrifugal pump.
• Pump body made from aluminum.
• Aluminum impeller.
• Mechanical shaft seal.
• Self-priming system.
• Two 1" (25 mm) delivery outlets and one 1 1/2" (38mm) NPSH delivery outlet.
• One 1 1/2 " (38 mm) NPSH suction inlet.
• Dimensions: Length: 20'' (508 mm); Width: 20'' (508 mm); Height: 17 1/2'' (445 mm)
• Wet weight: 83 lbs (38 kg)

INCLUDED ACCESSORIES

• Low oil alert.

PERFORMANCE

MAX FLOW: 75 GPM (284 LPM)
MAX PRESSURE: 140 PSI (9.6 BAR)
70 GPM (265 LPM) @ 10 PSI (0.7 BAR)
65 GPM (246 LPM) @ 50 PSI (3.4 BAR)
45 GPM (170 LPM) @ 100 PSI (6.9 BAR)
35 GPM (132 GPM) @ 125 PSI (8.6 BAR)

DOS AND DONTS

Do...
• Read your Honda owner's manual
• Close your drain valve on the pump casing before starting the engine
• Seal up any air that could leak into the suction side
• Stop your pump before fuelling
Do Not...
• Let your pump freeze up with water in it (drain the casing)
• Allow sand in the suction, it will damage the wear ring and the mechanical seal (use floating strainer if water supply doubtful)
• Run your pump dry for more than 2 minutes at idle (prime as soon as possible)
• Use your pump with less than 12 in of water below the inlet of the suction hose
• Allow your pump to run without surveillance
• Run the pump with the discharge closed for more than 1 minute
ACCEPT ONLY THE BEST
75 Hector St., P.O. Box 90, Pierreville (Québec) Canada J0G 1J0
A C E N T U R Y O F E N G I N E E R I N G F O R T H E B R AV E S T
INSTRUCTIONS MANUAL
Telephone: 1-800-567-2719 Fax: 1-800-434-2613 www.fire-pump.com
