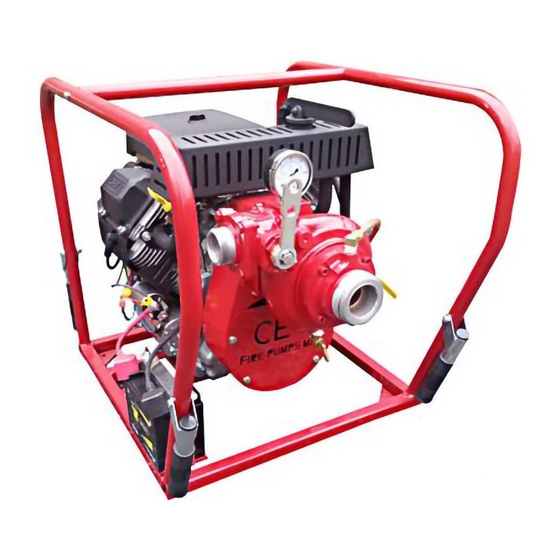

CET PFP-20hp-KHL-HP Instruction Manual

PFP-20hp-KHL-HP
Congratulation, you have just purchased a C.E.T. portable pump. If you follow the procedures in this
operation manual, it will give you years of use without any problems.
ENGINE SPECIFIC TIONS
• Kohler 20hp at 3600 RPM, air cooled engine.
• V-Twin cylinder gasoline engine.
• 12V Electric start with recoil start as backup.
• 6 gallon (22 l) detachable fuel tank. The fuel tank is made from plastic.
PUMP UNIT SPECIFIC TIONS
• Transmission drive C.E.T. single stage centrifugal pump.
• Pump body made from resistant aluminum alloy.
• Bronze impeller.
• Mechanical shaft seal.
• Stainless steel pump shaft.
• Belt drive transmission.
• Exhaust priming system, guaranteed up to 15' (4.5 meter) lift.
• One 1 1/2" (38 mm) delivery outlet with 1/4-turn ball valve.
• One 2 1/2 " (65 mm) suction inlet.
• Dimensions : Length : 22" (558 mm); Width : 25" (635 mm); Height : 23" (584 mm).
• Weight : 180 lbs (81 kg).
INCLUDED CCESSORIES
• 36 watt alternator.
• Low oil alert.
• Pressure gauge.
• 12-V battery.
PERFORM NCE
160 GPM (605 LPM) @ 50 PSI (3.5 bar)
125 GPM (473 LPM) @ 100 PSI (6.9 bar)
90 GPM (340 LPM) @ 150 PSI (10.3 bar)
60 GPM (227 LPM) @ 200 PSI (13.8 bar)
30 GPM (113 LPM) @ 250 PSI (17.2 bar)
Your pump comes with a full year warranty on all mechanical components.
ACCEPT ONLY THE BEST 75 Hector St., P.O. Box 90, Pierreville (Québec) Canada J0G 1J0
A C E N T U R Y O F E N G I N E E R I N G F O R T H E B R AV E S T
INSTRUCTIONS M NU L
Telephone: 1-800-567-2719 Fax: 1-800-434-2613 www.fire-pump.com
