Schematic, PCB Layout, and Bill of Materials
www.ti.com

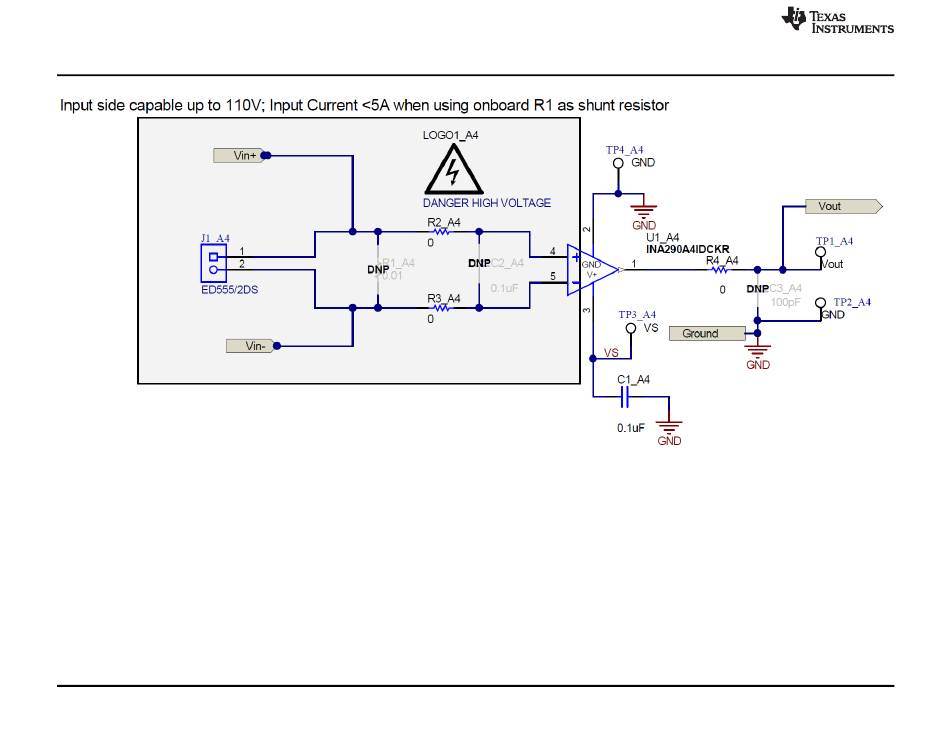

Figure 4. INA290EVM Schematic: Gain A4 Panel
12
INA290EVM
SBOU230 – October 2019
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
