Leviton IUM1H Quick Start Manual

WARNINGS:

• TO AVOID FIRE SHOCK OR DEATH TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT POWER IS OFF BEFORE WIRING.
• TO BE INSTALLED AND/OR USED IN ACCORDANCE WITH APPROPRIATE ELECTRICAL CODES AND REGULATIONS.
1.
Insert plugs and attach mounting tabs.
Cat. No. IUM1H-KBG is shown.
NOTE: No back box is inlcuded with Cat. No. IUM1H-KRG
proceed to step 3.
3.
Install GFCI.
NOTE: Follow GFCI instruction sheet for wiring instructions.
Leave GFCI mounting screws 3/8" out for cover installation.
5.
Install insert.
1.
Insert plugs and attach mounting tabs.
Cat. No. IUM1H-KBV is shown.
NOTE: No back box is inlcuded with
Cat. No. IUM1H-KRV proceed to step 3.

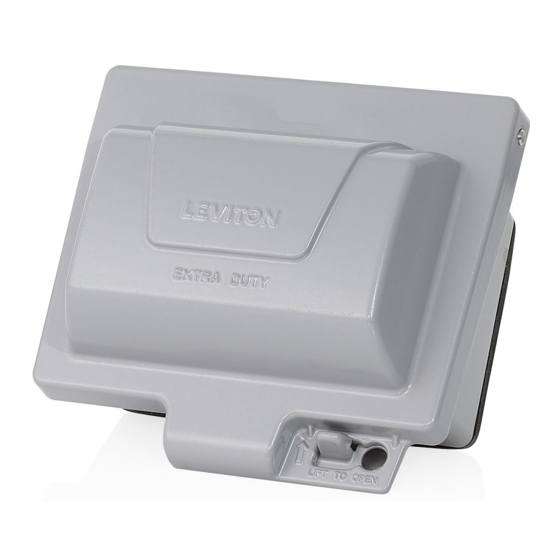

While-In-Use Metal Cover
One Gang - Horizontal and Vertical Mount - Extra Duty
Cat. Nos. IUM1H, IUM1V

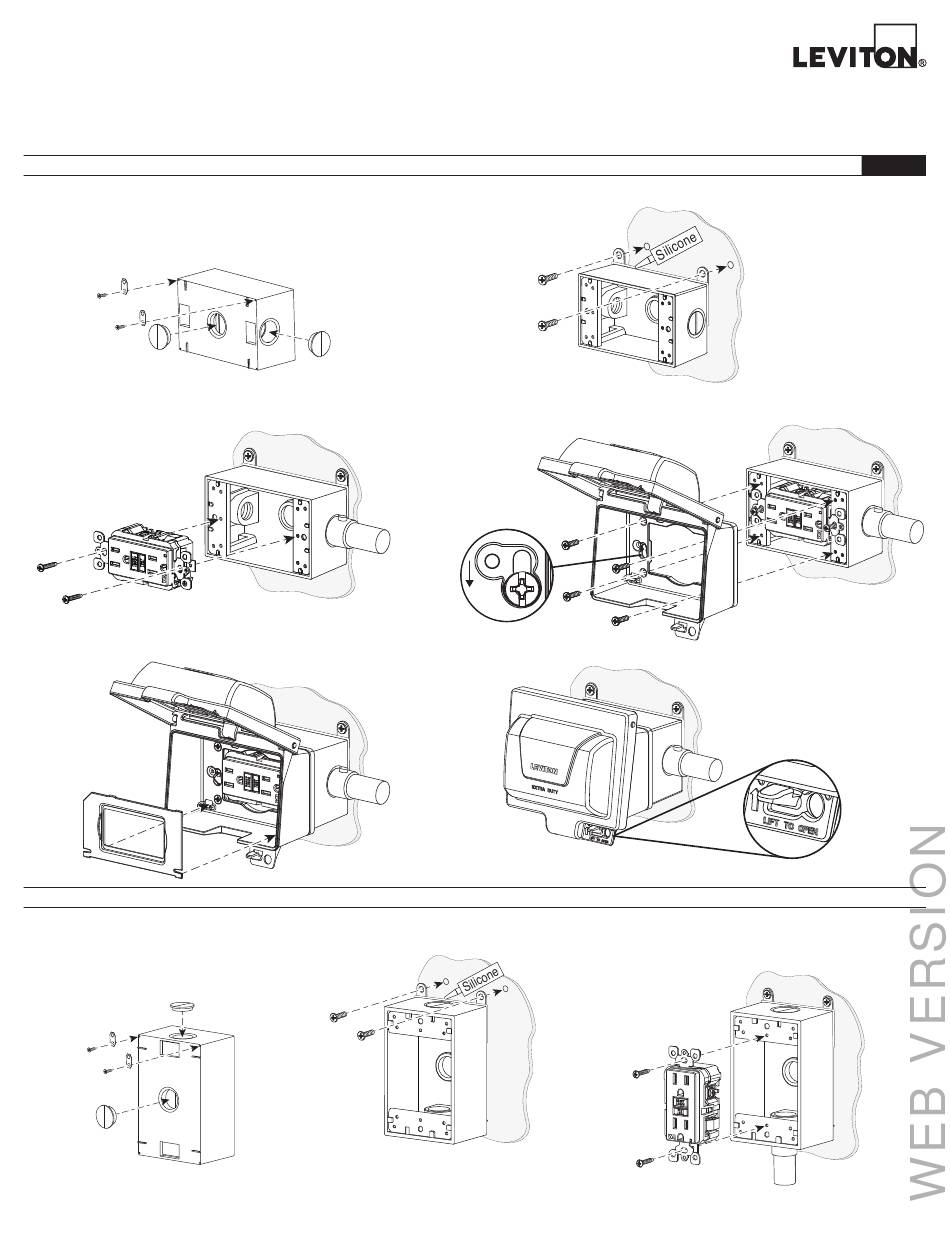

HORIZONTAL MOUNT INSTALLATION

VERTICAL MOUNT INSTALLATION

2.
Mount box.
2.
Mount box.
4.
a. Mount cover onto 2 mounting screws and tighten in place.
b. Attach cover onto backbox with screws (4).
a.
b.
6.
Lift to Open.
3.
Install GFCI.
NOTE: Follow GFCI instruction sheet for wiring instructions.
Leave GFCI mounting screws 3/8" out for cover installation.
