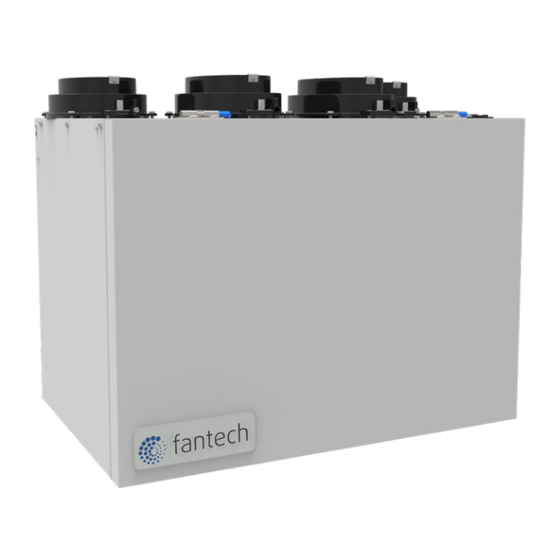

VER100
Energy Recovery Ventilator
Your ventilation system should be installed in conformance with the appropriate provincial/state requirements or, in the
absence of such requirements, with the current edition of the National Building Code, and / or ASHRAE's "Good Engineering
Practices".
United States
10048 Industrial Blvd., Lenexa, KS, 66215
Tel.: 800.747.1762 • Fax: 800.487.9915
Canada
50 Kanalflakt Way, Bouctouche, NB, E4S 3M5
Tel.: 800.565.3548 • Fax: 877.747.8116
Fantech reserves the right to modify, at any time and without notice, any or all of its products' features, designs,
components and specifications to maintain their technological leadership position.
Please visit our website www.fantech.net for more detailed technical information.
Installation Manual
Item #: 428465
Rev Date: 2018-09-25
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SystemAir Fantech VER100
Summary of Contents for SystemAir Fantech VER100
- Page 1 Item #: 428465 Rev Date: 2018-09-25 Installation Manual VER100 Energy Recovery Ventilator Your ventilation system should be installed in conformance with the appropriate provincial/state requirements or, in the absence of such requirements, with the current edition of the National Building Code, and / or ASHRAE’s “Good Engineering Practices”.
- Page 2 Note Warning/ Information Technical Practical tip Important information note PLEASE READ ND SAVE THESE INSTRUCTIONS Before installation careful consideration must be given to how this system will operate if connected to any other piece of mechanical equipment, i.e. a forced air furnace or air handler operating at a higher static pressure.
-
Page 3: Table Of Contents
TABLE OF CONTENTS DETERMINING YOUR AIRFLOW REQUIREMENT ........... . . 4 INSTALLATION EXAMPLES Fully dedicated system . -
Page 4: Determining Your Airflow Requirement
DETERMINING YOUR AIRFLOW REQUIREMENT Room Count Method Room classification Number of rooms CFM (L/s) CFM Required Master bedroom x 10 L/s (20 CFM) if yes add 10 L/s (20 CFM) Basement yes or no if no = 0 Bedrooms x 5 L/s (10 CFM) Living room x 5 L/s (10 CFM) Others... -
Page 5: Installation Examples
INSTALLATION EXAMPLES Suggested installation for: Example only – duct configuration may differ depending on the model. • Hydronic baseboard • Infloor heating FULLY DEDICATED SYSTEM • Electric baseboard BEST FOR NEW CONSTRUCTION • Mini split heat pump Benefits: Provides the best fresh air distribution in the Stale air is drawn from key areas of the home requiring local exhaust house;... -
Page 6: Partially Dedicated System
INSTALLATION EXAMPLES (CONT'D) Suggested installation for: • Central furnace (air DIRECT CONNECTION of the FRESH air to living area to the RETURN PLENUM handling unit or central of the AIR HANDLER (Stale air drawn from key areas of home) air conditioners) •... -
Page 7: Simplified Installation
INSTALLATION EXAMPLES (CONT'D) Suggested installation for: DIRECT CONNECTION of both the ERV SUPPLY AIR STREAM and EXHAUST AIR STREAM • When bathroom and kitchen to the FURNACE COLD AIR RETURN already have local exhaust SIMPLIFIED INSTALLATION (GOOD) system (RETURN/RETURN METHOD) - OPTION 1 •... -
Page 8: Option 1
Installation examples (Cont'd) Suggested installation for: DIRECT CONNECTION of the ERV SUPPLY AIR STREAM to the SUPPLY AIR SIDE on the • When bathroom and FURNACE & EXHAUST AIR STREAM to the FURNACE COLD AIR RETURN kitchen already have local exhaust system SIMPLIFIED INSTALLATION (GOOD) •... -
Page 9: Exterior Ducting Installation
EXTERIOR DUCTING INSTALLATION WEATHERHOOD LOCATION OUTSIDE CORNER INSIDE CORNER • Decide where your intake and exhaust hoods will be located. 36" (1m) 36” (1m) min. min. Locating the Intake Weatherhood • Should be located upstream (if there are prevailing winds) from the 6' (2m) exhaust outlet. -
Page 10: Interior Ducting Installation
INTERIOR DUCTING INSTALLATION • To maximize airflow through the ductwork system, all ducts should be kept short and have as few bends or elbows as possible. • 45º elbows are preferable to 90º. • Use “Y“ ducts instead of “T” ducts whenever possible. •... -
Page 11: Erv Installation
ERV INSTALLATION LOCATION The ERV must be located in a conditioned space where it will be possible to conveniently service the unit. Typically the ERV would be located in the mechanical room or an area close to the outside wall where the weatherhoods will be mounted. - Page 12 Mounting- Chain mount Optional 2 Attach a hanging chain 3 Hang the unit by slipping 4 Install a spring on each 1 Place fastening hooks on (provided) to each 19 mm a link onto the hanging chain. Hook the spring the strapping board or (3/4") bolt (provided) in the hooks, making sure the...
-
Page 13: Airflow Adjustment & Balancing
AIRFLOW ADJUSTMENT & BALANCING BALANCING THE AIRFLOWS IS CRUCIAL TO ENSURE OPTIMAL OPERATION OF THE UNIT. IF THE AIRFLOW IS NOT PROPERLY BALANCED, THE FOLLOWING ISSUES MAY OCCUR: • SIGNIFICANT POSITIVE OR NEGATIVE PRESSURE INSIDE THE HOUSE • UNIT’S EFFICIENCY MAY BE NEGATIVELY AFFECTED •... -
Page 14: Balancing Steps
BALANCING STEPS Use balancing chart located on the BALANCING CHART (example only) door of the ERV Airflow Normal Speed Reduced Speed ∆In W.G. ∆In W.G. STEP #1: Identify the desired airflow using the provided chart. From ∆Pa ∆Pa Pressure reading Pressure reading the desired airflow (left column) identify the pressure reading 0.36... -
Page 15: Low Voltage Control Systems
Low Voltage Control Systems * Please see instruction manuals for individual controls for proper wiring and set up of control systems. CENTRAL CONTROLS These control options can only be used individually Ensure that unit is not CONTROLS FEATURES CONNECT TO plugged when connecting ECO-Touch®... -
Page 16: Wiring Diagram
WIRING DIAGRAM fantech... - Page 17 WIRING DIAGRAM (CONT'D) WIRING DIAGRAM TO Standard Accessory Control Contact Standard Furnace Interlock Wiring FURNACE THERMOSTAT TERMINALS FOUR WIRE TWO WIRE heating only FOR A FURNACE CONNECTION TO A COOLING SYSTEM: On some newer furnaces and older FURNACE thermostats, energizing the R and 24-VOLT TERMINAL BLOCK G terminal at the furnace has the...
-
Page 18: Troubleshooting
TROUBLESHOOTING Problem Causes Solutions Air is too dry Dehumidistat control is set too low Increase the desired level of humidity. Change ventilation mode from continuous mode to standby. ERV out of balance Have contractor balance ERV airflows Air is too humid Dehumidistat control is set too high Reduce the desired level of humidity. -
Page 19: Erv Maintenance Chart
ERV MAINTENANCE CHART Limited Warranty • The Energy recovery core has limited 5 year warranty. Maintenance Required Recommended Frequency Date Maintenance Performed Check and Clean Filters Every 3 months or if • The warranty is limited to 5 years on parts and 7 years on fans from the dirty date of purchase, including parts... -
Page 20: Erv Core Washing Instructions
ERV core washing instructions For proper maintenance of your energy recovery core please follow these instructions Remove both filters by sliding them out. Remove the core from the unit. With one of your core's air inlets facing down, place it in a large sink, bathtub, or shower. -
Page 21: Parts List
Parts list VER 100 BOM # Description (463235) R2E 175 Radical, Rep. Kit 428469 Electrostatic Filters Kit 405577 Heat Recovery Cell 8.5” x 8.5” x 12” 427928 Capacitors 6uF 411222 Kit,PCB Replacement,Board,AC 428252 Door Switch 410867 Auto-Transformer 411963 Control Switch 410213 Kit Drain Plug 40315... - Page 22 Notes fantech...
- Page 23 Notes fantech...
- Page 24 Fantech reserves the right to make technical changes. Fantech se réserve le droit de faire des changements tech- For updated documentation please refer to www.fantech.net niques. Pour de la documentation à jour, s'il vous plaît se référer au www.fantech.net Fantech®...
