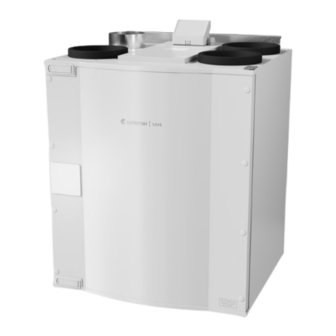

SAVE VTC 200
GB
Installation instructions
Document in original language | 254294 · v01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAVE VTC 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SystemAir SAVE VTC 200

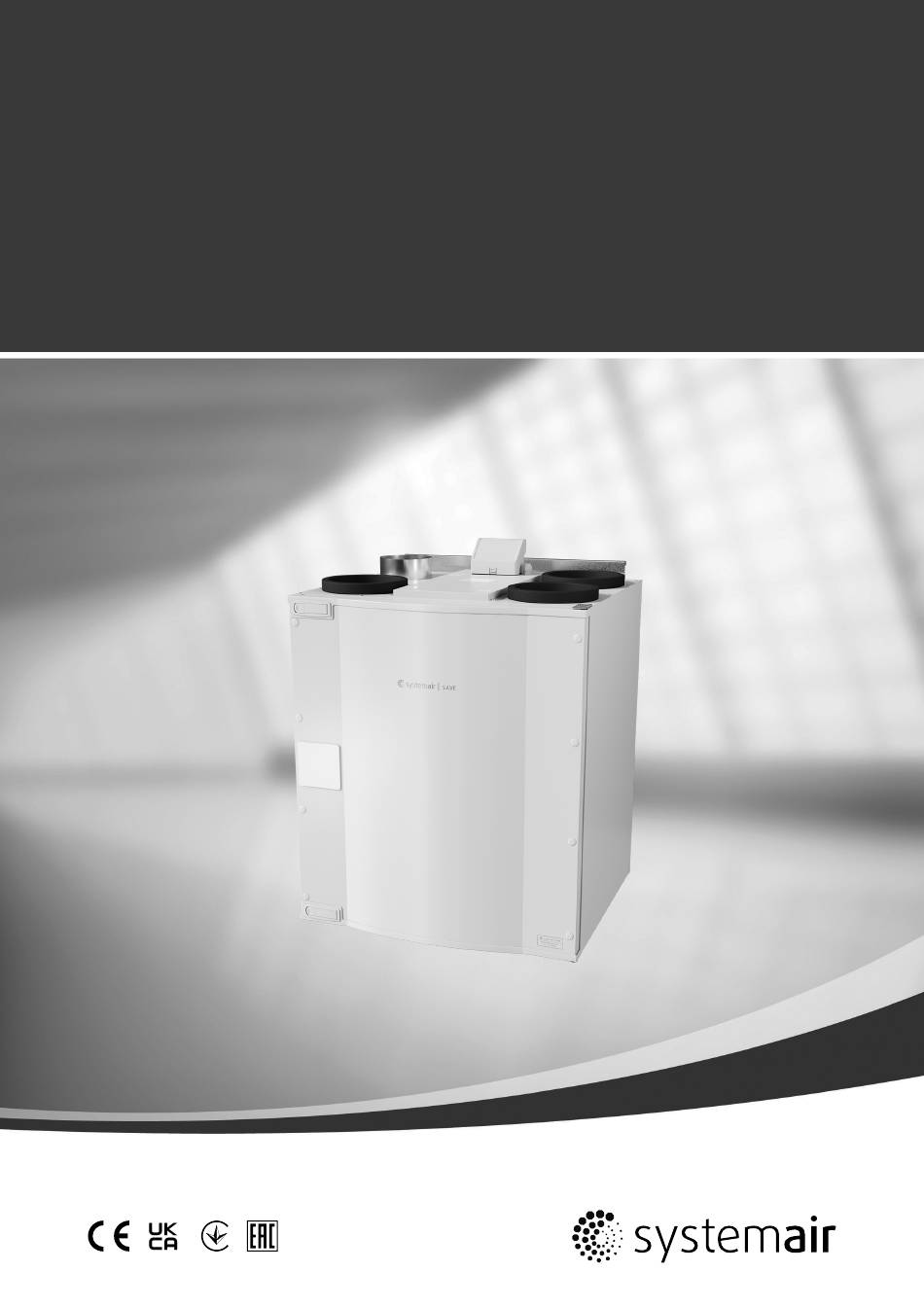

  • Page 1 SAVE VTC 200 Installation instructions Document in original language | 254294 · v01...
  • Page 2 This also applies to products already ordered, as long as it does not affect the previously agreed specifications. Systemair is not liable or bound by warranty if these instructions are not adhered to during installation or service. 254294 | v01...
  • Page 3: Table Of Contents

    Contents Overview ............1 12 EU Declaration of Conformity ......13 General Description ........1 Warranty ..........1 Type label..........1 Important Safety Information ......1 Intended Use.........1 Admonitions .........2 Technical Data ..........2 Dimensions and Weight ......3 Connections Left and Right models.....4 Installation recommendation regarding condensation ........4 3.3.1 Condensation inside of the...
  • Page 5: Overview

    For the assertion of warranty claims, the products must be correctly connected and operated, and used in accordance with the data sheets. Further prerequisites are a completed maintenance plan with no gaps and a commissioning re- port. Systemair will require these in the case of a warranty claim. Type label Before calling your service representative, make a note of the specification and production number from the type label, which can be found next to the external connections and inside of the unit.
  • Page 6: Admonitions

    | Technical Data • The system should operate continuously, and only be stopped for maintenance/service. • Do not connect tumble dryers to the ventilation system. • Make sure that filters are mounted before starting the unit. Admonitions Danger • Make sure that the mains supply to the unit is disconnected before performing any maintenance or electrical work! •...
  • Page 7: Dimensions And Weight

    Technical Data | Dimensions and Weight Fig. 2 Dimensions of left hand unit * Height with mounting bracket. ** Drainage The unit weight is 47 kg. 254294 | v01...
  • Page 8: Connections Left And Right Models

    | Technical Data The hatch can be lifted off by loosening a screw at the bottom of the unit. Connections Left and Right models Fig. 3 Duct connections Position Description Right hand model (Supply air connection is situated on the right hand side of the unit viewed from the front) Left hand model (Supply air connection panel is situated on the left hand side of the unit viewed from the front)
  • Page 9: Condensation Outside Of The Unit

    Transport and storage The SAVE VTC 200 should be stored and transported in such a way that it is protected against physical damage. It should be covered so dust, rain and snow cannot enter and damage the unit and its components.
  • Page 10: Prerequisites For Installation

    Access to Power supply The SAVE VTC 200 is supplied with approximately 1,5 m cable and plug for 230V, single phase earthed connection. Make sure a power outlet is reachable by the plug.
  • Page 11 Installation | C — concrete/bricks, W — wood block, G — gypsum, M — mineral wool X* — adaptable height according to needs. Make sure the mounting bracket is completely level. 254294 | v01...
  • Page 12: Condensation Drainage

    | Installation Follow the ventilation drawing when connecting the unit to the duct system. Condensation drainage Depending on the relative humidity in the extract air, condensation may occur on the cold surfaces of the unit. The con- densate water is led out through the drainage (exhaust air side) situated on the bottom of the unit. A one meter hose with 13 mm (½″) connection and a hose clamp are included at delivery.
  • Page 13: Installation And Configuration Of Accessories

    Please follow instructions included with the accessory or consult “Service and Accessories Installation” manual which can be found in our online catalogue. Electrical connections Main circuit board layout The SAVE VTC 200 is equipped with built-in regulation and internal wiring. Fig. 5 Main circuit board connections Position Description...
  • Page 14: External Connections (Connection Board)

    | Before Starting the System Position Description Analog output 1 — Rotary heat exchanger control signal (for VSR, VTR type models) / Damper control signal (for VTC, VSC type models), UI6 — Bypass damper feedback signal (for VTC, VSC type models) Terminals for speed control of extract air fan Terminals for speed control of supply air fan External connections (Connection board)
  • Page 15: Commissioning

    Commissioning | • Outdoor air intake is positioned with sufficient distance to pollution sources (kitchen ventilator exhaust, central vac- uum system exhaust or similar) • All external equipment is connected • The unit is correctly wired Commissioning Follow the first startup instructions and fill in the Commissioning record as you go through the settings. The Startup Wizard cannot be skipped.
  • Page 16: Concluding Routines

    | Concluding Routines Concluding Routines Perform the following procedures before leaving the site: 1. Ensure that the product is operational and that no alarms are active. 2. If applicable, save the configuration backup. 3. Make sure that the Commissioning record is complete. 4.
  • Page 17 The manufacturer hereby confirms that EN 61000-6-2 SAVE VTC 200 Electromagnetic compatibility (EMC) – Part 6-2: Generic standards – Immunity for industrial environments. comply with all applicable requirements in the following directives and regulations.
  • Page 18 Systemair UAB Linų st. 101 LT–20174 Ukmergė, LITHUANIA Phone +370 340 60165 Fax +370 340 60166 www.systemair.com...
