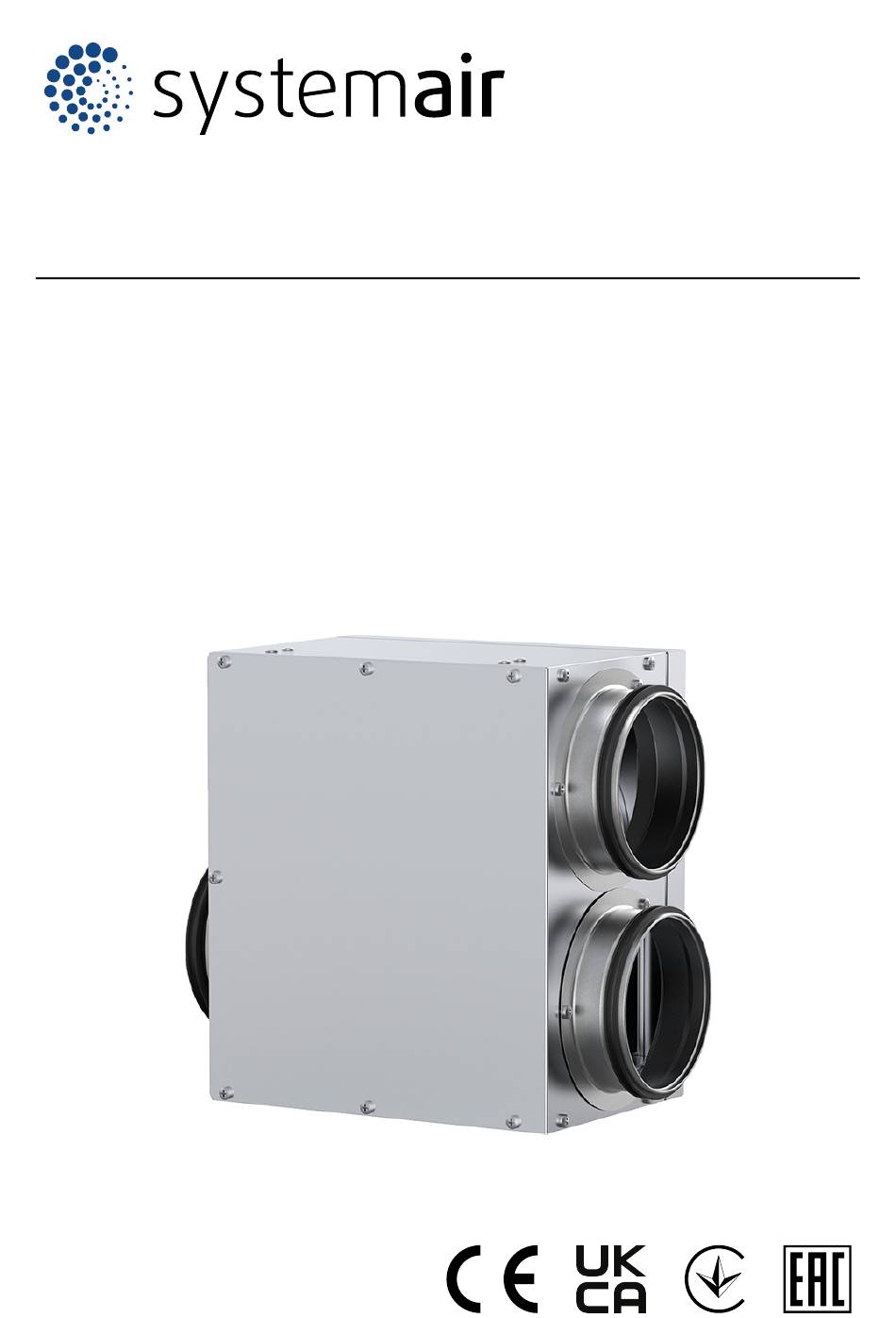

- Page 1 Installation, Operation and Maintenance Instructions VEF-2 AC Extract air fan...
-
Page 2: Table Of Contents
Table of contents 1 Introduction ............1 Product description ........1 Intended use ..........1 Document description........1 Product overview......... 1 Name plate ..........1 Product liability..........1 2 Safety ..............2 Safety definitions ......... 2 Safety instructions ........2 Personal protective equipment ....... -
Page 3: Introduction
• The product is used together with accessories that are not original accessories from Systemair. Fan motor Cover Plug for the cooker hood Use a mobile device to scan the scannable code and go to the Systemair documentation portal for more documentation and document translations. -
Page 4: Safety
• If the maintenance is not correctly and regularly done, there is risk of injury and damage to the product. • Only do the maintenance as given in this manual. Speak to Systemair technical support if other servicing is necessary. • Always use spare parts from Systemair. -
Page 5: Transportation And Storage
Transportation and Installation storage To do before the installation of the product Warning • Examine the packaging for transportation damage and re- Make sure that the product does not move the packaging from the product carefully. become damaged or wet during transportation. - Page 6 Caution Make sure the rotating parts have come to a complete standstill before you do the maintenance. Install four mounting brackets and attach two anti-vibra- tion pads. Mark the installation position on the wall. If the product is installed together with a cooker hood, make sure that the distance between the cooker hood and the product is minimum 120 mm.
-
Page 7: Electrical Connection
Electrical connection Commissioning To do before the electrical To do before the connection commissioning • Make sure that the installation and electrical connection Warning are correctly done. Remove the plug from the power outlet to • Visually examine the product and accessories for damage. disconnect the power before any mainte- •... -
Page 8: Operation
The serial number is found on the name plate. • For more information about spare parts, contact technical support. • Always use spare parts from Systemair. • To find spare parts, refer to the scannable code on the name plate. Maintenance schedule Clean the product when necessary, but at least one time per year. - Page 9 Disconnect the product from the power supply. Remove four screws near the corners. Remove the cover. Clean any dust or dirt. Use vacuum cleaner and moist cloth. Use cloth or a soft brush to clean the fans. White spirit can be used to remove obstinate settlements. Make sure the fans are dry before installation.
-
Page 10: Troubleshooting
Troubleshooting Note: If you cannot find a solution to your problem, speak to Systemair technical support. Problem Cause Solution The fan does not work. Power supply cable of the fan is Make sure the fan cable is connected. disconnected. Speak to Systemair technical support. -
Page 11: Technical Data
Technical data 11.1 Product dimensions 11.2 Performance curves m³/h... -
Page 12: Eu Declaration Of Conformity
EN 13142 Product Extract fan Ventilation for buildings. designation Components/products for residential ventilation. Required and Type/Model VEF-2 AC optional performance characteristics fulfils the relevant provisions of following directives and standards Person authorized to compile the technical file: Machinery EN ISO 12100:2013... - Page 14 © Copyright Systemair AB All rights reserved Systemair AB reserves the rights to alter their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications. Document in original language...
