13

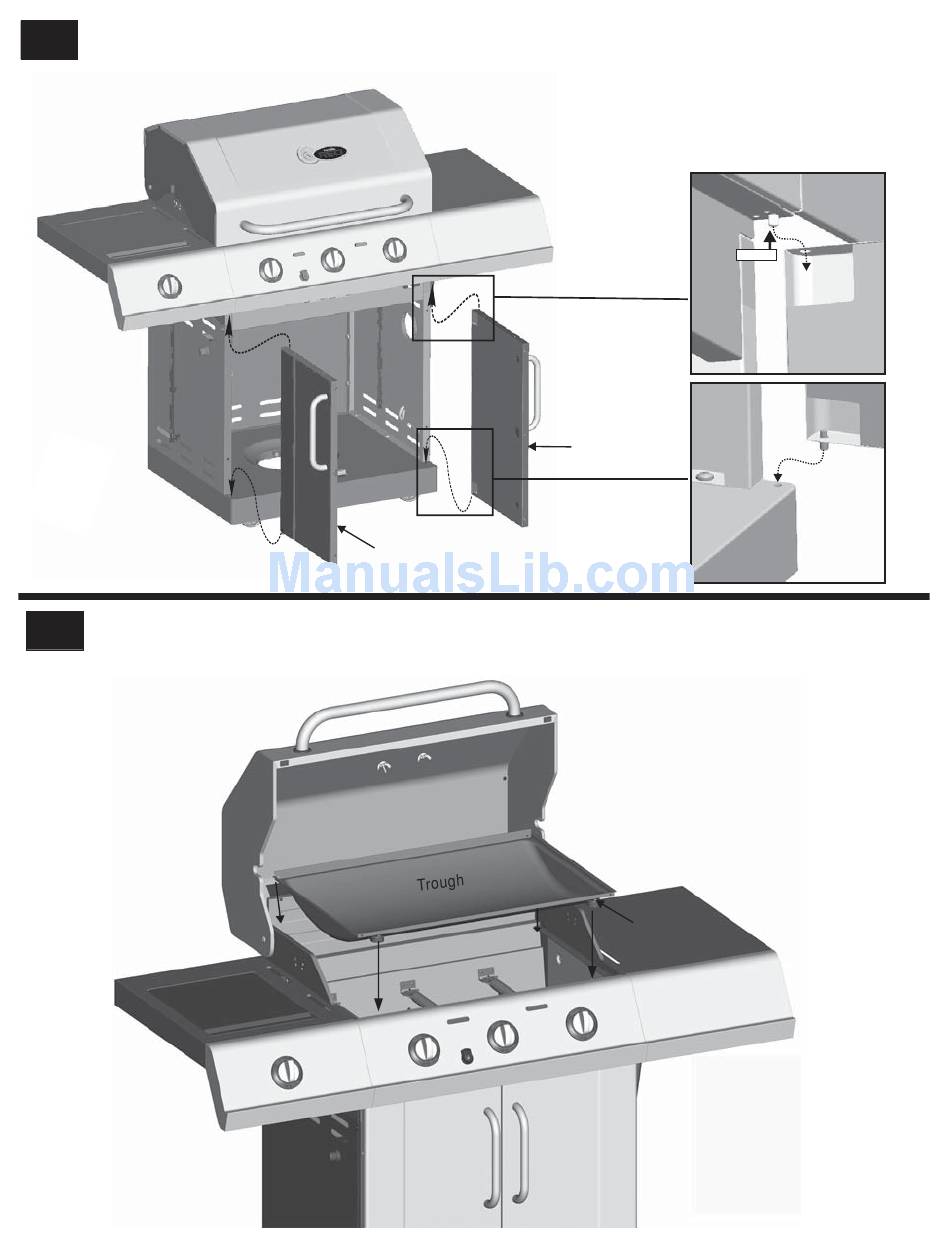

Insert the pin on bottom of doors into hole in bottom shelf. Press upper hinge pin in front brace, align hinge hole on top of
door, and release hinge pin into door.
14
Place trough into fire box. Align pins at front of trough with the holes at front of fire box.
Left door
PRESS
Right door
Trough pin
Top of
door
pin
on bottom
of door
