PRODUCT GUIDE

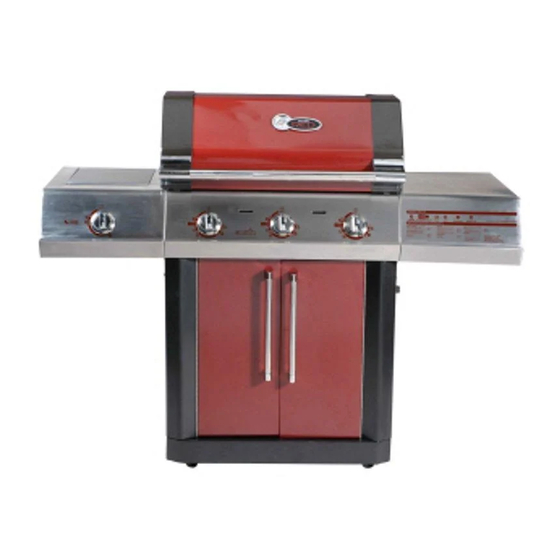

MODEL 463250110
See rating label on grill for serial number.
For support and to register your
grill, please visit us at
www.charbroil.com
If you have questions or need
assistance during assembly,
please call 1-888-430-7870.
Estimated assembly time: 30 minutes
Assembly instructions © 2009
08/13/09 • G511-001-030801
