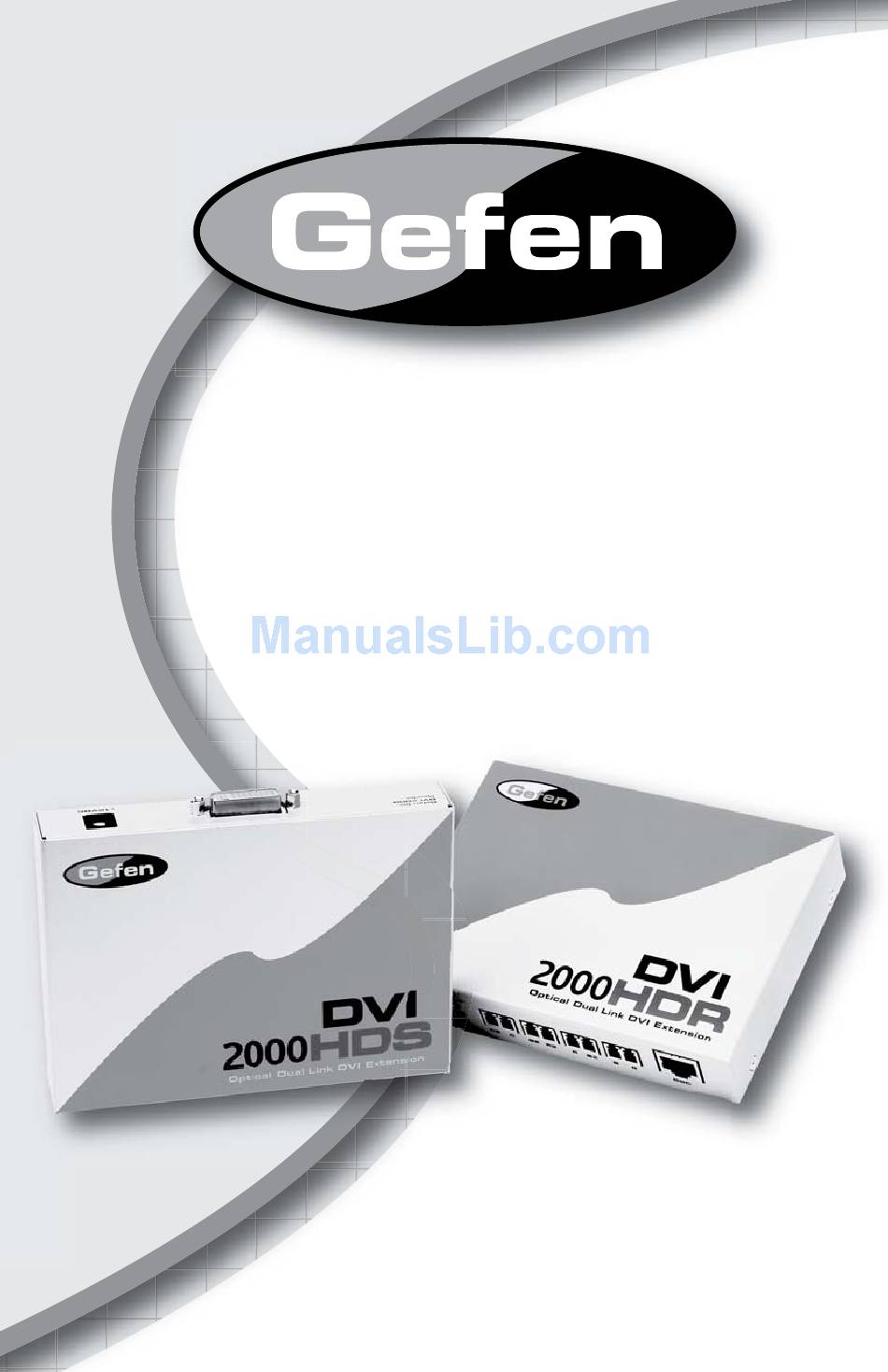

- Page 1 DVI•2000HD U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. The DVI•2000 is a trademark of Gefen Inc. © 2008 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
Introduction Operation Notes Features Sender Panel Layout Receiver Panel Layout Connecting And Operating The DVI•2000HD Network Cable Wiring Diagram Specifi cations Warranty CONTENTS... -
Page 4: Introduction
Congratulations on your purchase of the DVI•2000HD. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. -
Page 5: Operation Notes
READ THESE NOTES BEFORE INSTALLING OR OPERATING THE DVI•2000HD • The fi ber optics cable must be treated carefully when connectors are ex- posed. They are susceptible to dust which can contribute to loss of pixels. • The DVI•2000 works for all DVI displays and supports resolutions up to 3840x2400. -
Page 6: Features
Features • Extends any dual link DVI compliant device up to 1640 (500 meters) feet from the computer • Uses an 8 strand multimode LC-LC fi ber optic cable • Uses one CAT-5e cable for DDC and control signals • Support HDTV resolutions •... -
Page 7: Sender Panel Layout
SENDER PANEL LAYOUT Front Panel Power Connector DVI In Back Panel Power LED indicates the unit is powered HDCP & DDC Hot Plug Detect Blue 1 Red 1 Clock 2 Green 2 Signals Green 1 Blue 2 Status LED indicates Clock 1 Red 2 a link between the... -
Page 8: Receiver Panel Layout
RECEIVER PANEL LAYOUT Front Panel Power Connector DVI Out Back Panel Power LED indicates the unit is powered Green 1 HDCP & DDC Blue 2 Hot Plug Detect Clock 1 Red 2 Signals Blue 1 Green 2 Red 1 Clock 2 Status LED indicates a link between the sender and receiver... -
Page 9: Connecting And Operating The Dvi•2000Hd
CONNECTING AND OPERATING THE DVI•2000HD How to Connect the DVI•2000HD Connect the DVI•2000 sender unit to the DVI source using the supplied cables. Connect the DVI•2000 receiver unit to your DVI display. Connect the eight fi ber optics and one CAT5 cable between the sender and receiver. -
Page 10: Network Cable Wiring Diagram
Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance. -
Page 11: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ... 2x 165 MHz Input Video Signal ... 1.2 Volts p-p Input DDC Signal ... 5 Volts p-p (TTL) Dual Link Range ... 3840 x 2400 DVI Input/Output Connector Type ... DVI-D Link Connector ... RJ-45 Power Consumption ...
