T5
ORIGINAL
INSTRUCTIONS
E
2
V
Please read these instructions before use.
Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.

Advertisement

Table of Contents
loading
Need help?

Need help?

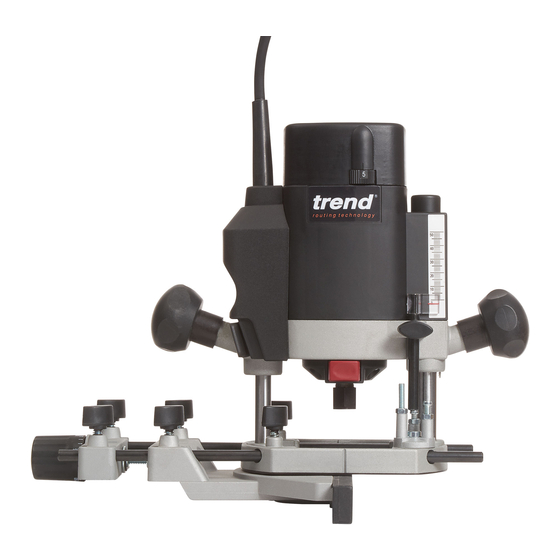

Do you have a question about the T5E and is the answer not in the manual?

Questions and answers

Summary of Contents for TREND T5E

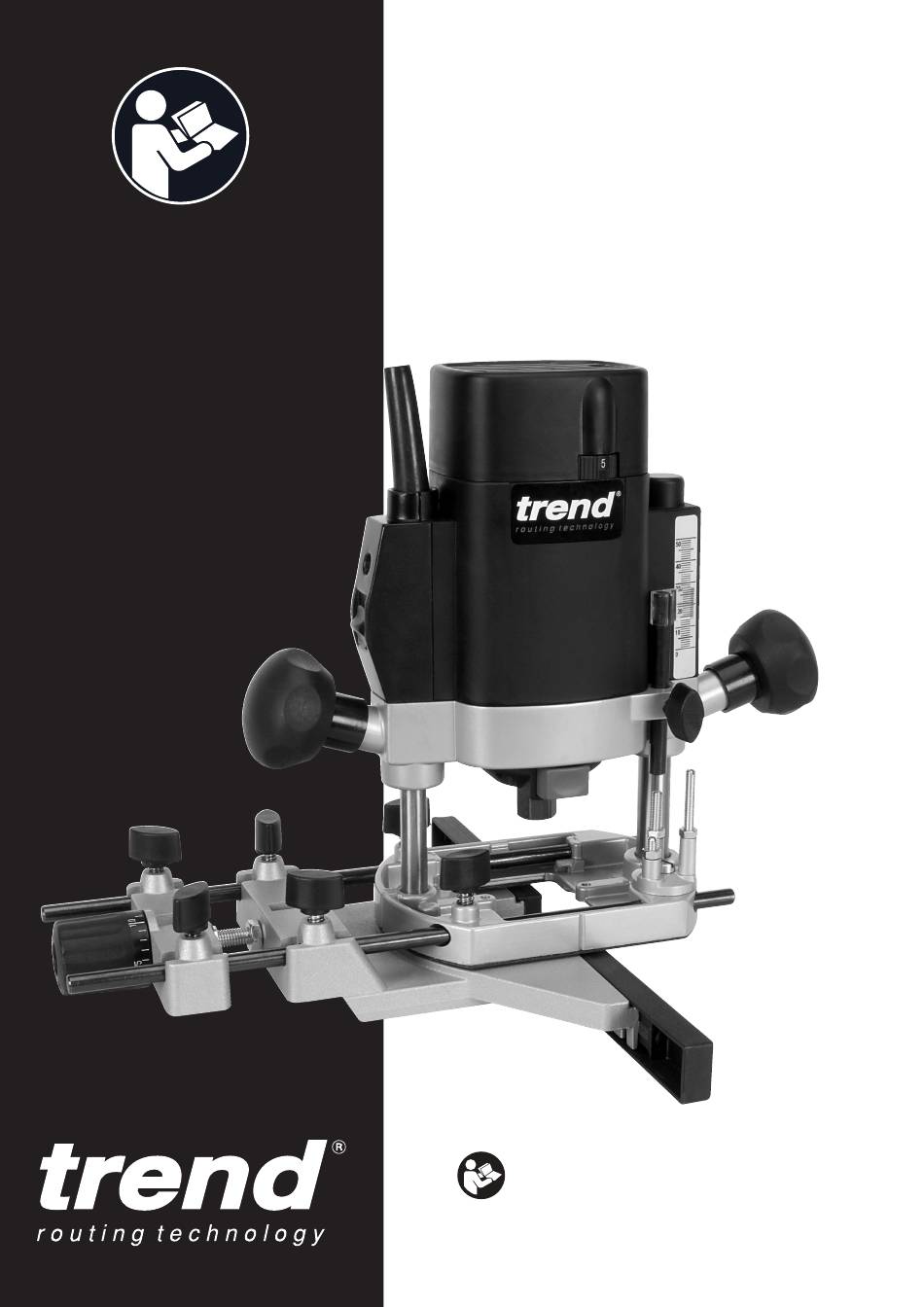

  • Page 1 ORIGINAL INSTRUCTIONS Please read these instructions before use. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
  • Page 2: Table Of Contents

    Definitions: Safety Guidelines Dear Customer Thank you for purchasing this Trend product, The definitions below describe the level of we hope you enjoy many years of creative and severity for each signal word. Please read the productive use. manual and pay attention to these symbols.
  • Page 3: Technical Data

    ROUTER WARNING: The declared vibration emission level represents the main application of the tool. However if the tool is used for different applications, with TECHNICAL DATA different accessories or poorly maintained, the vibration emission may differ. This may significantly Voltage UK &...
  • Page 4: Safety

    SAFETY Keep cord from heat, oil and sharp 5. Consider working environment. Do edges. Always trail the power cord not use the product in the rain or in WARNING: away from the work area. a damp environment. Keep work area well lit. Do not use power tools Observe the safety regulations in the 18.
  • Page 5 Recommended speeds ensure there is sufficient clearance spanner or key and to the torque are shown in the Trend Routing between cutter tip and inside edge value provided by the manufacturer. Catalogue and/or website.
  • Page 6: Electrical Safety

    If you are in doubt, contact an authorised n When using a cable reel, always unwind the Trend repair agent or a qualified electrician. cable completely. n Disconnect the plug from the supply. n Also refer to the table below.
  • Page 7: Ec Declaration Of Conformity

    EN 61000-3-2 and EN 61000-3-3. the maximum diameter indicated in the Technical Data. For more information please contact Trend at the following address or refer to back of manual. WARNING: We recommend the The undersigned make this declaration on behalf use of a residual current device of Trend Machinery &...
  • Page 8: Items Enclosed

    ITEMS ENCLOSED 1 x Parallel side-fence with micro adjuster 1 x Fence rods (pair) 2 x Adjustable fence cheeks with fixing screws 1 x Collet ⁄ ” (6.35mm) UK & Eire 1 x Collet 8mm Europe 1 x Spanner (17mm A/F) 1 x Guide bush 20mm and fixing screws 1 x Beam trammel attachment 1 x Dust extractor spout...
  • Page 9: Assembly & Adjustment

    ASSEMBLY & ADJUSTMENT Fitting and Removing the Dust Extractor Spout n Insert the extractor spout in channel ‘A’ of the 35mm routing base. The extractor spout is suitable for dust extractors with a hose diameter of 35mm. The spout can be installed from either side. To ensure maximum plunge it is recommended Fitting Dust Extractor...
  • Page 10: Switching On & Off

    Switching On & Off n A slide switch above the fixed grip knob is used to turn the router on and off. n The T5 has a soft start feature when switched on and will take 1–2 seconds to reach full running speed.
  • Page 11: Fitting & Removing Cutters

    How to Fit and Remove a Router Cutter Fitting Cutters n Insert at least 3/4 of the shank length of the cutter (1) into the collet. n Press the spindle lock (2) forward until the router spindle is locked (you may need to turn the spindle slightly to engage it).
  • Page 12: Speed Control

    15mm Fixing Points for Accessories The router has two threaded holes M6 in its base that allow fitting of accessories and also fitting to router tables. A whole range of accessories are shown in the Trend Routing Catalogue. -10-...
  • Page 13: Operation

    OPERATION also pull the router towards the workpiece and hence the side-fence or guide bearing will be less likely to wander from the edge of the workpiece. WARNING: To reduce the risk of serious personal injury, always Feed Speed use proper hand position as The speed at which the cutter is fed into the wood shown.
  • Page 14: Side-Fence Routing

    Side-Fence Routing The side-fence is used to guide the router when moulding, edge profiling or rebating the edge of the workpiece or when routing grooves and slots in the centre of the workpiece, parallel to the edge. The edge of the workpiece must be straight and true.
  • Page 15: Template Guide Bush Routing

    Using the Guide Bush The 20mm guide bush (1) is fastened to the router’s base from beneath using the two M5 countersunk machine screws (2) supplied. Routing with a Template The guide bush is used in conjunction with a template when the routing operation is repetitive or the workpiece is complex in shape.
  • Page 16: Beam Trammel Routing

    Beam Trammel Routing Cutting Arcs with the Router n Place the machine on the workpiece. n Set the cutting depth using the depth stop (2). n Fasten the fence rod (1) in the routing base (3) with the thumb knob (4). n Fit on the beam trammel point (5) as shown.
  • Page 17: Bearing Guided Cutters

    Bearing Guided Cutters Ball Bearing Guided Cutters Edge profiling and shaping cutters are available with a bearing fitted to the end. This enables shaped or straight workpieces to be routed without the need for a guiding device such as a side-fence or batten.
  • Page 18: Freehand Routing & Batten Routing

    Standard technique is used, and side pressure applied to ensure the router does not wander from the batten. After use, remove all accessories, and return tool to its storage case. Please use only Trend original accessories. -16-...
  • Page 19: Maintenance

    Agent. The router will also be given a thorough inspection. Please call Trend Customer Services for advice as to how to dispose of unwanted Trend n Undo the two screws (1) in the top of the vent electrical products in an environmentally safe housing (2).
  • Page 20: Spare Parts List

    WP-T5/024 Switch Cover V2 WP-T5/025A Screw Self Tapping 4mm x 25mm Torx WP-T5/026A Cable Clamp WP-T5/028 Field Complete 240V T5E & T5/EURO V2 WP-T5E/029A Field Complete 115V T5EL V2 WP-T5EL/029A Deflector WP-T5/030 Armature 240V with Fan T5 & T5/EURO V2...
  • Page 21 Machine Screw Cheese M5 x 10mm Slot WP-SCW/50 Washer 5.3mm x 10mm x 1mm WP-T5/052 Scale WP-T5/053 Speed Control Circuit Board 240V T5 & T5/EURO V2 WP-T5E/055A Speed Control Circuit Board 115V T5EL V2 WP-T5EL/055A Speed Control Dial WP-T5E/056 Insertion Socket WP-T5/057...
  • Page 22: Spare Parts Diagram

    - SPARE PARTS LIST v11.0 07/2017 -20-...
  • Page 23 RECYCLABLE © Copyright Trend 2013, 2015, 2017, 2018. No part of this publication may be reproduced, stored or transmitted in any form without prior permission. Our policy of continuous improvement means that specifications may change without notice. Trend Machinery and Cutting Tools cannot be held liable for any material rendered unusable or any form of consequential loss. E&OE All registered trademarks acknowledged.
