Summary of Contents for TREND T-TECH TT/R127

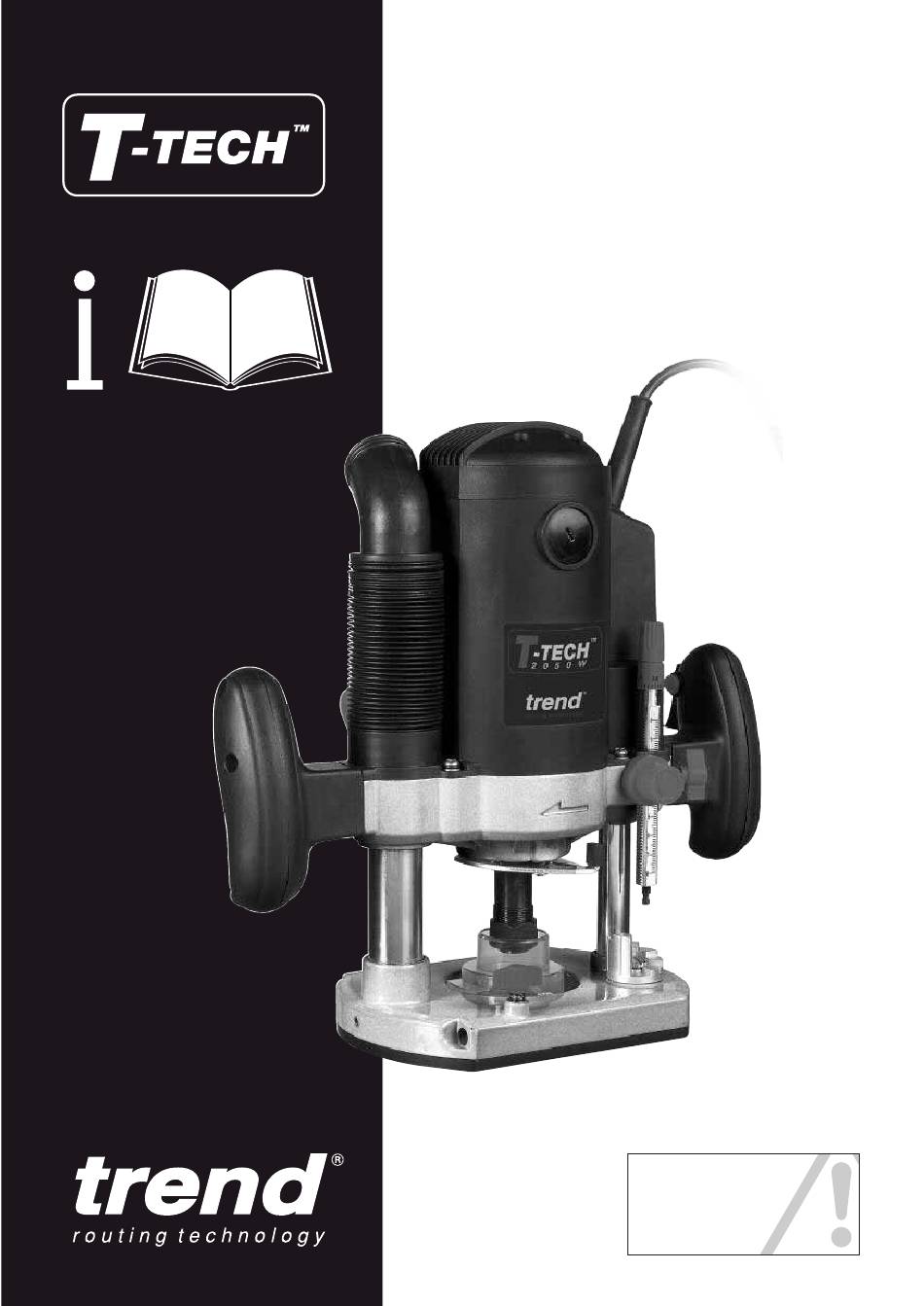

- Page 1 12.7mm (HALF INCH) 2050W ROUTER TT/R127 WARNING Read the instructions before operating the tool.
-
Page 2: Table Of Contents
TT/R127 Dear Customer TECHNICAL DATA Thank you for purchasing this T-TECH product, we hope you enjoy many years of creative and Voltage: UK & Eire 240V productive use. Power input 2050W No load speed 15000-27,000 min-1 CONTENTS Router carriage 2 columns TECHNICAL DATA _____________________1 Router carriage stroke 40mm with dust... -
Page 3: Safety
SAFETY INSTRUCTIONS ■ Don’t abuse cable unless otherwise indicated WARNING! Never carry tool by cord or yank it When using electric tools, elsewhere in this instruction to disconnect from the socket. basic safety precautions should manual. Have defective switches always be followed to reduce Keep cord from heat, oil and sharp replaced by an Authorised Service edges. - Page 4 SAFETY INSTRUCTIONS ■ Never use cutters with a diameter ■ Ensure attachment is securely fitted ■ Check all ball bearing and blade exceeding the maximum diameter to the workbench, with table fixing screws before use to ensure indicated in the technical data of surface at approximately hip height.
-
Page 5: Electrical Safety
TT/R127 ELECTRICAL SAFETY Power Supply The electric motor has been designed for one Never use a light socket. voltage only. Always check that the power Never connect the live (L) or supply corresponds to the voltage on the rating neutral (N) wires to the earth plate. -
Page 6: Manufacturers Declaration
TT/R127 ITEMS ENCLOSED MANUFACTURERS DECLARATION 1 x Parallel side-fence 2 x Side-fence rods TT/R127 1 x Collet 6.35mm ( ”) 1 x Collet 12.7mm ( ”) fitted to machine We declare under our sole responsibility that 1 x Guide bush 30mm, guide bush plate and this product is in conformity with the screws following standards of standardised... -
Page 7: Description Of Parts
TT/R127 DESCRIPTION OF PARTS Handle (x2) Lock-off button Speed control Base plate Depth gauge Spindle Depth adjusting knob Collet nut On/Off switch Brush cap (x2) Plunge lock lever Parallel side fence Depth limiting selector Template guide bush Parallel side fence knobs Additional collet (6.35mm) Depth gauge locking knob Spanner... -
Page 8: Operation
TT/R127 3. Depth Gauge OPERATION The depth gauge (3) is 1. Handle used when setting the depth of cut. It has a scale Always use both handles (1) and make sure that with graduations in you have a firm grip on the router before millimetres with a proceeding with any work. -
Page 9: Plunge Lock Lever
TT/R127 ■ Release the plunge lock lever. 6. Plunge Lock Lever ■ Adjust the knob (4) until the depth gauge (3) In its normal position, the lever (6) prevents the just touches a depth limiting step on the depth router body and hence the limiting selector (7). - Page 10 TT/R127 Feed Direction 19. Additional Collet Two collet assemblies are provided with the router: a 12.7mm (1/2”) and a 6.35mm (1/4”). At purchase, the 12.7mm collet is fitted to the router. When routing along an edge, the direction of the router travel should be against that of the 20.
-
Page 11: Spindle Lock
TT/R127 11. Spindle Lock Make sure that the cutter is firmly secured before commencing operation. Always ensure that the tool is switched off and the plug is removed from the power point before making 12. Lock-Off Button any adjustments or maintenance The lock-off button (12) procedures. -
Page 12: Parallel Side Fence
TT/R127 17. Parallel Side Fence If you wish to make your own templates it is best to use a hardwood such as plywood. Use a The parallel side fence (17) is an effective aid to piece that is just thicker than the depth of the cutting in a straight line when chamfering or template guide. -
Page 13: Maintenance & Care
TT/R127 MAINTENANCE AND CARE ENVIRONMENTAL PROTECTION Cleaning Accessories and packaging should be sorted for environmental-friendly recycling. ■ Keep the machine clean at all times. Wipe the outside clean with a dry cloth. Some maintenance products and solvents may Separate collection. This must not be damage the plastic parts, these include disposed of with normal household products containing Benzene, Trichloroethyle... - Page 14 © Copyright 2005. No part of this publication may be reproduced, stored or transmitted in any form without prior permission. Our policy of continuous improvement means that specifications may change without notice. Trend Machinery and Cutting Tools and B&Q Plc...
