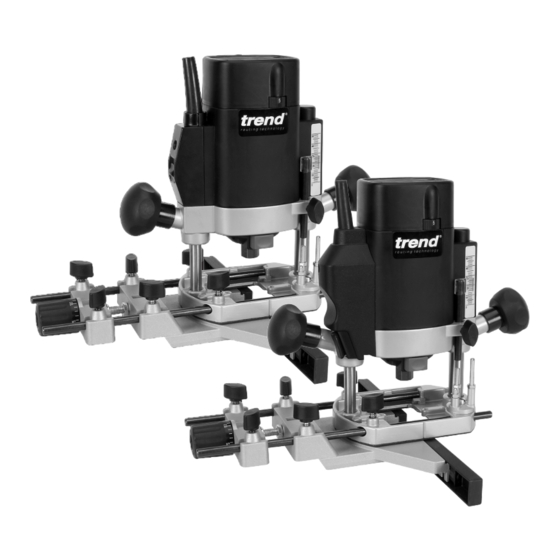

T5
MK 1
2
V
&
T5
MK 2
2
V
V2 Released May 2009
Please read these instructions before use.
Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T5MK1 and is the answer not in the manual?

Questions and answers

Summary of Contents for TREND T5MK1

  • Page 1 MK 1 & MK 2 V2 Released May 2009 Please read these instructions before use. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
  • Page 2: Table Of Contents

    Definitions: Safety Guidelines Dear Customer Thank you for purchasing this Trend product, The definitions below describe the level of we hope you enjoy many years of creative and severity for each signal word. Please read the productive use. manual and pay attention to these symbols.
  • Page 3: Technical Data

    ROUTER WARNING: The declared vibration emission level represents the main application of the tool. However if the tool is used for different applications, with TECHNICAL DATA different accessories or poorly maintained, the vibration emission may differ. This may significantly Voltage UK &...
  • Page 4: Safety

    SAFETY awkward or uncomfortable hand outdoors. Wear protective hair positions. covering to contain long hair. WARNING: 17.Don’t abuse the cable. Never carry 5. Consider working environment. Do Observe the safety regulations in the power tool or accessory by cord or not use the product in the rain or in instruction manual of the power tool pull it to disconnect from the socket.
  • Page 5: Safety

    Recommended speeds 4. When using a template guide bush, 15.All fastening screws and nuts should are shown in the Trend Routing ensure there is sufficient clearance be tightened using the appropriate Catalogue and/or website.
  • Page 6: Electrical Safety

    If you are in doubt, contact an authorised n When using a cable reel, always unwind the Trend repair agent or a qualified electrician. cable completely. n Disconnect the plug from the supply. n Also refer to the table below.
  • Page 7: Ec Declaration Of Conformity

    EN 55014-2, EN 61000-3-2 and EN 61000-3-3. 1 x Guide bush 20mm and fixing screws 1 x Beam trammel attachment For more information please contact Trend at the following address or refer to back of manual. 1 x Dust extractor spout...
  • Page 8: Description Of Parts

    DESCRIPTION OF PARTS A Plunge locking grip knob B Depth of cut scale C Depth stop D Motor housing E Power cable F On/Off switch: MK1 G Fixed Grip knob H Spindle lock Collet nut Dust spout 35mm dia. K Thumb knob with anti-vibration spring to secure fence rods L Router base M Template guide bush dia.
  • Page 9: Assembly & Adjustment

    ASSEMBLY & ADJUSTMENT Fitting and Removing the Dust Extractor Spout n Insert the extractor spout in channel ‘A’ of the 35mm routing base. The extractor spout is suitable for dust extractors with a hose diameter of 35mm. The spout can be installed from either side. To ensure maximum plunge it is recommended Fitting Dust Extractor...
  • Page 10: Switching On & Off

    Switching On & Off Fitting the Ref. T5MK2/LOCK n Remove plug from the No-Volt Release T5 MK1 Switch. n A slide switch above the fixed grip knob is n Pull lever towards knob and clip lock over the used to turn the router on and off. knob base ensuring the front of the lock is n The T5 has a soft start feature when switched holding the lever.
  • Page 11: Fitting & Removing Cutters

    How to Fit and Remove a Router Cutter Fitting Cutters n Insert at least of the shank length of the cutter (1) into the collet. n Press the spindle lock (2) forward until the router spindle is locked (you may need to turn the spindle slightly to engage it).
  • Page 12: Speed Control

    15mm Fixing Points for Accessories The router has two threaded holes M6 in its base that allow fitting of accessories and also fitting to router tables. A whole range of accessories are shown in the Trend Routing Catalogue. -10-...
  • Page 13: Operation

    OPERATION Feed Speed The speed at which the cutter is fed into the wood WARNING: To reduce the risk of must not be too fast that the motor slows down, or serious personal injury, always too slow that the cutter leaves burn marks on the use proper hand position as face of the wood.
  • Page 14: Side-Fence Routing

    Side-Fence Routing The side-fence is used to guide the router when moulding, edge profiling or rebating the edge of the workpiece or when routing grooves and slots in the centre of the workpiece, parallel to the edge. The edge of the workpiece must be straight and true.
  • Page 15: Template Guide Bush Routing

    Using the Guide Bush The 20mm guide bush (1) is fastened to the router’s base from beneath using the two M5 countersunk machine screws (2) supplied. Routing with a Template The guide bush is used in conjunction with a template when the routing operation is repetitive or the workpiece is complex in shape.
  • Page 16: Beam Trammel Routing

    Beam Trammel Routing Cutting Arcs with the Router n Place the machine on the workpiece. n Set the cutting depth using the depth stop (2). n Fasten the fence rod (1) in the routing base (3) with the thumb knob (4). n Fit on the beam trammel point (5) as shown.
  • Page 17: Bearing Guided Cutters

    Bearing Guided Cutters Ball Bearing Guided Cutters Edge profiling and shaping cutters are available with a bearing fitted to the end. This enables shaped or straight workpieces to be routed without the need for a guiding device such as a side-fence or batten.
  • Page 18: Freehand Routing & Batten Routing

    Standard technique is used, and side pressure applied to ensure the router does not wander from the batten. After use, remove all accessories, and return tool to its storage case. Please use only Trend original accessories. -16-...
  • Page 19: Maintenance

    WARNING: It is advisable to Please call Trend Customer Services for have the brushes replaced by advice as to how to dispose of unwanted Trend an authorised Trend Service electrical products in an environmentally safe Agent. The router will also be way or visit www.trend-uk.com...
  • Page 20: Spare Parts List

    Please use only Trend original spare parts. & - SPARE PARTS LIST v10.0 06/2013 Qty. Desc. Ref. Stator Housing WP-T5/001 Top Vent Housing WP-T5E/002 Base Complete V2 WP-T5/003A Lower Bearing Housing V2 WP-T5/004A Spring for Revolving Guide WP-T5/005 Ball for Revolving Guide...
  • Page 21: Spare Parts List

    & - SPARE PARTS LIST v10.0 06/2013 Qty. Desc. Ref. Screw Self Tapping 4mm x 16mm Torx WP-T5/041 Locking Washer B4 WP-T5/042 Beam Trammel for 8mm Rod BEAM/005 Guide Bush 20mm Diameter GB20/B Parallel Side Fence Complete with Micro Adjuster WP-T5/046 Parallel Side Fence Casting >05/2005 WP-T5/047A...
  • Page 22: Spare Parts Diagram

    T5 MK1 V2 - SPARE PARTS DIAGRAM v10.0 06/2013 T5 MK2 V2 - SWITCH -20-...
  • Page 23 RECYCLABLE © Copyright Trend 2013, 2015. No part of this publication may be reproduced, stored or transmitted in any form without prior permission. Our policy of continuous improvement means that specifications may change without notice. Trend Machinery and Cutting Tools cannot be held liable for any material rendered unusable or any form of consequential loss.
