- Page 1 NEW 1060PLUS Graphics Tablet User Manual For Windows and Macintosh OS...
- Page 2 NEW 1060PLUS Graphics Tablet Precautions 1. Please read this manual carefully before using, and keep it well for future reference. 2. Before cleaning the tablet please unplug the power cord and wipe with a soft damp cloth, do not use any kind of detergents.
-
Page 3: Table Of Contents
NEW 1060PLUS Graphics Tablet Contents 1. Product Overview..........................3 1.1 Tablet Introduction........................3 1.2 Product and Accessories....................... 3 1.3 Tablet Connection......................... 5 1.4 Driver Installation........................5 1.5 Pen Nib Replacement......................6 1.6 Charging the Pen........................6 2. Product Basic Operation......................... 7 2.1 Using The Pen........................7 3. -
Page 4: Product Overview

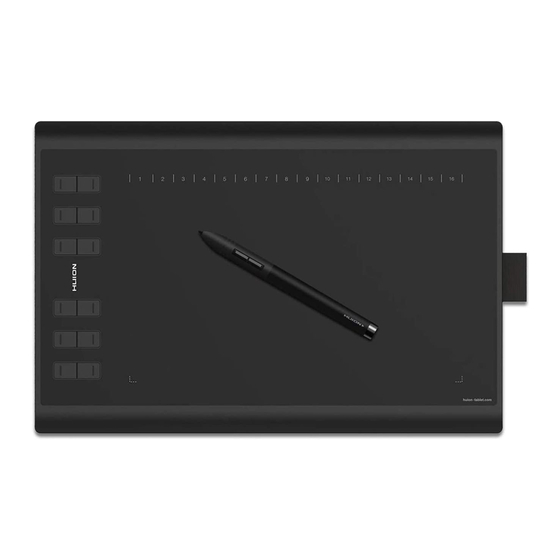

1.1 Tablet Introduction ® Thanks for choosing HUION NEW 1060PLUS graphics tablet. This is a new generation of portable professional drawing tablet, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience. - Page 5 NEW 1060PLUS Graphics Tablet 1.2.2 Stylus Pen The stylus pen is a rechargeable pen with 8192 levels pressure sensitivity and can be used for around 350hrs with full battery. Charging Port Upper Button（Mouse Right Key） Lower Button（Switch Brush） Pen Nib（Mouse Left Key）...
-
Page 6: Tablet Connection
NEW 1060PLUS Graphics Tablet 1.3 Tablet Connection Connect the tablet to your computer with USB cable. 1.4 Driver Installation 1.4.1 OS Support Windows 7 or later，macOS 10.11 or later 1.4.2 Install via Micro SD Card Connect the tablet to your computer, then open the Micro SD Card folder, click driver program and finish the installation following the instructions. -
Page 7: Pen Nib Replacement
NEW 1060PLUS Graphics Tablet 1.5 Pen Nib Replacement The nib will be wear out after using for a long time, then you need to replace a new nib. 1. Take out the new nib and clip from pen box. 2. Clasp the old nib and pull it straight out of the pen using the nib clip. -
Page 8: Product Basic Operation
NEW 1060PLUS Graphics Tablet 2. Product Basic Operation 2.1 Using The Pen 2.1.1 Hold the pen Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen. - Page 9 NEW 1060PLUS Graphics Tablet 2.1.3 Click Use the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it. 2.1.4 Move Select the object, then slide the pen tip across the screen to move it.
-
Page 10: Function Setting
NEW 1060PLUS Graphics Tablet 3. Function Setting 3.1 Device Connection Prompt 1. Device disconnected: The computer does not recognize the tablet. 2. Device connected: The computer has recognized the tablet. 3.2 Working Area Setting 3.2.1 Using Multiple Monitors Select the Working Area tab to define the relationship between pen movement on the tablet and cursor movement on the monitor screen. - Page 11 NEW 1060PLUS Graphics Tablet 3.2.2 Working Area Setting Define the tablet area that will be mapped to the screen area. 1. Full Area: the entire active area of the tablet. This is the default setting. 2. Customized Area: 1.> Enter coordinate values. or2>. Drag the corners of the foreground graphic to select the screen area.
-
Page 12: Press Keys Function Setting
NEW 1060PLUS Graphics Tablet 3.3 Press Keys Function Setting Default Setting：Place the cursor on the press key or click the press key to find the default values. Customized Setting：Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect. -
Page 13: Pressure Sensitivity Setting
NEW 1060PLUS Graphics Tablet 3.5 Pressure Sensitivity Setting The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more pressure sensitive. 3.6 Pen Pressure Testing Click “start pressure test”, you can gradually apply pressure to the stylus on the screen to test the pressure level. -
Page 14: Enable The Windows Ink Feature
NEW 1060PLUS Graphics Tablet 3.7 Enable the Windows Ink feature Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office、Windows Journal、Adobe Photoshop CC、 SketchBook 6 and so on. 3.8 Data Export and Import... -
Page 15: Specifications
NEW 1060PLUS Graphics Tablet 4. Specifications Graphics Tablet Model NEW 1060PLUS(8192) Electromagnetic Resonance Touch Technology 254 x 158.8mm(10 x 6.25inch) Working Area 360 x 240 x 10mm Dimension Net Weight 770g Touch Resolution 5080LPI Report Rate 233PPS Pen Sensing Height... -
Page 16: Trouble Shooting
Note: Information in this manual is subject to change without further notice. For more information, please contact us with our email: service@huion.com Or go to our website (www.huion.com) to get the latest driver and user manual. 15 / 15 www.huion.com...
