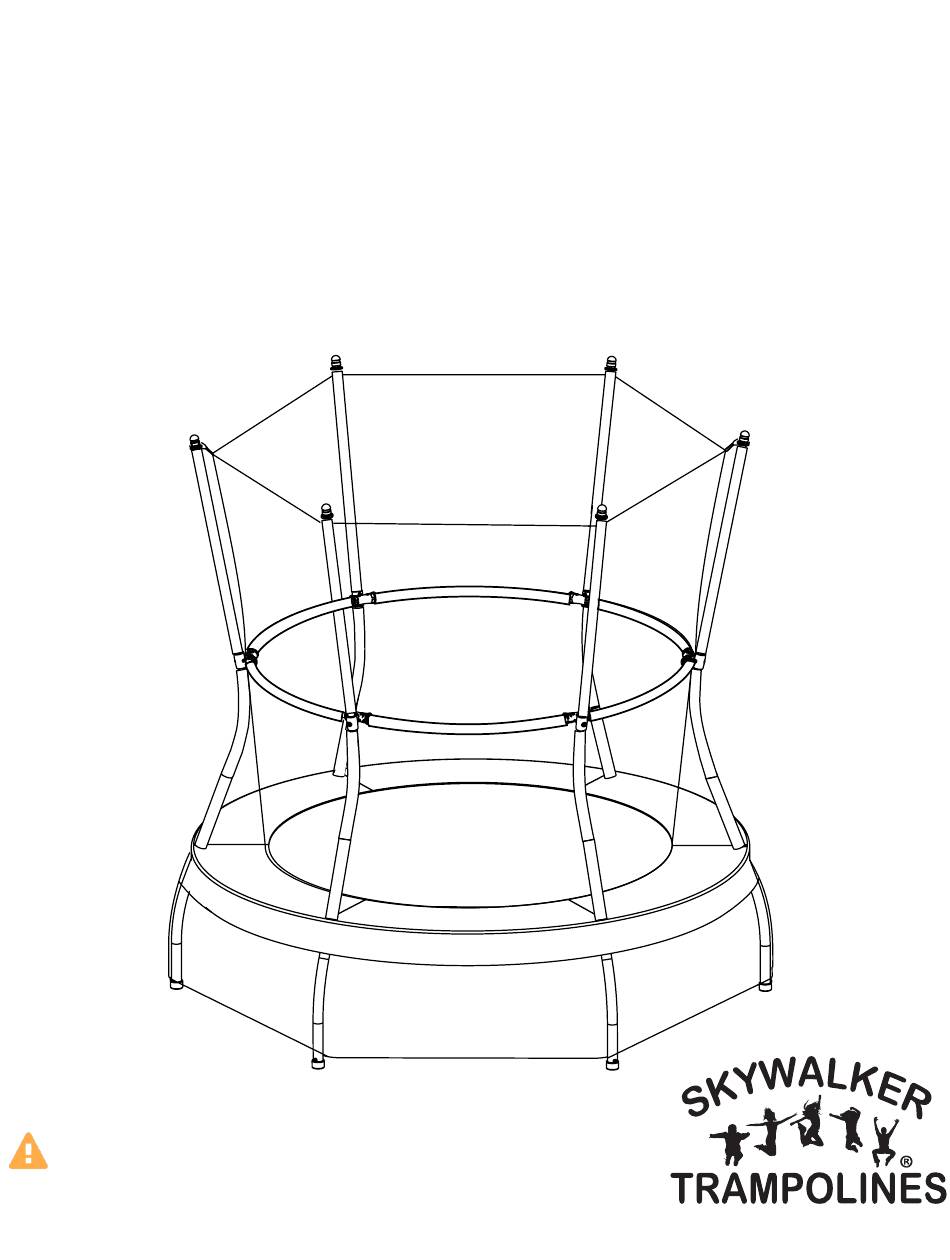

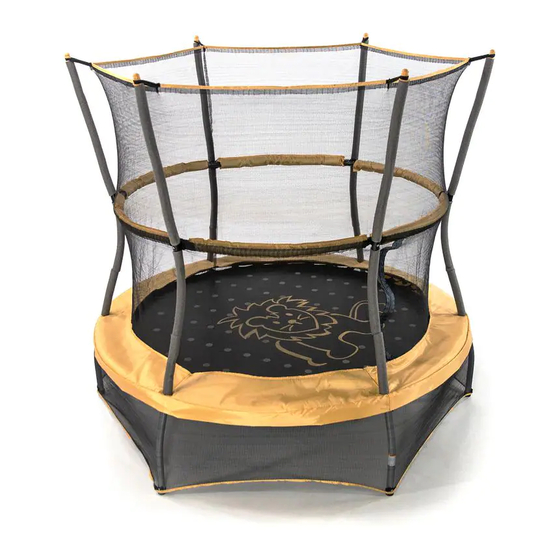

- Page 1 ASSEMBLY, MAINTENANCE, & USER MANUAL 60” MINI TRAMPOLINE WARNING Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference. Skywalker Holdings LLC Maximum user weight 100 lbs. P.O. Box 574, Brigham City, UT 84302...
-
Page 2: Table Of Contents
HEY WE'VE GOT SOMETHING REALLY IMPORTANT TO SAY Skywalker Trampolines belongs to a family of brands focused on providing active products. Check us out online! We've got assembly videos (for those of you who prefer movies over books), FAQs (so you know you're not the only one who needs help) , additional products (including trampolines, sports, fitness, and playground equipment), and most importantly, find us on social media! Because we want to be your friend. -
Page 3: Part List
BEFORE YOU BEGIN Thank you for choosing Skywalker Trampolines! We’re just as excited as you are to help your family live an active (but most importantly FUN) lifestyle. This model is one of our favorites, and we’re confident you’ll love it, too. We want to make things easier for you, so we have listed all the important information that you (and your little outdoor adventurers) need to know. -
Page 4: Part Identification
PART IDENTIFICATION Before you begin, take a look at the drawings below to make sure you have all the parts! The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. Enclosure Tube Frame Tube (x6) Leg (x6) (x6) - Page 5 End Cap (x6) (x6) Pole Cap (x6) Sleeve (Pre-installed) Self-tapping Screw Screw Driver (x1) (x32) two spare parts...
-
Page 6: Exploded Drawing
EXPLODED DRAWING (14) (14) (14) (14) (14) (14) (16) (16) (16) (16) (16) (16) (16) (16) (16) (16) (16) (16) (16) (16) (16) (15) (16) (16) (15) (15) (16) (16) (15) (15) -
Page 7: Assembly
ASSEMBLY READ THIS BEFORE YOU BEGIN • You’ll probably need at least two adults and two hours to assemble your trampoline (of course, that depends on what model you have, and whether or not you’re secretly a superhero) • We’ve provided some tools to help with assembly, but you’re more than welcome to use your own. Many find that a power drill and gloves come in handy •... - Page 8 ASSEMBLY STEP 3 Next, connect all the frame pieces together. Note: If the bottom of the legs are leaning noticeably inward and not flat on the ground, you will need to disassemble and go back to Step 2. Make sure you assemble with the larger side of the frame tube placed into the left side of the leg socket with the top of the leg pointing at you and the bend facing away from you.
- Page 9 STEP 5 Follow the pattern below beginning with the 7th band, continue to place the elastic bands around the frame in a clockwise direction until all 30 bands are used. It will get tight as you near the end of attaching the stretch bands, wearing gloves will come in handy at this point to prevent blisters.
- Page 10 ASSEMBLY STEP 7 Put the lower foam (11) onto the tube as shown. Lower Foam 8” (205 mm) (x6) STEP 8 Unfold the enclosure net attached to the mat. Find the premade holes near the middle of the net. Place a joint (5) into the hole from the inside of net. Repeat this step until all joints have been placed inside the net.
- Page 11 STEP 9 Insert an enclosure tube (3) into a joint (5) as shown. Make sure the middle hole in the enclosure tube aligns with the hole in the joint. Enclosure tube (x1) STEP 10 Secure the joint and enclosure tube with the screws (16) as shown. Note: The self tapping screws can be difficult to screw in as the holes are not prethreaded.
- Page 12 ASSEMBLY STEP 11 Slide the middle foam (10) onto the assembled enclosure tube (3) as shown. Middle Foam 11” (302 mm) (x1) STEP 12 Then place the assembled enclosure tube (3) onto the leg tube and secure together with a screw (16) as shown. Self-tapping Screw (x1)
- Page 13 STEP 13 Repeat steps 9-12 to assemble the remaining five enclosure tubes (3). STEP 14 Now place the upper foam (9) pieces onto the top of the enclosure tubes as shown. Upper Foam 21” (545 mm) (x6)
- Page 14 ASSEMBLY STEP 15 Insert a rail foam (12) into a sleeve (13). Then insert a rail (4) into the foam you just placed inside the sleeve. Rail Foam 23.4” (595 mm) Sleeve (x6) Rail (x6) (x6) STEP 16 Now insert one end of the rail (2) into a joint (5) on an enclosure tube. Secure with a screw (16).
- Page 15 STEP 17 Now, insert the free end of each rail (2) into the joints (5). Secure with the screws (16). Self-tapping Screw (x6) STEP 18 Now place the pole caps (14) onto the top of the enclosure tubes. Make sure the pole caps are pushed all the way down! Pole Cap (x6)
- Page 16 ASSEMBLY STEP 19 Place the straps that are at the top of the enclosure net over the pole caps (14). Then insert self-tapping screws (16) into the holes at the bottom of the legs. Tighten to secure in place. Note: The self tapping screws can be difficult to screw in as the holes are not prethreaded.
-
Page 17: Maintenance And Care Information
MAINTENANCE & CARE INFORMATION Congratulations and high five on successfully assembling your new Skywalker Trampolines Mini Trampoline! Now, the best way to keep your new trampoline in tip-top shape is to check periodically for: • Missing, improperly positioned, or insecurely attached frame padding, netting, enclosure tubes, or foam sleeves •... -
Page 18: Instructions For Use
INSTRUCTIONS FOR USE To reduce the risk of serious injury, read and follow all of the warnings, precautions, and instructions in this manual before you use the trampoline enclosure. Warnings and instructions for care, maintenance, and use of this trampoline and enclosure are included to promote safe enjoyable use of this equipment. -
Page 19: Methods Of Accident Prevention
METHODS OF ACCIDENT PREVENTION THE SUPERVISOR’S ROLE IN PREVENTING ACCIDENTS It is the responsibility of the supervisors of trampoline users to provide knowledgeable and mature supervision. They need to know and enforce all of the rules and warnings printed in this manual to minimize the likelihood of accidents and injuries. -
Page 20: Instructions And Model Lessons
INSTRUCTIONS & MODEL LESSONS The following lessons are examples of an instructional program. They should follow a complete discussion and demonstration of body mechanics between the supervision and the student(s). 1. Fundamental bounce: Demonstration and practice. 2. Knee Drop: Demonstration and practice. 3. - Page 21 Lesson 5: Seat Drop Lesson 6: Front Drop 1. Land in a sitting position with your legs parallel to the 1. Start from a low bounce and land on the mat in a mat. prone position. 2. Place your hands on the mat beside your hips. 2.
- Page 22 Lesson 9: Mounting and Dismounting Lesson 10: Breaking 1. Users should climb onto the trampoline by placing 1. Starting from a standing position, jump into the their hands on the frame and stepping or rolling up air. onto the frame, across the springs and onto the mat. 2.
-
Page 23: Trampoline Safety Information
TRAMPOLINE SAFETY INFORMATION In trampoline use, as in all active recreational sports, participants can be injured. However, there are steps that can be taken to reduce risk of injury. In this section, primary accident patterns are identified and the responsibilities of supervisors and jumpers in accident prevention are described. -
Page 24: Enclosure Safety Information
ENCLOSURE SAFETY INFORMATION NEED FOR TRAMPOLINE ENCLOSURE SAFETY A trampoline enclosure is a recreational product. The information on this page identifies important safety precautions. The precautions are not all-inclusive, because an enclosure can be used in ways that this manual cannot cover completely. -
Page 25: Limited Warranty
LIMITED WARRANTY Skywalker Holdings, LLC warrants its products to be free from defects in material and workmanship under normal use and service conditions. The steel frame is warranted for three (3) years after the date of purchase. All other parts are warranted for one (1) year after the date of purchase. Warranty coverage extends only to the original retail purchaser from the date of original purchase. - Page 26 NOTE: Skywalker Holdings, LLC is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economical loss, loss of property, loss of revenue or profits, loss of enjoyment or use, cost of removal, installation or other consequential damages.
