How To Interface The Larc - Lexicon M300L Owner's Manual

The 300L rear panel COMM PORT connector interfaces to the Lexicon
Alphanumeric Remote Control (LARC) via a flexible 50-ft cable (supplied). The
pin assignments for the connector are shown to the right.
TIME CODE IN
PUSH
COMM PORT
AES/EBU EIAJ CP340
DO DI
PUSH
DO DI
DI
DO
MIDI
OUT THRU IN
R OUT L OUT R IN L IN
PUSH PUSH
INPUT
GAIN

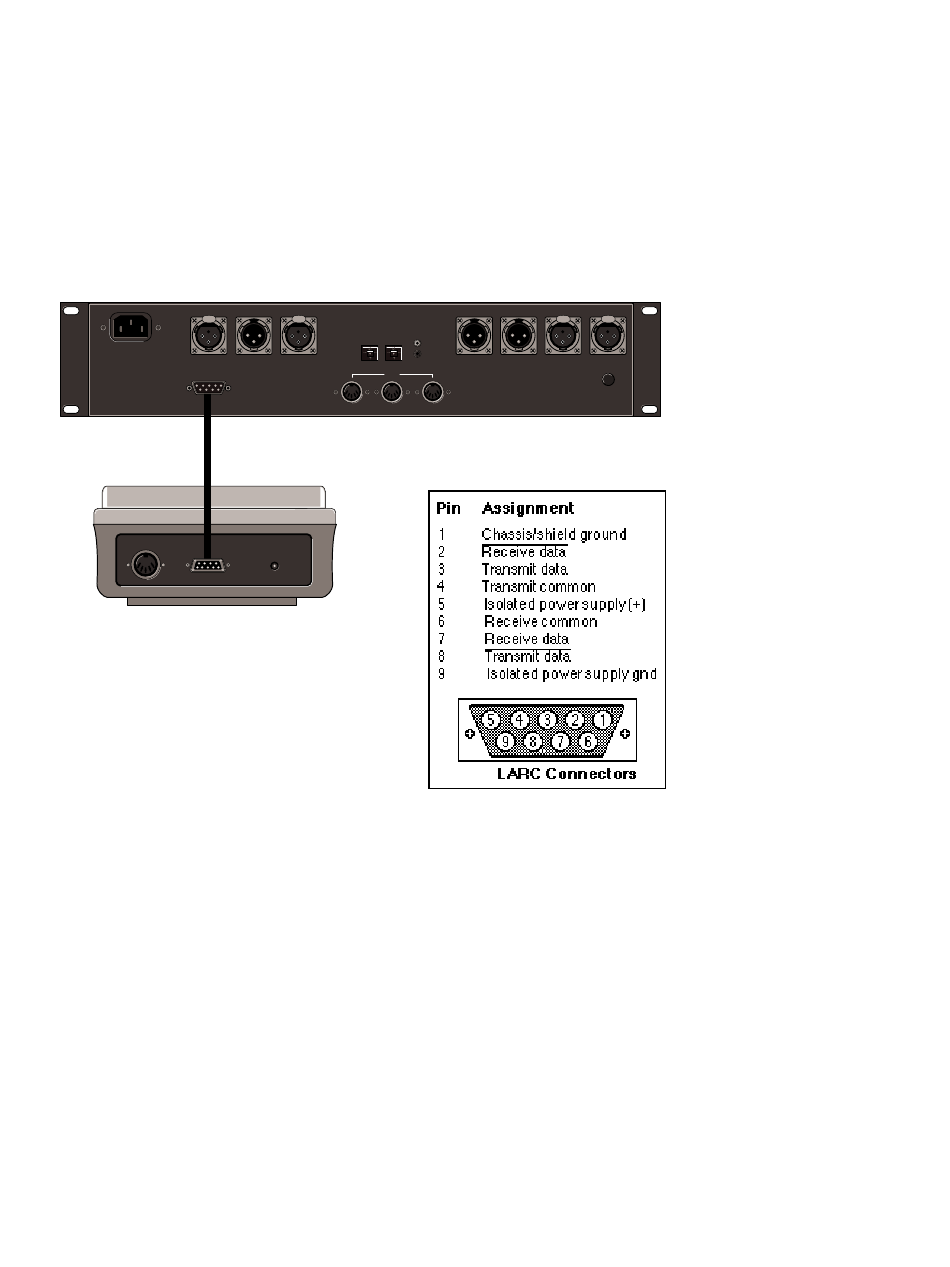

Wiring diagram for the 300L
COMM PORTconnector.
Installing the 300L
How to Interface
the LARC
1-7
