Safety and Reference
Please read this manual carefully before operating your set and
retain it for future reference.
*MFL71667502*
www.lg.com
Copyright
2020 LG Electronics Inc. All Rights Reserved.
(2007-REV01)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OLED77ZX9LA.AEK and is the answer not in the manual?

Questions and answers

Summary of Contents for LG SIGNATURE OLED77ZX9LA.AEK

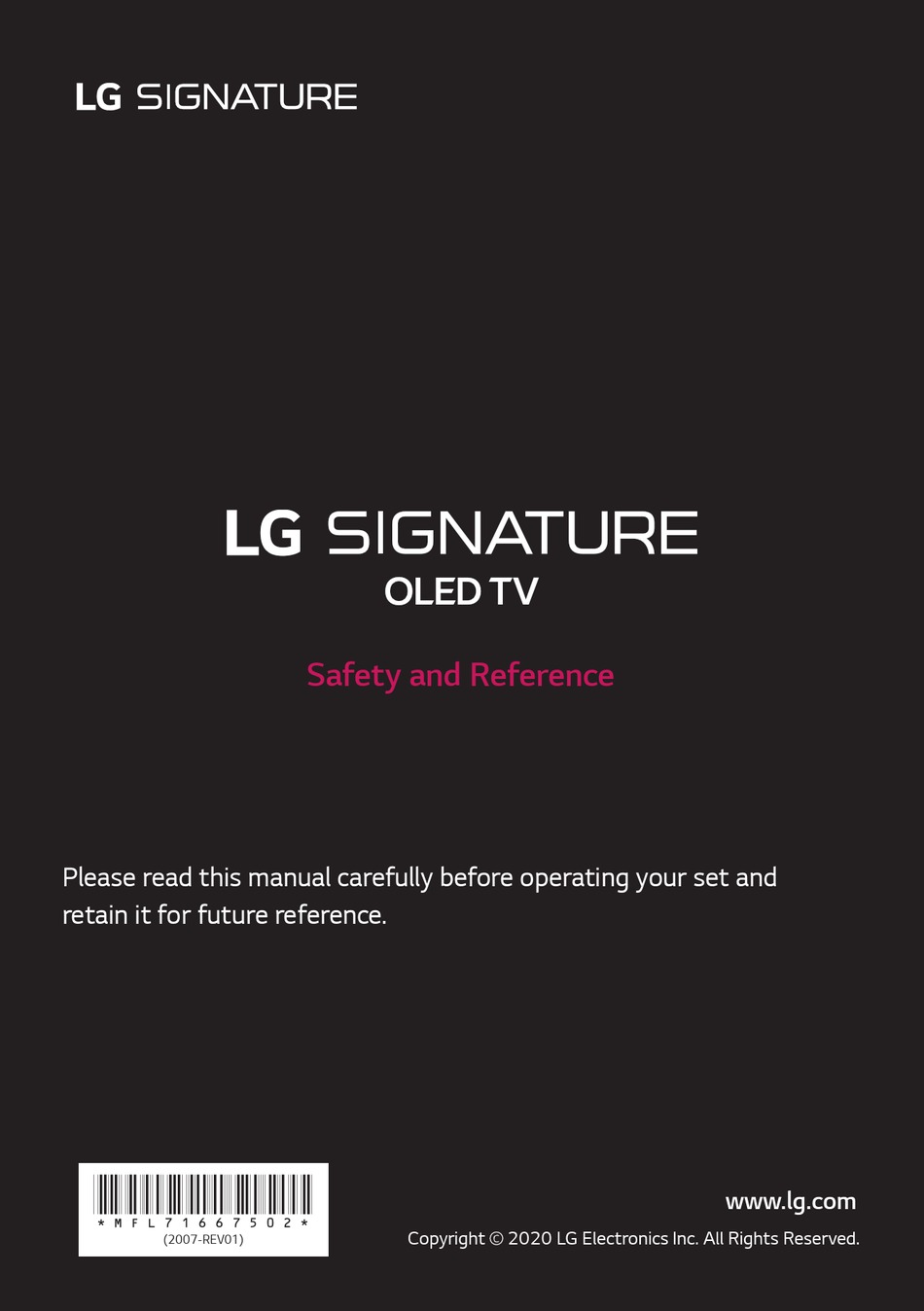

  • Page 1 Safety and Reference Please read this manual carefully before operating your set and retain it for future reference. *MFL71667502* www.lg.com Copyright 2020 LG Electronics Inc. All Rights Reserved. (2007-REV01)
  • Page 2 Warning! Safety •  Ventilation - Install your TV where there is proper ventilation. Do not install Instructions in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials while unit is plugged in.
  • Page 3 •  Grounding (Except for devices which are not grounded.) •  Batteries - TV with a three-prong grounded AC plug must be connected to - Store the accessories (battery, etc.) in a safe location out of the a three-prong grounded AC outlet. Ensure that you connect the reach of children.
  • Page 4: Separate Purchase

    Preparing Separate Purchase •  If the TV is turned on for the first time after it was shipped from the Separate purchase items can be changed or modified for quality factory, initialization of the TV may take a few minutes. improvement without any notification.
  • Page 5: Lifting And Moving The Tv

    Lifting and moving the TV • Avoid touching the screen at all times, as this may result in damage to the screen. • When attaching the stand to the TV set, place the screen Please note the following advice to prevent the TV from being scratched facing down on a cushioned table or flat surface to or damaged and for safe transportation regardless of its type and size.
  • Page 6: Mounting To The Wall

    Mounting to the Wall Securing TV to the Wall Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel.
  • Page 7: Precautions For Safety

    • Install the product according to the instructions in the installation manual. For more information, watch the installation video on your smart device. Failure to install the product according to the instructions in the installation manual can result in serious personal injury or product damage.
  • Page 8: Before Installation

    Before Installation Securing TV to the Wall (Except for LSW440B) (Except for LSW440B) •  Do not use the product for any purpose other than installing the TV on a wall. •  Avoid product damage and safety accidents caused by careless installing or use of improper or unauthorized wall mount.
  • Page 9: After Installation

    (For installation on concrete wall) (For installation on wood stud) Use the Ø 4 mm drill bit for wood to drill holes with the depth of 76 mm. (Clean the drilled hole.) 1 Drill holes in anchor locations with a drill bit of Ø 8 mm to a depth of 80 mm to 100 mm.
  • Page 10: Other Connections

    CI module • Do not use a sharp object when you detached the cable cover. This could damage the cable or the cabinet. It may View the encrypted (pay) services in digital TV mode. (Depending on also cause personal harm. model) • ...
  • Page 11: Using Button

    Using Button IR Blaster •  Control the set-top box (cable/satellite/IP/OTT), Blu-ray/DVD You can simply operate the TV functions, using the button. player, soundbar, game consoles, etc., using the IR Blaster. - Connect the IR Blaster cable to the TV’s IR Blaster port. - Place both ends (one or two) of the IR Blaster in front of the external device as shown in the picture below.
  • Page 12: Using Remote Control

    Using Remote Control To use the button, press and hold for more than 1 second. (POWER) Turns the TV on or off. Selects Radio, TV and DTV programme. (Depending on model) (SEARCH) Check for recommended content. (Some The descriptions in this manual are based on the buttons on the remote recommended services may not be available in some countries.) control.
  • Page 13 Using Magic Remote To use the button, press and hold for more than 1 second. (POWER) Turns the TV on or off. Control (STB POWER) You can turn your set-top box on or off by adding the set-top box to the universal remote control for your TV. Shows programme guide.
  • Page 14: Troubleshooting

    User Guide (BACK) Returns to the previous level. (BACK) Clears on-screen displays and returns to last input viewing. For more information about this TV, read the USER GUIDE embedded in (Q. Settings) Accesses the Quick Settings. the product. (Q. Settings) Displays the [All Settings] menu. →...
  • Page 15 Abnormal Display •  If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product. •  This panel is an advanced product that contains millions of pixels. You may see tiny black dots and/or brightly coloured dots (white, red, blue or green) at a size of 1 ppm on the panel.
  • Page 16: Specifications

    Specifications Broadcasting Specifications Digital TV Analogue TV PAL B/B, PAL B/G, DVB-T/T2 PAL D/K, PAL-I, Television system DVB-C SECAM B/G, SECAM D/K, DVB-S/S2 NTSC-M DVB-S/S2 DVB-C DVB-T/T2 VHF III : 174 ~ 230 MHz UHF IV : 470 ~ 606 MHz Program coverage 46 ~ 862 MHz 950 ~ 2150 MHz...
  • Page 17: Environment Condition

    Environment condition Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % •  For information of the power supply and power consumption, refer to the label attached to the product. - The typical power consumption is measured in accordance with IEC 62087 or each country’s energy regulations.
  • Page 18: Open Source Software Notice Information

    Open Source Software Important Information for Notice Information Preventing Image Retention To obtain the source code under GPL, LGPL, MPL, and other open OLED is a self-emissive technology, which brings many significant source licenses, that is contained in this product, please visit http:// benefits to image quality and performance.
  • Page 19 Recommended Measures for Information on Functions Preventing Image Retention Supporting Image Quality in Relation to Temporary Image •  Avoid watching a video displaying an image as listed above for Retention extended periods of time. •  Adjust your TV settings as below when turning on a video • ...
  • Page 20 The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. MODEL SERIAL NO.
