ADS8910BEVM-PDK Operation

The following instructions are a step-by-step guide to connecting the ADS8910BEVM-PDK to the
computer and evaluating the performance of the ADS8910B:
1. Connect the ADS8910BEVM to the PHI. Install the two screws as indicated in
2. Use the USB cable provided to connect the PHI to the computer.
• LED D5 on the PHI lights up, indicating that the PHI is powered up.

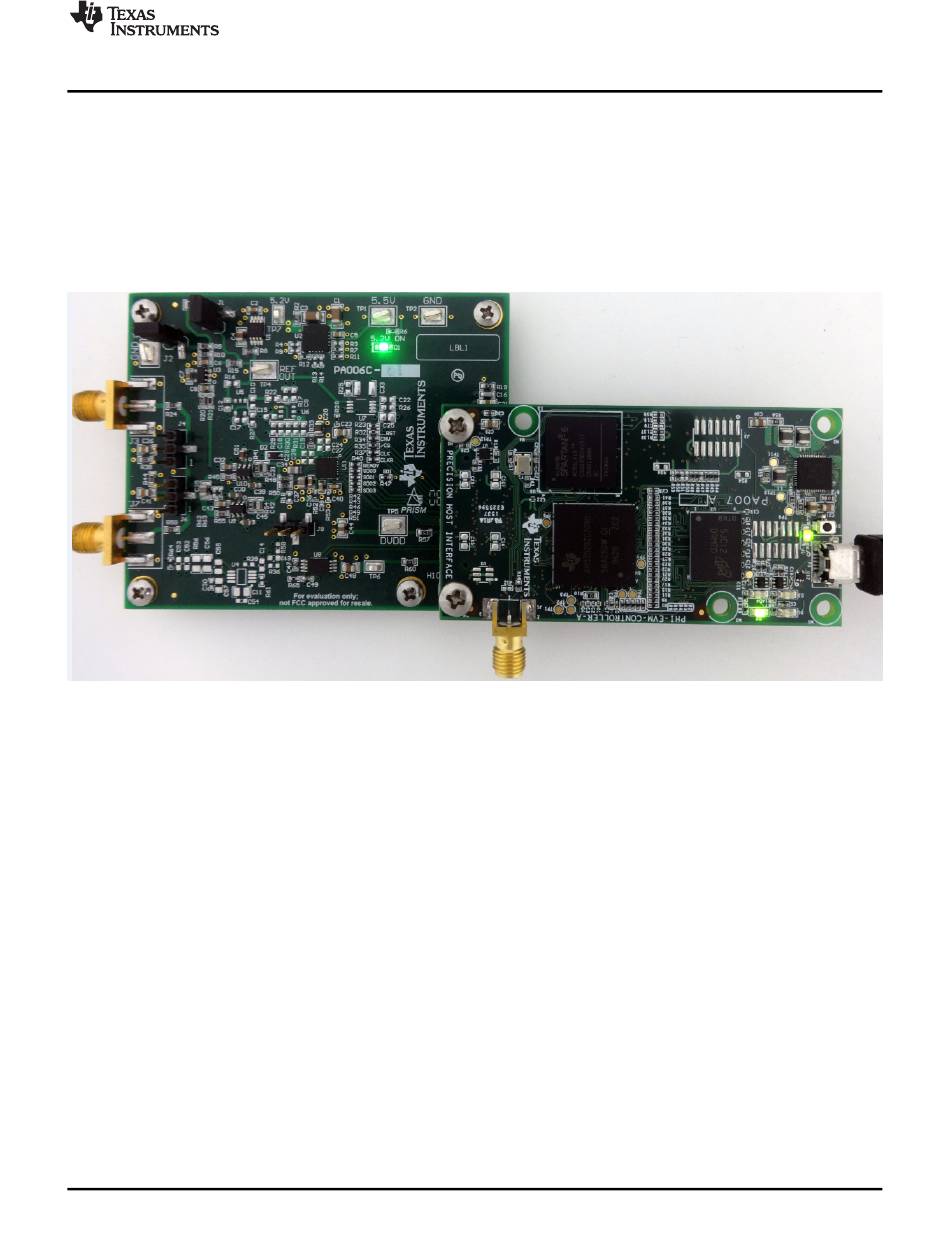

• LEDs D1 and D2 on the PHI starts blinking to indicate that the PHI is booted up and
communicating with the PC. The resulting LED indicators are shown in
