GAMA Electronics RFR12V1C Instruction Manual

WWW.GAMAINC.COM
The RF12V1C is a RF receiver operating at a fixed frequency of 340 MHz. The receiver operates from 12-volts DC input power and
provides one isolated Form "C" relay contact output (normally open and normally closed contacts with one common). The receiver
operates with Model KF340-2 transmitter. Up to 30 transmitters can be stored in the receiver's memory, and are programmed into
the receiver's memory during the programming process. A "program" button is provided on the receiver to program the transmitter(s)
address into the receiver's memory. A LED on the receiver indicates the receiver's programming status and illuminates when the
relay is energized. The receiver is encased in a small, waterproof enclosure. The receiver provides five, 1/4" push-on terminals for
connecting the input power and output relay contacts.
"Latching" vs. "Momentary" Relay Operating Modes: When the receiver is configured for "latching" mode, the relay will toggle
on and off each time a switch is pressed on the transmitter. When the receiver is configured for "momentary" mode the relay will
energize and remain energized for as long as the switch is pressed. Information on how to configure the receivers operating mode
can be found in the "programming instructions".
Operating Temperature Range: 0°F to 160°F
Maximum Ratings: Power for the receiver can be in the range of 10VDC to 15 VDC. It is recommended that a 12-volt deep cycle
marine battery be used to power the receiver. The receiver is reverse polarity protected. The relay contacts are electrically isolated
from the DC power leads. The relay contacts are rated at 10 Amps @ 30 VDC or 120/240 VAC.
Power Consumption: 10 Milliamperes when the relay is de-energized. 45 Milliamperes when the relay is energized.
Input/output Connections: 12VDC input power connects to the terminals marked "+" and "-" on the top panel of the receiver. For
the relay contact connections, common connects to the terminal marked "COM". The normally open contact connects to the terminal
marked "NO". The normally closed contact connects to the terminal marked "NC".
Dimensions: Receiver dimensions are 1.65"W x 1.46"D x 1.04"H. The receiver weighs 2.35 oz.
RFR12V1C
Instruction Manual

Included in this Kit:

(1) RFR12V1C Receiver
(1) 2-Button Transmitter

Available accessories:

- Additional Transmitter KF340-2
- Waterproof Transmitter KF340-2WP
- Extended Battery Transmitter GKF-WPTX-2
- Wall Mount Power Supply EPS120050
- 24VDC to 12VDC Conversion Module DC2412
- 6-Pack of Replacement A-23 12V Batteries A23-6
- Long Range Antenna LRA340

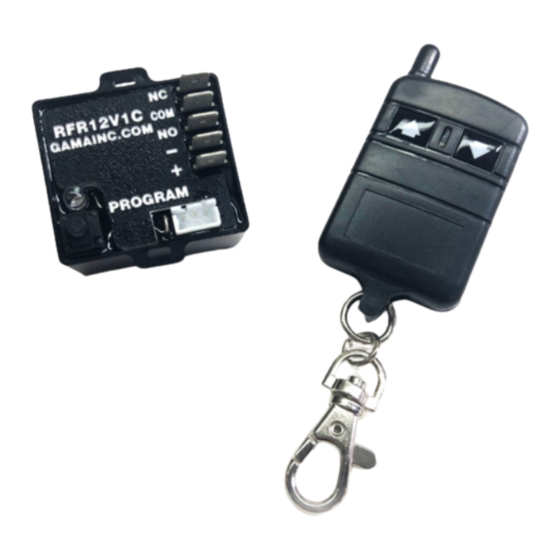

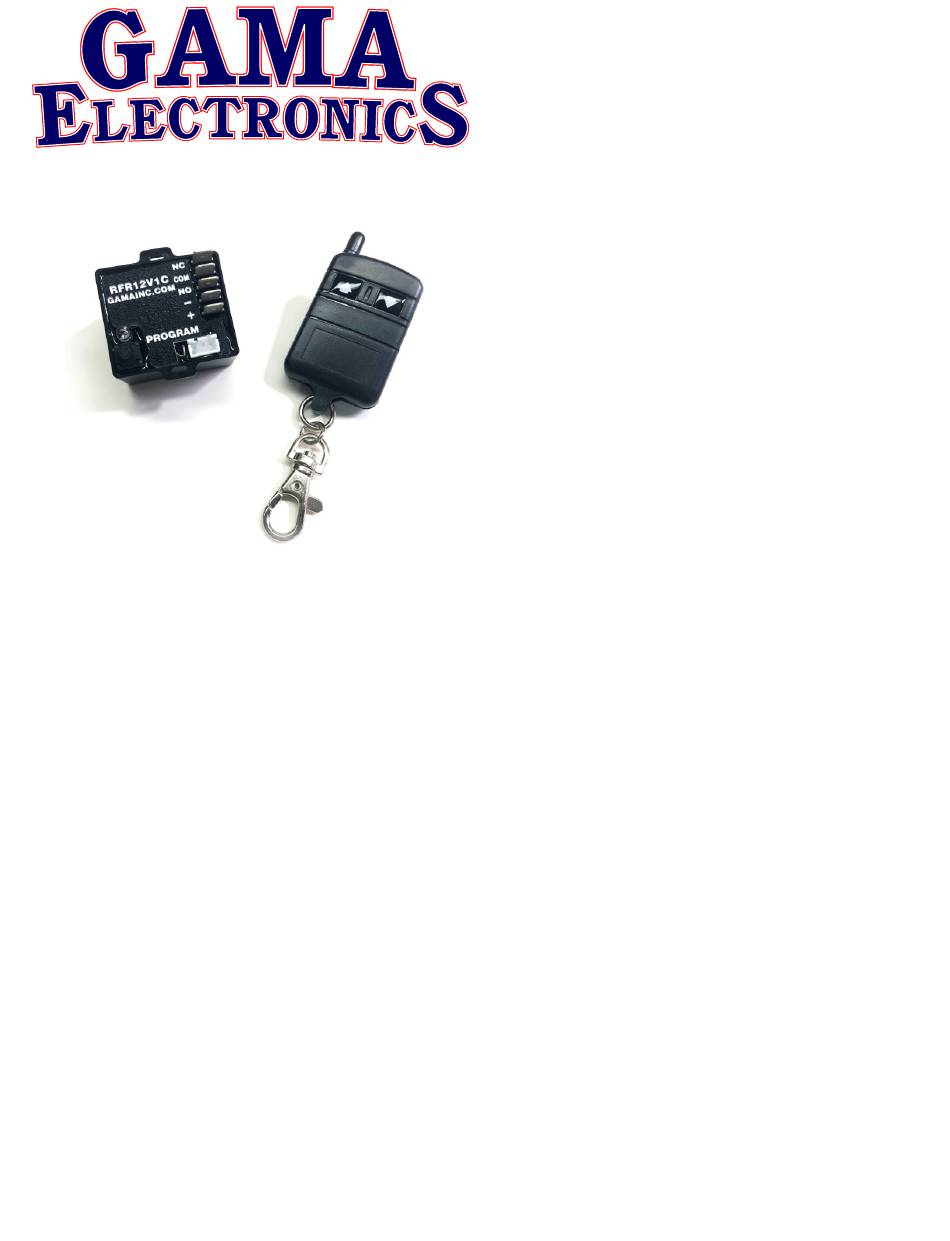

*Image shown with standard transmitter*
**SEE PAGE 3 FOR SETUP**
Page 2 REV C 07/22/20
