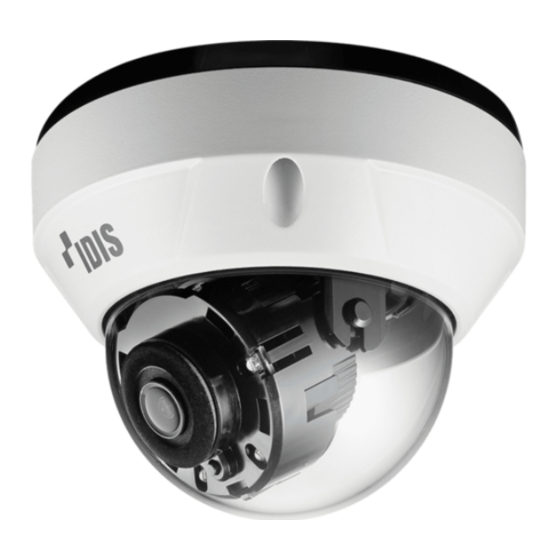

- Page 1 Network Camera Quick Guide DC-D4216X DC-D4216RX DC-D4216WRX Powered by...
-
Page 2: Safety Precautions
Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. -
Page 3: Fcc Compliance Statement
IDIS Co., Ltd. reserves all rights concerning this document. Use or duplication of this document in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this document are subject to change without prior notice for reasons such as functionality enhancements. -
Page 4: Dome Cover
Allen wrench, protect connector, and desiccant are included with DC-D4216WRX model only. Please download software (IDIS Discovery, IDIS Center, IDIS Solution Suite Compact) and product manual from this link : https://www.idisglobal.com - Search IDIS Discovery, IDIS Center, IDIS Solution Suite Compact. - Page 5 Body DC-D4216RX DC-D4216X DC-D4216WRX Network Camera...
-
Page 6: Camera Installation
Cable Rubber Network Port Remove the dome cover. Camera Installation Removing the Dome Cover DC-D4216X, DC-D4216RX Turn the dome cover counterclockwise. Remove the dome cover. Inserting a SD Memory Card Insert a SD memory card into the SD memory card slot with the ‘microSD’... -
Page 7: Installation
Installation DC-D4216X, DC-D4216RX Use the screws, anchor provided with the camera to secure the bottom cover on a wall or a ceiling. Use the provided guide pattern to check the distance between the screw holes if necessary. Use the screws, anchor provided with the camera to secure the bottom cover on a wall or a ceiling. -
Page 8: Closing The Dome Cover
Closing the Dome Cover DC-D4216X, DC-D4216RX Attach the dome cover to the bottom cover. Turn the dome cover clockwise to fasten the dome cover. Angle Adjustment DC-D4216WRX Fasten the screws for the dome cover clockwise using the Allen wrench provided with the camera. -
Page 9: Specifications
PoE, IEEE 802.3af (Class 2), 4.6W DC-D4216WRX Approval External DC-D4216X, 110mm x 88mm (4.33” x 3.46”) Dimensions (Ø x H) DC-D4216RX DC-D4216WRX 120mm x 92.9mm (4.72” x 3.65”) Weight (Main Unit) DC-D4216X 0.245kg (0.54lb) DC-D4216RX 0.26kg (0.57lb) DC-D4216WRX 0.465kg (1.02lb) V1.0... - Page 12 IDIS Co., Ltd. For more information, please visit www.idisglobal.com...
