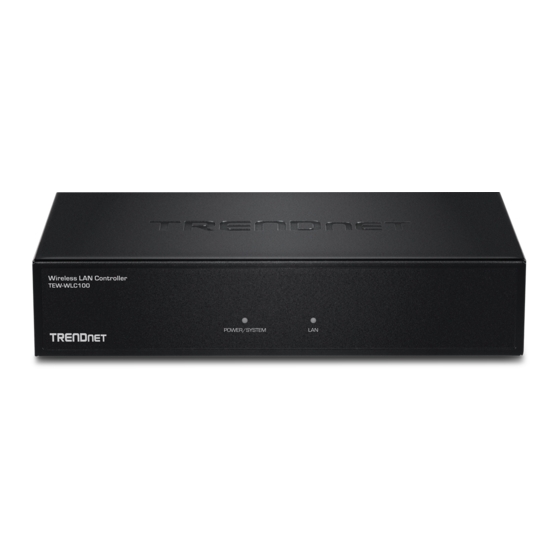

Quick Installation Guide
TEW-WLC100 (V1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEW-WLC100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TEW-WLC100

Summary of Contents for TRENDnet TEW-WLC100

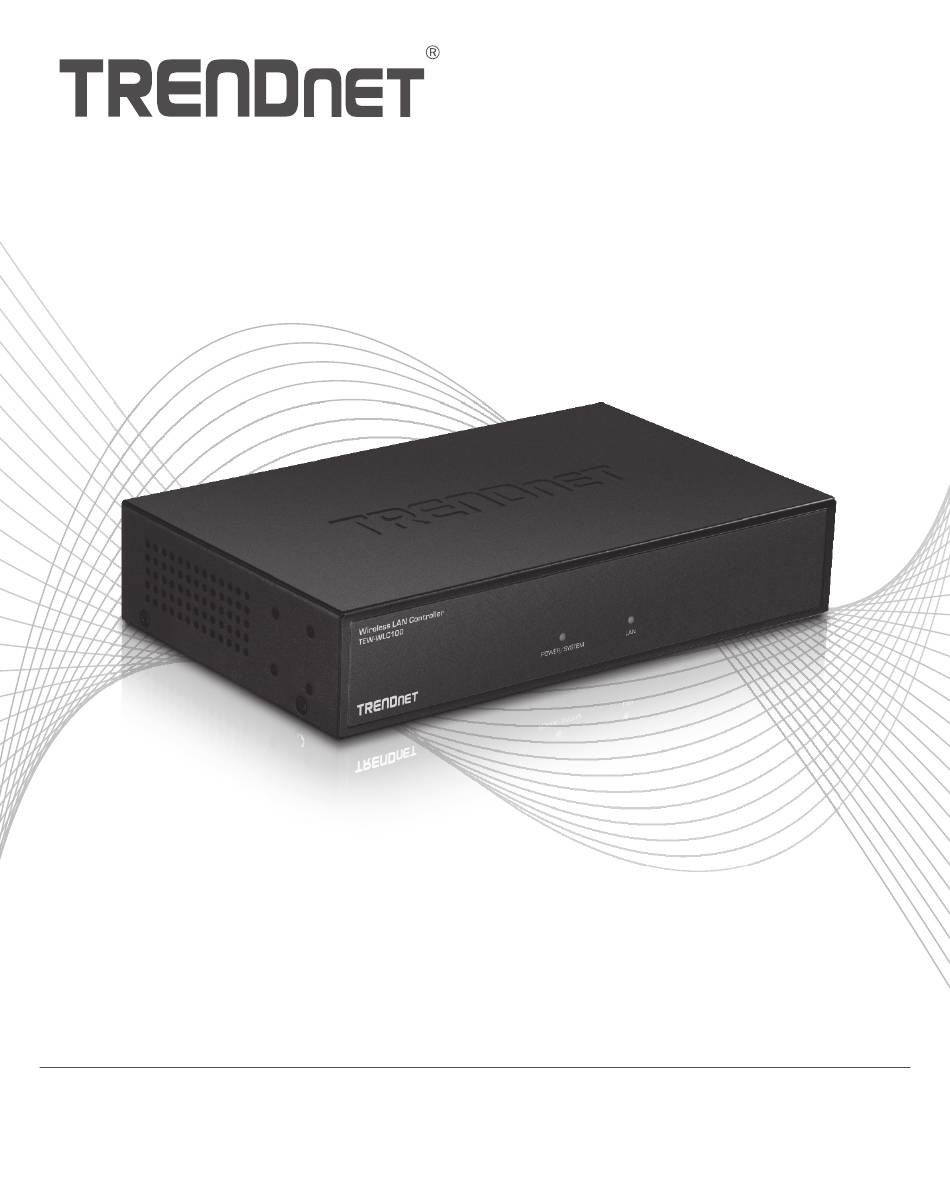

  • Page 1 Quick Installation Guide TEW-WLC100 (V1)
  • Page 2 Table of Content 1 English 1. Before You Start 2. Hardware Installation and Configuration 3. Connect your wireless access points...

  • Page 3: Before You Start

    Make sure your existing network is using a DHCP server to distribute IP addresses to the access points. By default, TRENDnet access points listed below will obtain an IP address automatically through DHCP or otherwise default back to 192.168.10.100 / 255.255.255.0 if a DHCP server is not available on your network.
  • Page 4 You can download the access point firmware from http://www.trendnet.com/support which include instructions on how to upgrade the firmware. Before any access points are added to the wireless controller, make sure to reset the access points to factory default.

  • Page 5: Initial Controller Setup

    2. Initial Controller Setup Note: Before connecting the wireless controller to the network and connecting other devices such as PoE injectors or access points, follow the steps to set up your controller IP address settings and administrator password first. Power 3.
  • Page 6 5. Enter the User name and Password, and then click Login. By default: User Name: admin Password: admin Login 6. Click Management and click on LAN. Management...

  • Page 7: Account Settings

    7. Configure the wireless controller IP address settings to match the requirements of your network and click Apply. IP Address 192.168.10.200 Netmask 255.255.255.0 Gateway 192.168.10.1 DNS1 192.168.10.1 DNS2 8. To change the controller administrator password, click Account Settings and click Edit. Account Settings Edit...
  • Page 8 New Password Confirm Password 10. Using an Ethernet cable, connect one of the five Gigabit Ethernet ports located on the back of the wireless controller to your network (e.g. router, switch, etc.) TEW-WLC100 Network...

  • Page 9: Connect Your Wireless Access Points

    3. Connect your wireless access points Important Note: Please make sure your access points have met the requirements in Section 1. 1. Using an Ethernet cable, connect each wireless access point to the wireless controller or your network. Note: If powering the access points using their power adapters, you can connect the access points directly to your network or the wireless controller.

  • Page 10: Initial Wireless Setup

    4. Initial Wireless Setup 1. Using your computer and web browser, access the wireless controller management page using the newly assigned IP address settings (configured in Section 2) and login. Note: If the IP address settings were not changed in Section 2, the IP address settings for the controller are 192.168.10.200 / 255.255.255.0.
  • Page 11 4. After the access points are discovered and appear in the Device List, under the Action column, click on each access point to add them to the wireless controller. Accept Device Name Mac Address Address History Type Action Wifi Group Status Client DOWN...
  • Page 12 7. In the list below, click Create to create a new wireless profile. 8. In the Edit Wireless Group window, enter the wireless network name/SSID for the wireless network. (e.g. TRENDnet-WiFi) Note: The SSID is the wireless network name used to broadcast and be discovered by your wireless client devices to connect to your wireless network.
  • Page 13 Wireless LAN Controller Trade Name: TRENDnet TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. Safety EN 60950-1: 2006 + A11: 2010 + A12: 2011 + A2: 2013...
  • Page 14 Product Warranty Registration If you have any questions regarding the product Please take a moment to register your installation, please contact our Technical Support. product online. Go to TRENDnet’s website at: www.trendnet.com/register Toll free US/Canada: 1-855-373-4741 Regional phone numbers available at www.trendnet.com/support...
