Quick Installation Guide
TEW-WLC100

Advertisement

loading
Need help?

Need help?

Do you have a question about the TEW-WLC100 and is the answer not in the manual?

Questions and answers

Related Manuals for TRENDnet TEW-WLC100

Summary of Contents for TRENDnet TEW-WLC100

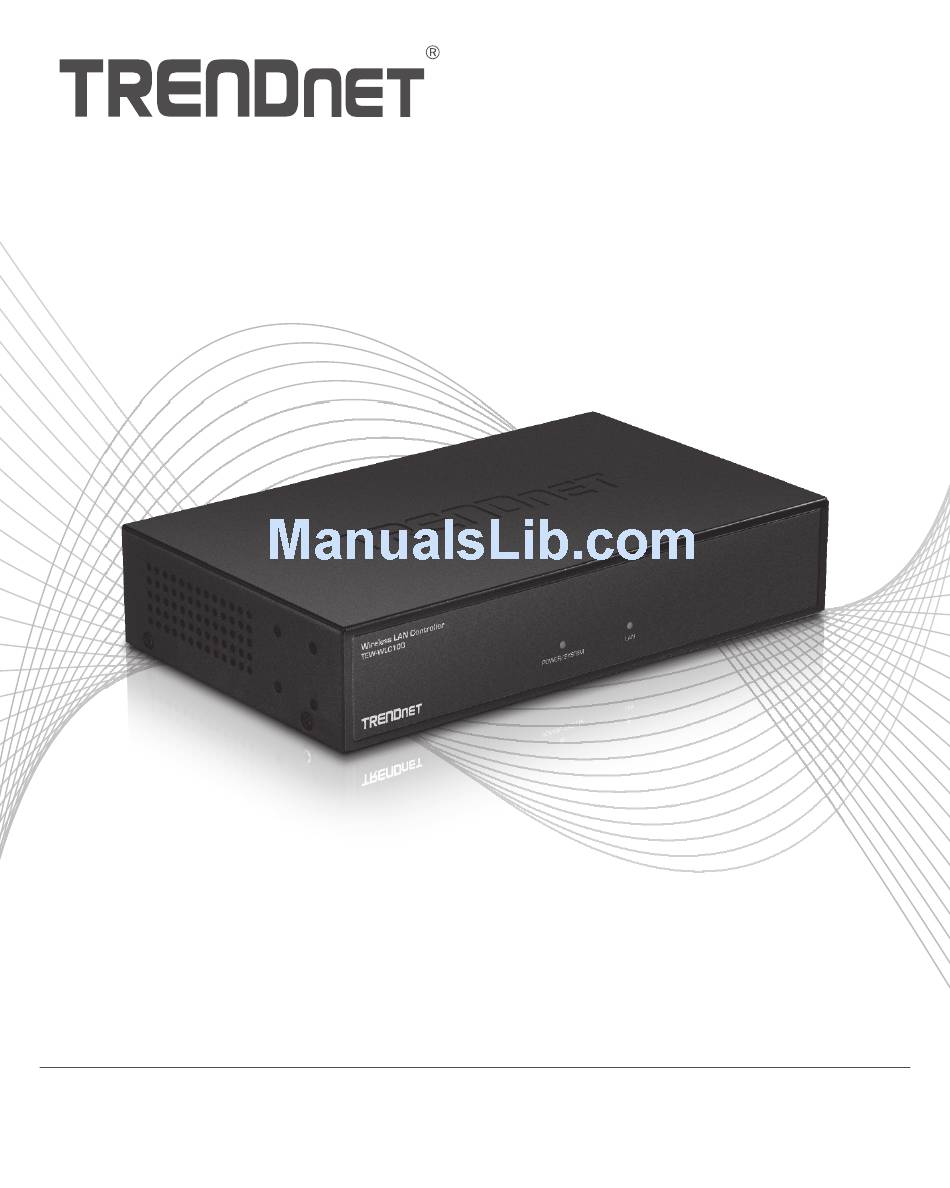

  • Page 1 Quick Installation Guide TEW-WLC100...
  • Page 2 Table of Content 1 English 1. Before You Start 2. Hardware Installation and Configuration 3. Connect your wireless access points...

  • Page 3: Before You Start

    Also, make sure your network is using a DHCP server to distribute IP addresses to the access points. By default, TRENDnet access point models listed below will obtain an IP address automatically through DHCP or otherwise default back to 192.168.10.100 / 255.255.255.0 if a DHCP server is not available on your network.
  • Page 4 2. Hardware Installation and Configuration Power 3. Assign a Static IP address to your computer's network adapter in the subnet of 192.168.10.x (e.g. 192.168.10.25) and a subnet mask of 255.255.255.0. 4. Open your web browser, type the IP address of the switch in the address bar, and then press Enter.

  • Page 5: Lan Settings

    5. Enter the User name and Password, and then click Login. By default: User Name: admin Password: admin Note: User Name and Password are case sensitive. Login 6. Click Advanced, click Setup, then click on LAN Settings. 7. Configure the wireless controller IP address settings to match the requirements of your network and click Apply.
  • Page 6 8. Using an Ethernet cable, connect one of the five Gigabit Ethernet ports located on the back of the wireless controller to your network (e.g. router, switch, etc.) TEW-WLC100 Network 9. Access the wireless controller management page using the newly assigned IP address.
  • Page 7 3. Connect your wireless access points Important Note: Please make sure your access points have met the requirements in Section 1 Access Point Compatibility. 1. Using an Ethernet cable, connect each wireless access point to the wireless controller or your network. Note: If powering the access points using their power adapters, you can connect the access points directly to your network or the wireless controller.
  • Page 8 2. After the access points are connected to your network and powered on, click on Basic, click AP Management, and Device List in the wireless controller management page. Then click on Discover to search for available wireless access points. 3. After your access points have been found, they will automatically appear in the Device List.
  • Page 9 4. To configure access point settings, under the Select column, check one or multiple access points you would like to configure and click on Device Settings to configure access points. 5. You can modify the access point basic settings such as SSID and encryption key on each band.
  • Page 10 Note: If you are using a combination of single band (2.4G) and dual band access points (2.4G & 5G), the 5G settings will only be applied to dual band access points. 6. After modifying the settings, scroll down to the Password field, enter the access points management password (default access point password: admin) and click OK to apply the settings to the access points.
  • Page 11 Wireless LAN Controller Trade Name: TRENDnet TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. Safety EN 60950-1: 2006 + A11: 2010 + A12: 2011 + A2: 2013...
  • Page 12 каждого продукта на сайте компании TRENDnet. Garantia Limitada A TRENDnet garante seus produtos contra defeitos de material e mão de obra sob condições normais de uso e serviço. Os períodos de garantia específicos estão listados em cada uma das páginas dos respectivos produtos no site da TRENDnet.
  • Page 13 Safety notes Before using your TRENDnet device for the first time, it is essential to read and understand all safety and operating instructions. Keep instructions in a safe place for future reference. Some TRENDnet products are rated for outdoor applications and can sustain certain weather conditions.
  • Page 14 Product Warranty Registration If you have any questions regarding the product Please take a moment to register your installation, please contact our Technical Support. product online. Go to TRENDnet’s website at: www.trendnet.com/register Toll free US/Canada: 1-866-845-3673 Regional phone numbers available at www.trendnet.com/support...
