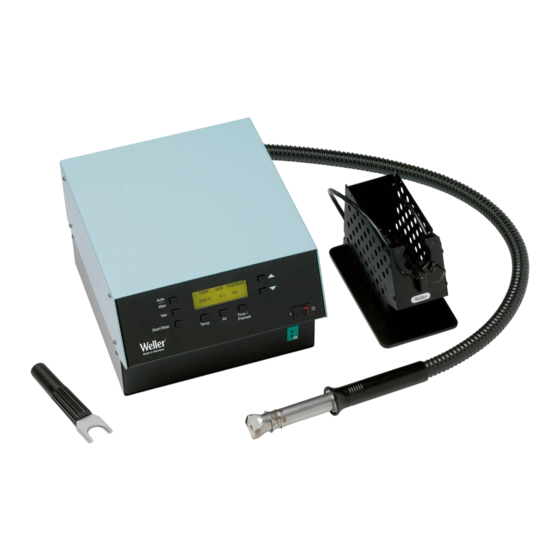

- Page 1 WHA 3000P Hot Air Station Operating Instructions Version 2.3 Weller Tools GmbH Carl-Benz-Str. 2, 74354 Besigheim, Germany Tel: +49 (0) 7143 580- 0, Fax: +49 (0) 7143 580- 108...
-
Page 2: Table Of Contents
Table of contents Page 1. Description Technical data 2. Placing in operation 2.1 Manual operating mode 2.2 Automatic operating mode 2.3 Setting temperature profile 2.4 Starting program 2.5 Control of the vacuum function 2.6 Saving and loading temperature-time profiles 3. External sensor 3.1 External sensor with measuring function "MEASURE MODE“... - Page 3 Operating instructions WHA 3000P Front view WHA3000P LCD Display "UP" Control Key "DOWN" Control Key Mains Switch "TIME"/"PREHEAT" Control Key (time setting auto. mode / pre-heating temperature) "AIR" Control Key (air flow rate) "TEMP" Control Key (hot air temperature) LED Indicator, Vacuum LED Indicator, START/STOP "START/STOP"...
- Page 4 Rear view WHA3000P 15 Vacuum Pump Filter 16 Hand-piece Connecting Hose 17 Stand Switch Connection 18 Mains Connection 19 Mains Fuse 20 Connection for Manual Control Console; Foot Switch 21 PC Interface, RS232 22 Connection for WHP3000 (bottom heater), RS232 Interface Page 4 of 14...
-
Page 5: Description
We thank you for the confidence you have shown by purchasing the Weller WHA 3000P Hot Air Station. During manufacturing, the strictest quality requirements are applied; these assure the correct function of the device and make it possible to obtain optimal soldering results. -
Page 6: Technical Data
Technical data Dimensions (W X L X H): 240 (9.44) X 270 (10.63) X 170 (6.69) mm (inch) Mains voltage: 230 V (120 V) AC Power consumption: 600 W Air flow rate: 5 – 50 l/min Temperature range: 50°C –550°C (150°F – 999°F) Accuracy: +/- 30°C (+/- 54°F) Vacuum:... -
Page 7: Automatic Operating Mode
2-Position Foot Switch (20): Hot air-Position 1, Vacuum-Position 2 (hot air and vacuum are only active in the Manual Mode, when the Foot Switch is depressed) Manual Control Console (20): Hot Air "AIR“ Control Key, Vacuum "VAC“ Control Key (Optional) When the hand-piece is placed in the AKT30 Safety Stand (17), the hot air is switched off by a Mirco Switch. -
Page 8: Setting Temperature Profile
Information on the display (1) TEMP TIME 210°C 40 l 100s Nozzle step 1 step 2 Pre-Heater 300°C 25 l step 3 Nozzle 210°C 30 l Nozzle or bottom heater symbol Temperature of the nozzle or bottom heater (with WHP 3000) Air flow rate in l/min Time remaining for the temperature profile step in sec. -
Page 9: Starting Program
2.4 Starting program The soldering process and thus the 3-step temperature-time profile is started: Directly on the Control Panel: START/STOP (10) Control Key, LED (9) illuminates. 2-Position Foot Switch (20): START/STOP corresponds to setting 1 of the foot switch (hot air and vacuum are only active when pressed) Foot Switch Position 1-Air, Position 2-Vacuum Manual Control Console (20): START/STOP using the AIR Control Key... -
Page 10: External Sensor
PROGRAM 1 PRESS AT THE SAME TIME E X I T L O A D S A V E DOWN The program memories 1 - 10 can be selected using the UP/DOWN Control Keys (2)/(3). The preferred program can be selected by pressing the LOAD Control Key (6). The indication on the display changes to the automatic mode and displays the selected parameters. -
Page 11: Teach In Mode Procedure
3.2 Teach In Mode procedure During the sequence of an automatic temperature-time profile, it is possible to continue switching the process stages 1-3 manually by pressing the Control Key "TIME" / "PREHEAT" (5). If the external sensor is suitably positioned on the assembly or component, its temperature can be monitored during the entire process sequence and can be continued to be switched when the desired specified temperatures (stage 1-3) have been reached. -
Page 12: Maintenance
Nozzle change Caution: Risk of burns! The hot air nozzle remains hot for some time after power off or removal. The hot air nozzles are fastened to the heating element using a clamping screw. To change the nozzle, loosen the screw and remove the hot gas nozzle using the Nozzle Change Tool provided. 8. -
Page 13: Hot Air Nozzles
12. Hot Air Nozzles Hot Air Nozzles for HAP 3 Round Nozzles Hot air nozzles 2-sides heated (Type ND) Hot air nozzles 4-sides heated (Type NQ)) Measuring nozzle 005 87 368 75 005 87 368 39 NQT Hot air nozzle 22,0 x 22,0 mm 005 87 368 41 NQT10 Hot air nozzle 14,8 x 14,8 mm 005 87 368 42 NQT25 Hot air nozzle 18,0 x 18,0 mm 005 87 368 43 NQT Hot air nozzle 16,0 x 16,0 mm... -
Page 14: Quick Reference
13. Quick Reference WHA3000P/V • Changeover Auto auto-manual operating mode • UP Control Key increase value • DOWN Control Key decrease value • Activating vacuum function • Start/Stop soldering process Start/Stop Respectively hot air function • Setting hot air temperature (manual mode) •...
