- Page 1 WHA 3000V Hot Air Station Operating Instructions Version 2.3 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents

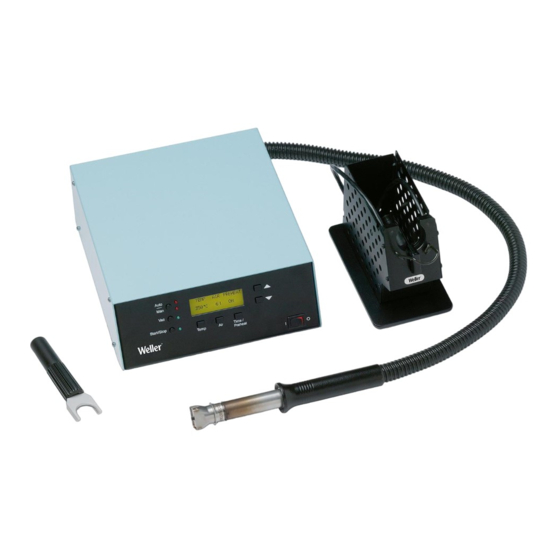

Table of contents 1. Description Technical data 2. Placing in operation 2.1 Manual operating mode 2.2 Automatic operating mode 2.3 Setting temperature profile 2.4 Starting program execution 2.5 Control of the vacuum function 2.6 Saving and loading temperature-time profiles 3. External sensor 3.1 External sensor with measuring function (MEASURE MODE) 3.2 Teach in Mode procedure 3.3 External sensor with control function (CONTROL MODE) - Page 3 Operating Instructions WHA 3000V Front view WHA 3000V 1 LCD Display 2 "UP" Control key 3 "DOWN" Control key 4 Mains Switch 5 "TIME"/"PREHEAT" Control key (time specification auto. mode / preheating temperature) 6 "AIR" Control key (air volume) 7 "TEMP" Control key (hot air temperature) 8 LED Indicator, Vacuum 9 LED Indicator START / STOP 10 "START / STOP"...
- Page 4 Rear view WHA 3000V 14 Connection WHP3000 (bottom heater) interface RS232 Interface 15 PC Interface, RS232 16 Connection for External Sensor Type K 17 Hand- piece Connecting Hose 18 Connection for Compressed air 19 Connection for Nitrogen N2 400- 600k Pa 20 Stand Switch Connection 21 Connection for Manual Control Console;...
-
Page 5: Description
We thank you for the confidence you have shown by purchasing the Weller WHA3000V Hot Air Station. During manufacturing, the strictest quality requirements are applied; these assure the correct function of the device and make it possible to obtain optimal soldering results. -
Page 6: Technical Data
Technical data Dimensions (W x L x H) : 240 (9.44) X 270 (10.63) X 101 (3,97) mm (inches) Mains/line voltage : 230 V (120 V) AC Power input : 475 W Air volume : 5 – 50 l/min. Temperature range : 50°C –... -
Page 7: Automatic Operating Mode
Selection of parameters by pressing button: TEMP (7) : Nozzle temperature in °C/°F (See Switching Temperature Conversation page 12) (6) : Air flow rate in l/min TIME/ PREHEAT (5) : Switch ON-OFF the nozzle preheating (standby) at 200°C (392°F) with 5 l/min airflow. After selection, the setting can be changed using the UP (2) or DOWN (3) Control Keys. -
Page 8: Setting Temperature Profile
The Automatic operating mode can be selected by pressing the AUTO/MAN Control Key. The light emitting diodes (LED‘s) (13) indicate the related operating state. Information on the display (1) TEMP TIME Nozzle 210°C 40 l 100s step 1 step 2 Pre-Heater 300°C 25 l... -
Page 9: Starting Program Execution
2.4 Starting program The soldering process and thus the 3-step temperature-time profile is started: Directly on the Control Panel: START/STOP (10) Control Key, LED (9) illuminates. 2-Position Foot Switch (21): START/STOP corresponds to setting 1 of the foot switch (hot air and vacuum are only active when pressed) Foot Switch Position 1-Air, Position 2-Vacuum Manual Control Console (21): START/STOP using the AIR Control Key... -
Page 10: External Sensor
PROGRAM 1 PRESS AT THE SAME TIME E X I T L O A D S A V E DOWN The program memories 1 - 10 can be selected using the UP/DOWN Control Keys (2)/(3). The preferred program can be selected by pressing the LOAD Control Key (6). The indication on the display changes to the automatic mode and displays the selected parameters. -
Page 11: External Sensor With Control Function "Control Mode
temperatures (stage 1-3) have been reached. The times determined in this manner are shown after the soldering or desoldering process in the display (1) and can be saved. 3.3 External sensor with control function "CONTROL MODE" The temperature of the external sensor is controlled in this operating mode. The external sensor records the actual value (control variable) for the temperature control. -
Page 12: Accessories
Use of nitrogen The use of nitrogen N reduces oxidation and the flux is active for a longer period. Nitrogen is available in steel cylinders at regular trade outlets. The cylinder must be equipped with a pressure reducer 0 – 10 bar. Caution!: Ensure adequate room ventilation when using nitrogen. -
Page 13: Hot Air Nozzles
11. Hot Air Nozzles Hot Air Nozzles for HAP 3 Round Nozzles Hot air nozzles 2-sides heated (Type ND) Hot air nozzles 4-sides heated (Type NQ)) Measuring nozzle 005 87 368 75 005 87 368 39 NQT Hot air nozzle 22,0 x 22,0 mm 005 87 368 41 NQT10 Hot air nozzle 14,8 x 14,8 mm 005 87 368 42 NQT25 Hot air nozzle 18,0 x 18,0 mm 005 87 368 43 NQT Hot air nozzle 16,0 x 16,0 mm... -
Page 14: Quick Reference
12. Quick Reference WHA 3000P/V Changeover Auto auto-manual operating mode UP Control Key increase value DOWN Control Key decrease value Activating vacuum function Start/Stop soldering process Start/Stop Respectively hot air function Setting hot air temperature (manual mode) Temp Setting hot air temperature and bottom heater for step 1 –...
