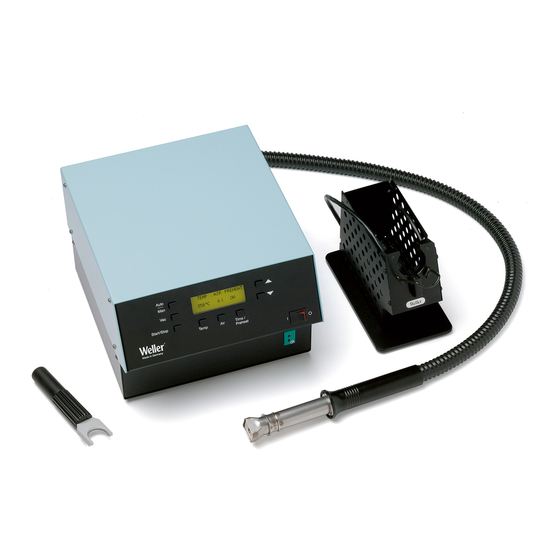

Weller WHA 3000P Operating Instructions Manual

Hot air station
Hide thumbs Also See for WHA 3000P:
Table of Contents

Advertisement

Quick Links

Download this manual

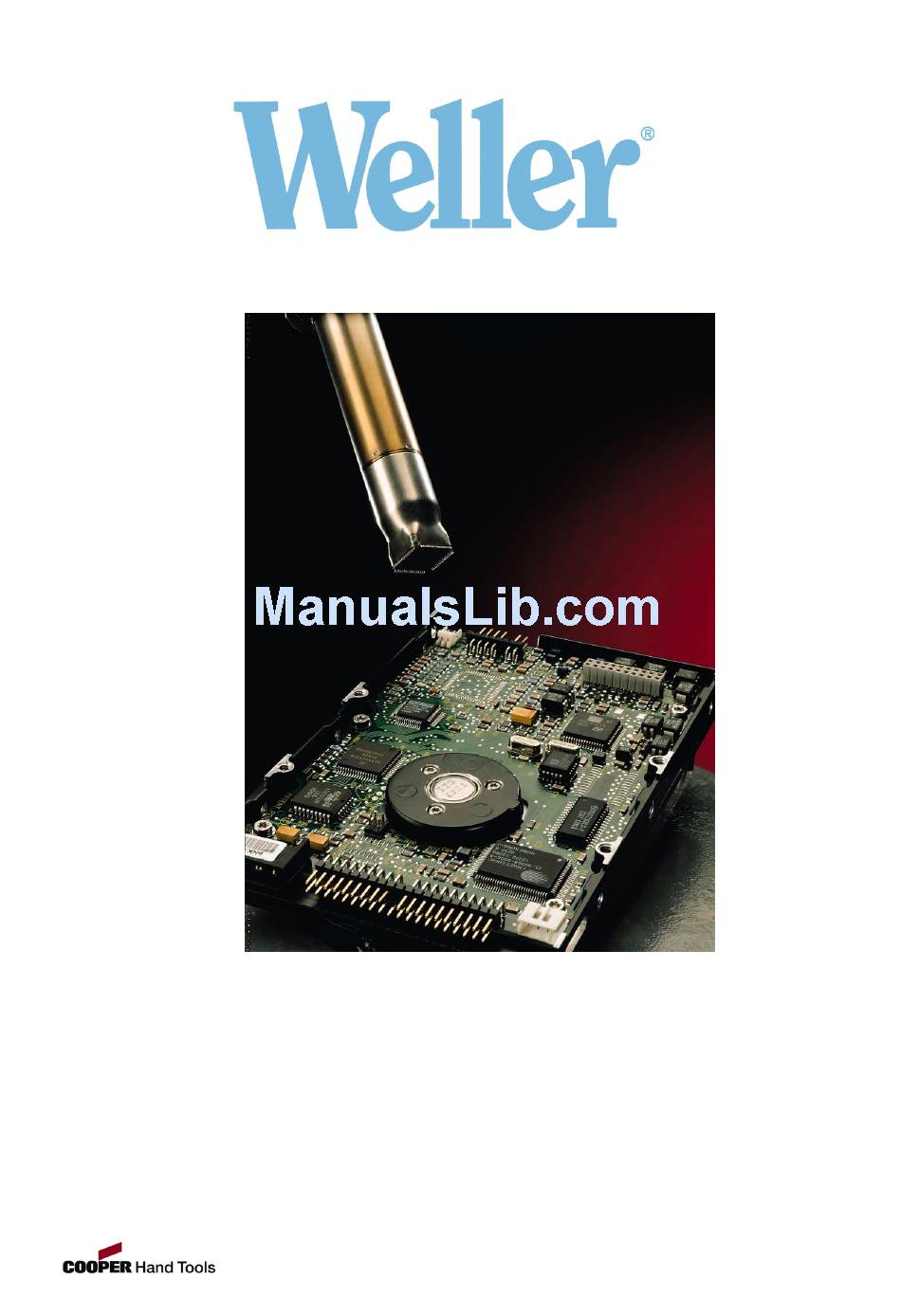

WHA 3000P Hot Air Station

Operating instructions

Version 1.2
COOPER TOOLS GmbH
Carl-Benz-Str. 2 74354 Besigheim 3
Germany Tel: 07143-580-0, Fax: 07143-580-108
Seite 1
www.cooperhandtools.com/europe

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WHA 3000P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weller WHA 3000P

Summary of Contents for Weller WHA 3000P

  • Page 1: Operating Instructions

    WHA 3000P Hot Air Station Operating instructions Version 1.2 COOPER TOOLS GmbH Carl-Benz-Str. 2 74354 Besigheim 3 Germany Tel: 07143-580-0, Fax: 07143-580-108 Seite 1 www.cooperhandtools.com/europe...

  • Page 2: Table Of Contents

    Table of contents Page 1. Description Technical data 2. Placing in operation 2.1 Manual operating mode 2.2 Automatic operating mode 2.3 Setting temperature profile 2.4 Starting program 2.5 Control of the vacuum function 2.6 Saving and loading temperature-time profiles 3. External sensor 3.1 External sensor with measuring function „MEASURE MODE“...
  • Page 3 Operating instructions WHA 3000P Front view WHA3000P LCD display "UP" button "DOWN" button Mains switch "TIME"/"PREHEAT" button (time setting auto. mode / pre-heating temperature) "AIR" button (air flow rate) "TEMP" button (hot air temperature) LED indicator, vacuum LED indicator, START/STOP "START/STOP"...
  • Page 4 Rear view WHA3000P 15 Vacuum pump filter 16 Hand-piece connecting hose 17 Stand switch connection 18 Mains connection 19 Mains fuse 20 Connection for manual control console; foot switch 21 PC interface, RS232 22 Connection for WHP3000 (bottom heater), RS232 interface COOPER TOOLS GmbH Carl-Benz-Str.

  • Page 5: Technical Data

    The manufacturer accepts no liability for usage other than that described in the operating instructions or for unauthorised modifications The WELLER WHA 3000P hot air station complies with the EU declaration of conformity as per the essential safety requirements in the directives 89/336/EEC and 73/23/EEC 1.

  • Page 6: Placing In Operation

    2. Placing in operation Place the hand-piece, with the hot air nozzle fitted, in the AKT 30 safety stand. (The device cannot be placed in operation without the safety stand.) Plug cable from safety stand into socket (17). Check whether the mains voltage matches the information on the rating plate. If the mains voltage is correct, connect the controller to the mains.

  • Page 7: Automatic Operating Mode

    The following pre-settings must be made on the WHA 3000P controller to define a customer-specific temperature-time profile. Settings step 1 – step 3 Nozzle temperature 50°C –...

  • Page 8: Setting Temperature Profile

    2.3 Setting temperature profile Select the parameters by pressing the button: • TEMP (7): 1 x pess: Nozzle temperature during the first step 2 x press Temperature of the bottom heater during the first step (only with WHP3000) Step 1-3 Symbol for nozzle or bottom heater indicates which temperature is displayed.

  • Page 9: Control Of The Vacuum Function

    2.5 Control of the vacuum function The nozzle vacuum for lifting the SMD components is activated by pressing the VAC button (11). LED (8) illuminates. If the VAC button (11) is pressed prior to the start of a de-soldering process, the vacuum integrated into the nozzle is activated automatically at the end of the process.

  • Page 10: External Sensor

    3. External sensor When using an external sensor (jacket thermocouple of type K), two different operating modes are available. By pressing the button "TIME" / "PREHEAT" (5) when switching on the unit (4), you can toggle between the operating modes "MEASURE MODE" and "CONTROL MODE". The following appears briefly in the display (1): THERMOCOUPLE THERMOCOUPLE...

  • Page 11: Lock Function

    4. Lock function The device can be locked by inserting and removing a coded plug in socket (20). The current soldering parameters set cannot be further changed. The device can only be operated using the START/STOP (10) and VAC (11) buttons. 5.

  • Page 12: Items Supplied

    8. Error messages Error Description Rectification ERROR 75 Offset entry on heating element change incorrect Repeat process ERROR 76 Heating element faulty Change heating element ERROR 110 WHP3000 housing temperature exceeded Leave to cool down REMOTE Input inhibited (can only be operated using P Operate using PC LOCKED WHA locked (lock function)

  • Page 13: Hot Air Nozzles

    11. Hot Air Nozzles Hot Air Nozzles for HAP 3 Round Nozzles Hot air nozzles 2-sides heated (Type ND) Hot air nozzles 4-sides heated (Type NQ)) Measuring nozzle 005 87 368 75 005 87 368 39 NQT Hot air nozzle 22,0 x 22,0 mm 005 87 368 41 NQT10 Hot air nozzle 14,8 x 14,8 mm 005 87 368 42 NQT25 Hot air nozzle 18,0 x 18,0 mm 005 87 368 43 NQT Hot air nozzle 16,0 x 16,0 mm...

  • Page 14: Quick Reference

    Quick reference WHA3000P/V • Changeover Auto auto-manual operating mode • UP button increase value • DOWN button decrease value • Activating vacuum function • Start/Stop soldering process Start/Stop Respectively hot air function • Setting hot air temperature (manual mode) Temp •...
