WHA 3000P Hot Air Station
Operating Instructions
Version 2.0
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WHA 3000P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weller WHA 3000P

Summary of Contents for Weller WHA 3000P

  • Page 1 WHA 3000P Hot Air Station Operating Instructions Version 2.0 Page 1...

  • Page 2: Table Of Contents

    Table of contents Page 1. Description Technical data 2. Placing in operation 2.1 Manual operating mode 2.2 Automatic operating mode 2.3 Setting temperature profile 2.4 Starting program 2.5 Control of the vacuum function 2.6 Saving and loading temperature-time profiles 3. External sensor 3.1 External sensor with measuring function "MEASURE MODE (factory setting) 3.2 Teach In Mode procedure...

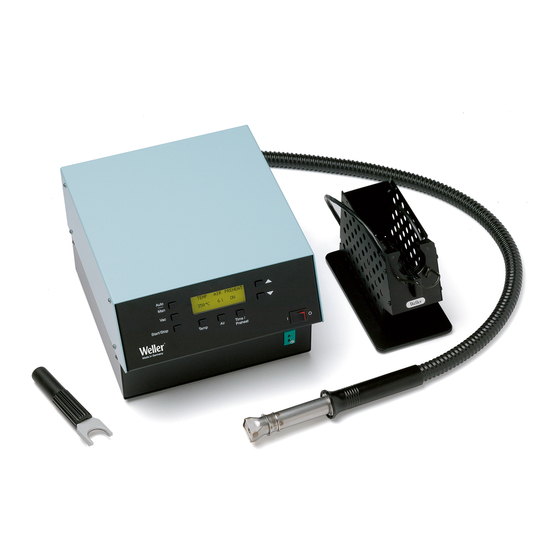

  • Page 3 Operating instructions WHA 3000P Front view WHA3000P LCD Display "UP" Control Key "DOWN" Control Key Mains Switch "TIME"/"PREHEAT" Control Key (time setting auto. mode / pre-heating temperature) "AIR" Control Key (air flow rate) "TEMP" Control Key (hot air temperature) LED Indicator, Vacuum LED Indicator, START/STOP "START/STOP"...
  • Page 4 Rear view WHA3000P 15 Vacuum Pump Filter 16 Hand-piece Connecting Hose 17 Stand Switch Connection 18 Mains Connection 19 Mains Fuse 20 Connection for Manual Control Console; Foot Switch 21 PC Interface, RS232 22 Connection for WHP3000 (bottom heater), RS232 Interface Page 4...

  • Page 5: Description

    We thank you for the confidence you have shown by purchasing the Weller WHA3000P Hot Air Station. During manufacturing, the strictest quality requirements are applied; these assure the correct function of the device and make it possible to obtain optimal soldering results.

  • Page 6: Placing In Operation

    2. Placing in operation Place the hand-piece, with the hot air nozzle installed, in the AKT30 safety stand. (The device cannot be placed in operation without the safety stand or optional WBH3000S Circuit Board Holder.) Plug cable from safety stand or optional WBH3000S Circuit Board Holder (proximity switch), into socket (17).

  • Page 7: Automatic Operating Mode

    2.2 Automatic operating mode The Automatic operating mode has a 3-step temperature-time profile. The temperature-time profile can be expanded by connecting an optional WHP3000 bottom heater. When the WHP3000 is connected via the RS232 interface (22) the bottom heater is integrated into the time profile.

  • Page 8: Setting Temperature Profile

    2.3 Setting temperature profile Select the parameters by pressing the Control Key: TEMP (7): Depressed Once Nozzle temperature during the first step Depressed Twice Temperature of the bottom heater during the first step (only with WHP3000) Repeat for Steps 1-3 Symbol for nozzle or bottom heater indicates which temperature is displayed.

  • Page 9: Control Of The Vacuum Function

    2.5 Control of the vacuum function The nozzle vacuum for lifting the SMD components is activated by pressing the VAC Control Key (11). LED (8) illuminates. If the VAC Control Key (11) is pressed prior to the start of a de-soldering process, the vacuum integrated into the nozzle is activated automatically at the end of the process.

  • Page 10: External Sensor

    3. External Sensor When using an external sensor (Thermocouple Type K), two different operating modes are available. By pressing the Control Key "TIME" / "PREHEAT" (5) when switching on the unit (4), you can toggle between the operating modes "MEASURE MODE" and "CONTROL MODE". The following appears briefly in the display (1): THERMOCOUPLE THERMOCOUPLE...

  • Page 11: Lock Mode

    WHA 3000P Hot Air Station Operating Instructions Version 2.0 Page 1...

  • Page 12: Error Messages

    9. Error messages Error Description Rectification ERROR 75 Offset entry on heating element change incorrect Repeat process ERROR 76 Heating element faulty Replace heating element ERROR 110 WHP3000 housing temperature exceeded Allow to cool down REMOTE Input inhibited (can only be operated using PC) Operate using PC LOCKED WHA locked (lock function)

  • Page 13: Hot Air Nozzles

    12. Hot Air Nozzles Hot Air Nozzles for HAP 3 Round Nozzles Hot air nozzles 2-sides heated (Type ND) Hot air nozzles 4-sides heated (Type NQ)) Measuring nozzle 005 87 368 75 005 87 368 39 NQT Hot air nozzle 22,0 x 22,0 mm 005 87 368 41 NQT10 Hot air nozzle 14,8 x 14,8 mm 005 87 368 42 NQT25 Hot air nozzle 18,0 x 18,0 mm 005 87 368 43 NQT Hot air nozzle 16,0 x 16,0 mm...

  • Page 14: Quick Reference

    13. Quick Reference WHA3000P/V Changeover Auto auto-manual operating mode UP Control Key increase value DOWN Control Key decrease value Activating vacuum function Start/Stop soldering process Start/Stop Respectively hot air function Setting hot air temperature (manual mode) Temp Setting hot air temperature and bottom heater for step 1 (auto mode) Setting flow rate...
