Installation and Operating Instructions

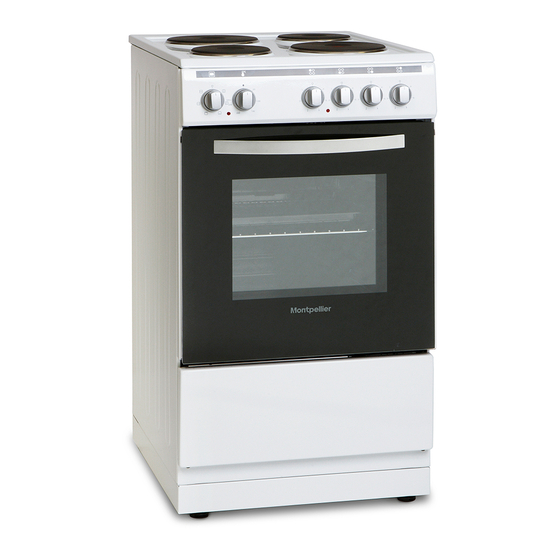

Freestanding 50cm Cooker
MSE50 - All Colours
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for montpellier MSE50
Summary of Contents for montpellier MSE50
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Freestanding 50cm Cooker MSE50 - All Colours Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier Freestanding Cooker. Our Cookers has been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Freestanding Cooker to ensure you get the most from your purchase.
- Page 3 Description of the Appliance...
- Page 4 CONTENTS: Section 1. Installation Section 2. Safety Advice Section 3. Operating the Appliance Section 4. Maintenance...
- Page 5 Section 1: Installation Remove all packaging and protective film from the appliance. Position the appliance in a dry atmosphere. The following image is provided as a guide for installation – your installer will carry out the installation in accordance with the current regulations.
- Page 7 POWER OUTPUT: Oven Bottom Element Oven 1000W Top Element 1000W Grill Element 1600W 2 x 145mm Hotplates 2 x 1000W 1500W 1 x 180mm Hotplate 2000W 1 x 180mm Rapid Hotplate This appliance has a power rating in excess or 3000W and therefore must be ‘hard wired’...
- Page 8 Section 2. Safety Advice - Please read this booklet thoroughly before installing and switching on the appliance. The manufacturer accepts no responsibility for incorrect installation and usage. - This appliance is guaranteed for Domestic Use Only. - The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning...
- Page 9 Section 3. Operating the Appliance 3.1. Control Panel 3.2. Oven Functions You are able to select various difference Oven Functions (explained below) by adjusting the Oven Function knob on the control panel (shown above). Oven Lamp Only the oven light will be turned on. This light will remain on until turned off. Static Cooking Function The oven's thermostat and warning lights will be turned on, the lower and upper heating elements will start to heat.
- Page 10 3.2 Oven Functions continued. Grilling Function The oven's thermostat and warning lights will be turned on, the grill heating element will start to heat. This function is used for grilling and toasting foods, use the upper shelves of the oven. Lightly brush the wire grid with oil to stop foods sticking and place food in the center of the grid.
- Page 11 Gas Mark to °F & °C – Temperature Conversion...
- Page 12 All timings given are purely as a guide. Timings may always vary due to personal methods, size of food being prepared and the temperature of said food stuffs. We always recommend following the cooking guidelines on your meat products and packets. For additional information, please call Montpellier on 03333 234 474. Rack Food Type...
- Page 13 3.4. Hotplates Usage The four hotplates are controlled by individual knobs on the ovens control panel. Each hotplate offers 7 different levels of heat, which are as follows: – Keeps hotplate warm – Low cooking temperature – 4/5/6 High cooking temperature –...
- Page 14 Section 4. Maintenance Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply and ensure that the appliance is completely cool. 4.1. Cleaning the interior of the oven Clean spillages from inside the oven as soon as possible after use. Ensure the oven is turned off before cleaning.
- Page 15 Brand MSE50W MSE50S Model MSE50K Type of Oven ELECTRIC Mass 38(+/-2) Energy Efficiency Index - conventional 93,5 Energy Efficiency Index - fan forced Energy Class Energy consumption (electricity) - conventional kWh/cycle 0,73 Energy consumption (electricity) - fan forced kWh/cycle Number of cavities Heat Source ELECTRIC Volume...
- Page 16 Brand MSE50W MSE50S Model MSE50K Type of Hob Electric Number of Cooking Zones Heating Technology-1 Hotplate Size-1 Ø14,5 Energy Consumption-1 193,0 Wh/kg Heating Technology-2 Hotplate Size-2 Ø14,5 Energy Consumption-2 193,0 Wh/kg Heating Technology-3 Hotplate Size-3 Ø18,0 Energy Consumption-3 193,0 Wh/kg Heating Technology-4 Hotplate Size-4...
- Page 17 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 18 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
