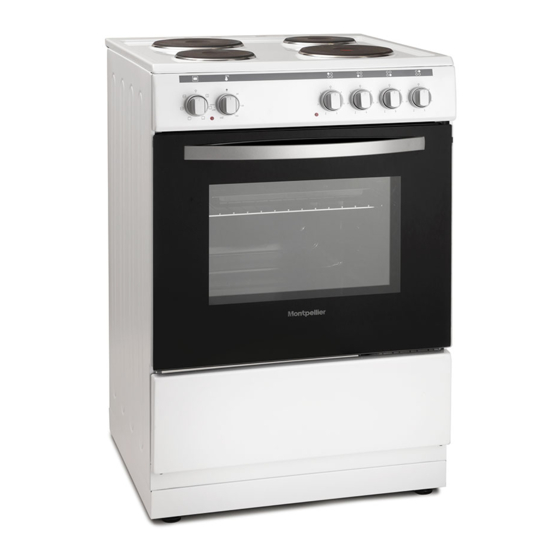

60cm Single Cavity Electric Cooker
MSCE600W - White
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for montpellier MSCE600W
Summary of Contents for montpellier MSCE600W
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions 60cm Single Cavity Electric Cooker MSCE600W - White Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
CONTENTS 1.SAFETY INSTRUCTIONS ....................4 1.1 General Safety Warnings ....................4 1.2 Installation Warnings ......................7 1.3 During Use ........................7 1.4 During Cleaning and Maintenance .................9 2.INSTALLATION AND PREPARATION FOR USE ............11 2.1 Instructions for the Installer ..................11 2.2 Electrical Connection and Safety..................12 2.3 Anti-tilting kit .........................13 2.4 Adjusting the feet ......................13 3.PRODUCT FEATURES ....................14... -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS • Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary. • This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. - Page 5 WARNING: Danger of fire: Do not store items on the cooking surfaces. WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. • For models which incorporate a hob lid, clean any spillages off the lid before use and allow the cooker to cool before closing the lid.
- Page 6 applicable local and international standards and regulations. • Maintenance and repair work should only be carried out by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians may be dangerous. Do not alter or modify the specifications of the appliance in any way.
-
Page 7: Installation Warnings
appliance. 1.2 inStallation WarninGS • Do not operate the appliance before it is fully installed. • The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by incorrect placement and installation by unauthorised people. •... - Page 8 • Take care when opening the oven door during or after cooking. The hot steam from the oven may cause burns. • Do not put flammable or combustible materials in or near the appliance when it is operating. • Always use oven gloves to remove and replace food in the oven.
-
Page 9: During Cleaning And Maintenance
• Do not place heavy or flammable items (e.g. nylon, plastic bags, paper, cloth, etc.) into the drawer. This includes cookware with plastic accessories (e.g. handles). CAUTION: The inside surface of the storage compartment may get hot when the appliance is in use. - Page 10 Disposal of your old machine This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
-
Page 11: Installation And Preparation For Use
2. INSTALLATION AND dryer. PREPARATION FOR USE • The appliance can be placed close to other furniture on condition that, in the WARNING : This appliance must be area where the appliance is set up, the installed by an authorised service furniture’s height does not exceed the person or qualified technician, height of the cooktop. -
Page 12: Electrical Connection And Safety
2.2 eleCtriCal ConneCtion anD Safety • The appliance must be connected to a suitable 32amp power supply, an all- WARNING: The electrical connection pole disconnector (with at least 3 mm of this appliance should be carried out contact spacing) must be used in order by an authorised service person or to meet the safety regulations. -
Page 13: Anti-Tilting Kit
• Green/Yellow (Earth) wire to the terminal marked "PE". • Brown (Live) wire to the terminal Wall Anti- marked "L". tilting bracket • Blue (Neutral) wire to the terminal marked "N". • For this connection, a ‘Twin and Earth 6242Y’ type cable should be used. Product Dimensions A (mm) B (mm) -
Page 14: Product Features
3. PRODUCT FEATURES Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components 1. Cooktop 2. Control Panel 3. Oven Door Handle 4. Oven Door 5. Adjustable Feet Control Panel 6. -
Page 15: Use Of Product
4. USE OF PRODUCT before placing it on a hotplate. • When a hotplate is in operation, make 4.1 hob ControlS sure that the pan is centred correctly on it. Hotplate The hotplate is controlled by a knob with 6 •... -
Page 16: Cooking Table
Oven Functions grilling and toasting foods on the upper shelves of the oven. Lightly brush the wire * The functions of your oven may be grid with oil to stop food sticking and place different due to the model of your product. food in the centre of the grid. -
Page 17: Accessories
4.4 aCCeSSorieS The Flap Drawer Your appliance includes a drawer for storing accessories such as trays, shelves, grids, or small pots and pans. WARNING: The inner surface of the drawer may become hot during use. Do not store any food, plastic or flammable materials in the drawer. - Page 18 surface-damaging dish sponge) or cleaning agents containing high levels of alcohol, stain removers, degreasers, surface abrasive chemicals. Otherwise, corrosion may occur on the powder painted surfaces, and stains may occur. The manufacturer will not be held responsible for any damage caused by the use of inappropriate cleaning products or methods.
-
Page 19: Maintenance
5.2 MaintenanCe WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified technician only. Changing the Oven Lamp WARNING: Switch off the appliance and allow it to cool before cleaning your appliance. • Remove the glass lens, then remove the bulb. -
Page 20: Troubleshooting&Transport
6. TROUBLESHOOTING&TRANSPORT 6.1 troubleShootinG If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Check the household fuse for the appliance. The hob or cooking zones There is no power supply. -
Page 21: Technical Specifications
7. TECHNICAL SPECIFICATIONS 7.1 enerGy fiChe Brand Model MSCE600W Type of Oven ELECTRIC Mass 41,0 Energy Efficiency Index - conventional 93,9 Energy Efficiency Index - fan forced Energy Class Energy consumption (electricity) - conventional kWh/cycle 0,80 Energy consumption (electricity) - fan forced... - Page 22 Brand Model MSCE600W Type of Hob Electric Number of Cooking Zones Heating Technology-1 Hotplate Size-1 Ø14,5 Energy Consumption-1 Wh/kg 193,0 Heating Technology-2 Hotplate Size-2 Ø14,5 Energy Consumption-2 Wh/kg 193,0 Heating Technology-3 Hotplate Size-3 Ø18,0 Energy Consumption-3 Wh/kg 193,0 Heating Technology-4...
- Page 23 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 24 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
