montpellier MSE60W Installation And Operating Instructions Manual

montpellier MSE60W Installation And Operating Instructions Manual

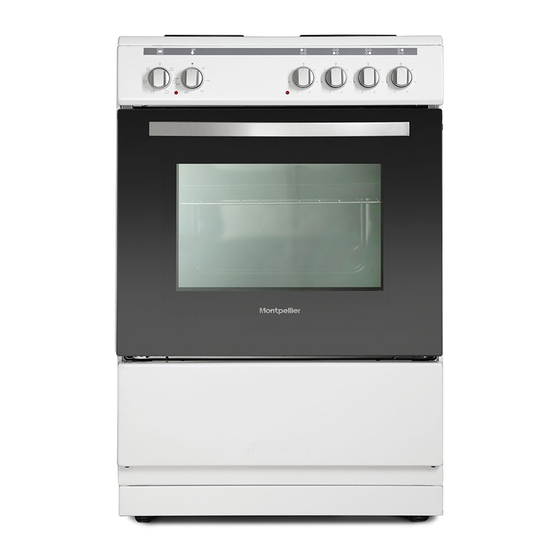

60cm single cavity electric cooker, white

Advertisement

Quick Links

60cm Single Cavity Electric Cooker
MSE60W - White
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the MSE60W and is the answer not in the manual?

Questions and answers

Summary of Contents for montpellier MSE60W

  • Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions 60cm Single Cavity Electric Cooker MSE60W - White Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
  • Page 2 Welcome Thank you for choosing this Montpellier Freestanding Cooker. Our Cookers has been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Freestanding Cooker to ensure you get the most from your purchase.
  • Page 3 Description of the Appliance...
  • Page 4 CONTENTS: Section 1. Installation Section 2. Safety Advice Section 3. Operating the Appliance Section 4. Maintenance...
  • Page 5 Section 1. Installation Remove all packaging and protective film from the appliance. Position the appliance in a dry atmosphere. The following image is provided as a guide for installation – your installer will carry out the installation in accordance with the current regulations. Your installer will connect the power cable in accordance with the current regulations.
  • Page 6 1.2. Electrical Connection Power Output Oven Bottom Element 1000W Oven Top Element 1000W Grill Element 1400W 2 x 145mm Hotplates 2 x 1000W 1 x 180mm Hotplate 1500W 1 x 180mm Rapid Hotplate 2000W This appliance has a power rating in excess or 3000W and therefore must be ‘hard wired’...
  • Page 7 Section 2. Safety Advice - Please read this booklet thoroughly before installing and switching on the appliance. The manufacturer accepts no responsibility for incorrect installation and usage. - This appliance is guaranteed for Domestic Use Only. - The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their...
  • Page 8 Section 3. Operating the Appliance 3.1. Control Panel 3.2. Oven Functions You are able to select various difference Oven Functions (explained below) by adjusting the Oven Function knob on the control panel (shown above). Oven Lamp Only the oven light will be turned on. This light will remain on until turned off. Static Cooking Function The oven's thermostat and warning lights will be turned on, the lower and upper heating elements will start to heat.
  • Page 9 3.2 Oven Functions continued. Grilling Function The oven's thermostat and warning lights will be turned on, the grill heating element will start to heat. This function is used for grilling and toasting foods, use the upper shelves of the oven. Lightly brush the wire grid with oil to stop foods sticking and place food in the center of the grid.
  • Page 10 3.4. Hotplates Usage The four hotplates are controlled by individual knobs on the ovens control panel. Each hotplate offers 7 different levels of heat, which are as follows: – Keeps hotplate warm – Low cooking temperature – 4/5/6 High cooking temperature –...
  • Page 11 Gas Mark to °F & °C – Temperature Conversion...
  • Page 12 All timings given are purely as a guide. Timings may always vary due to personal methods, size of food being prepared and the temperature of said food stuffs. We always recommend following the cooking guidelines on your meat products and packets. For additional information, please call Montpellier on 03333 234 474. Rack Food Type...
  • Page 13 Section 4. Maintenance Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply and ensure that the appliance is completely cool. 4.1. Cleaning the interior of the oven Clean spillages from inside the oven as soon as possible after use. Ensure the oven is turned off before cleaning.
  • Page 14 . .. _ - - -- .., ... u .• Brand Brand ._,,. MSE60W MSl:60W Mxlel Model Type of Oven ELECTRIC Electric Type of Hob Mass Number of Cooking Zones Hotplate Energy Efficiency Index - conventional 95,3 Heating T echnology-1...
  • Page 15 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
  • Page 16 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
