Installation & User Instructions - Please keep for future reference
Important
– Please read these instructions fully before installing or using
These instructions contain important information which will help you get the best from
your appliance and ensure safe and correct installation, use and maintenance.
MR100DFK
MR100DFS
www.montpellier-appliances.com

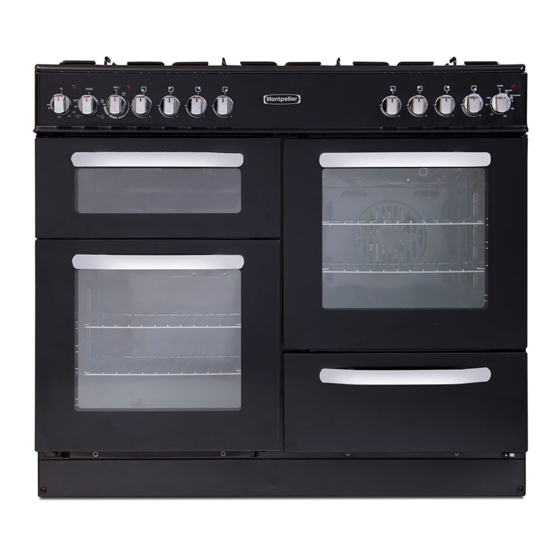

Dual Fuel Range Cooker
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for montpellier MR100DFK
Summary of Contents for montpellier MR100DFK

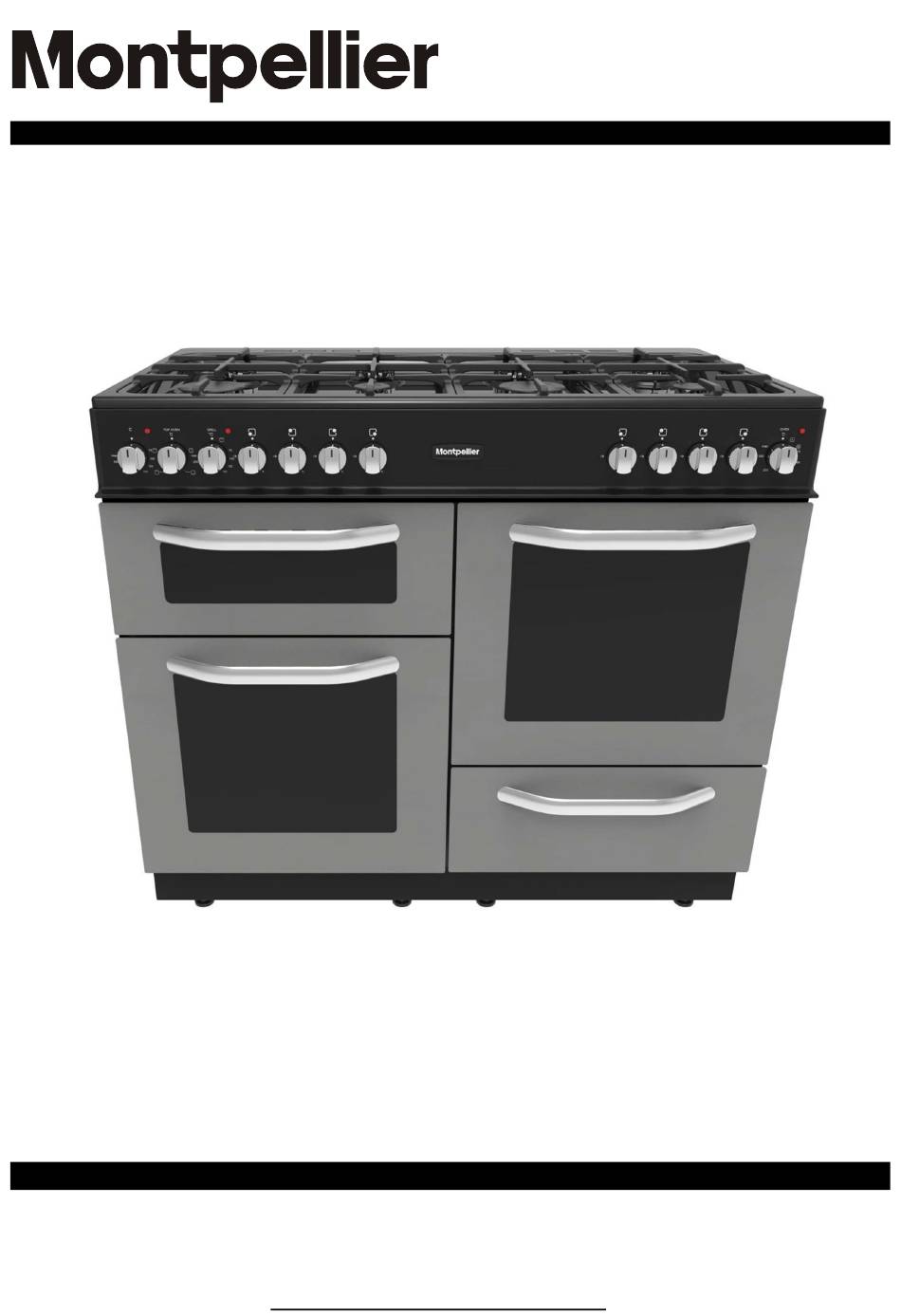

- Page 1 Dual Fuel Range Cooker Installation & User Instructions - Please keep for future reference MR100DFK MR100DFS Important – Please read these instructions fully before installing or using These instructions contain important information which will help you get the best from your appliance and ensure safe and correct installation, use and maintenance.
-
Page 3: Table Of Contents
Contents Safety Information Parts Installation Positioning Fixing to the wall Electrical connection User Instructions 9-15 Using the hob Cookware selection Using the fan ovens Using the conventional oven and grill Storage compartment Cleaning and Maintenance serial number You can find your when you open the oven door, near the bottom plinth of Troubleshooting... -
Page 4: Safety Information
Safety Information Important – Please read these instructions fully before installation INSTALLATION WARNINGS DURING USAGE IMPORTANT: This product MUST be installed IMPORTANT: Children and persons with by a qualified Gas Safe registered installer in reduced physical, sensory or mental capabilities accordance with local regulations. - Page 5 Safety Information Important – Please read these instructions fully before installation IMPORTANT: Make sure the cooker control IMPORTANT: When the door of the oven is knobs are all in the off position when not in use. open, do not hang or lean anything on it. You may unbalance your appliance or damage the IMPORTANT: If you do not intend to use your door or door hinges.
-
Page 6: Parts
Parts Please familiarise yourself with the parts and accessories listed below 1- Control panel 2- Oven door 3- Big burner 4- Middle burner 5- Middle burner 6- Small burner 7- Temperature indicator light 8- Grill pan with removable handle 9- Wire shelves 10- Grill and conventional oven door 11- Fan oven 12- Second fan oven... -
Page 7: Installation
Installation Installation gas THIS COOKER MUST BE INSTALLED There must be enough natural ventilation to ACCORDING TO BS 6172: 2010 BY A SUITABLY QUALIFIED GAS SAFE provide the gas to be used in the environment. REGISTERED INSTALLER The average air flow must directly come in through ventilation from the outside. -
Page 8: Positioning
Installation Installation gas Installation of cooker IMPORTANT - All Gas installations must be carried out by a suitably qualified person. For information on choosing a gas installer contact the ‘Gas Safe Register’. www.gassaferegister.co.uk The appliance can be placed close to other furniture on condition that the furniture’s height does not exceed the height of the cooker panel Make sure that there are no combustible or... -
Page 9: Fixing To The Wall
Installation Installation gas Gas Connection THIS COOKER MUST BE INSTALLED ACCORDING TO BS 6172: 2010 BY A SUITABLY QUALIFIED GAS SAFE REGISTERED INSTALLER ! Failure to do this will invalidate your warranty Fixing to the wall Before using the appliance fix it securely to the wall using the chain kit provided. -
Page 10: Electrical Connection
Installation Electrical connection IMPORTANT: Electrical connections 3. The electrical cable should not touch the must be carried out by a suitably hot parts of the appliance. qualified person and in accordance with all relevant local building and installation The electrical cable (not supplied) regulations. -
Page 11: User Instructions
User Instructions Using the Hob Ignition Button Hob Burner Control Press and turn the control knob towards the large flame position. Left front burner Left rear burner Pressing the control knob down will engage the electronic ignition and allow the gas to flow. Manual Ignition of the Gas Burners In the case of electricity failure resulting in loss of electronic ignition follow this... -
Page 12: Cookware Selection
User Instructions Using the Hob When turning the hob off, turn the knob in the clockwise direction so that the knob shows “ ” position or the marker on the knob points upwards. Your hob has burners of different diameters. The most economic way of using gas is to choose the correct size gas burners for your cooking pan size and to bring the flame to... -
Page 13: Using The Fan Ovens
User Instructions Using the fan oven Using the Fan Oven Turn the Fan Oven knob clockwise and align the marker on the control knob with the required temperature (°C) The indicator light on the control panel will go out and the thermostat will turn the element off when the selected temperature has been reached inside the oven. -
Page 14: Using The Conventional Oven And Grill
User Instructions Using the conventional oven and grill (Top left) Using the Conventional Oven and Grill Turn the control knob (TOP OVEN) clockwise and align the marker on the knob with the required temperature. The indicator light on the control panel will go out when the selected temperature has been reached inside the oven. -
Page 15: Storage Compartment
User Instructions Storage compartment (lower right) Storage compartment This range cooker incorporates a storage compartment. This compartment is for pans, oven trays and other non-flammable cooking equipment. Do not store anything flammable in this compartment. Please note this compartment may get hot. -
Page 16: Cleaning And Maintenance
Cleaning and Maintenance Cleaning WARNING! Isolate the power supply to the cooker and make sure that the oven is cool. Do not clean using caustic creams, abrasive cleaning powders, thick wire wool or hard tools. Enamelled parts of the oven can be damaged if excess cleaning liquids are not immediately removed. - Page 17 1. If no electrical functions appear to work, 3. DO NOT attempt to repair this cooker check the cooker isolation switch has not yourself. Call Montpellier Product been turned off also check the fuse in Support on 03333 234 473 or contact your the switch and the circuit breaker in you retailer.
- Page 18 Technical Specifications Model No MR100DFK/S Power supply 220-240V~50 Hz Maximum power 5550W Size (H x W x D) 900 x 1003 x 600 Net Weight 91 kg Grill/Oven compartment volume 25 ltr Fan oven volume (upper right) 49 ltr Lower left oven...
-
Page 19: Disposal Information
Wall Fixing Guide Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your product: tradesperson if you are unsure.
