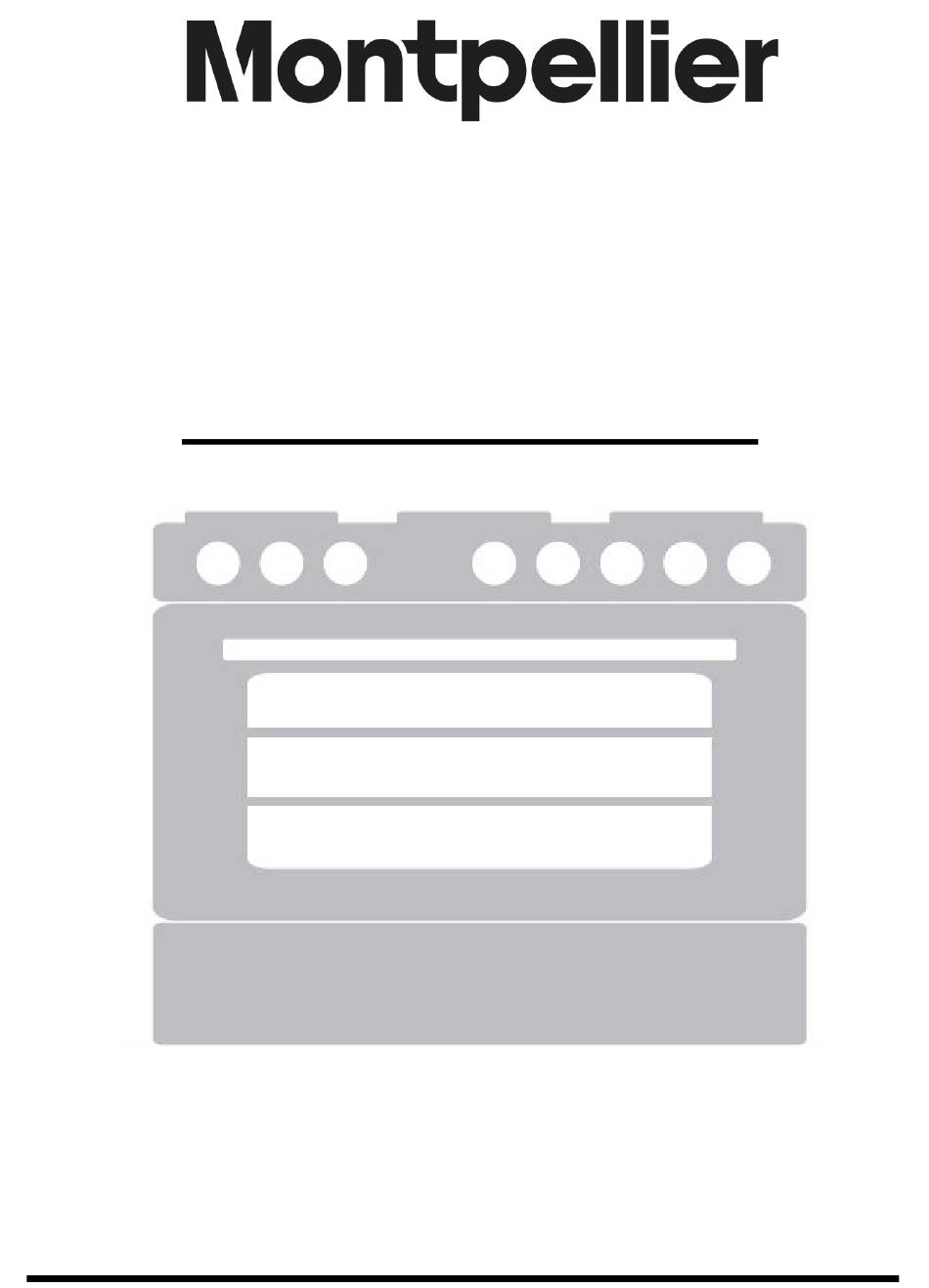

Installation and Op erating Instructions

: MR90 G OK MR90GOX

MODELS

90cm Range Cooker –

Gas

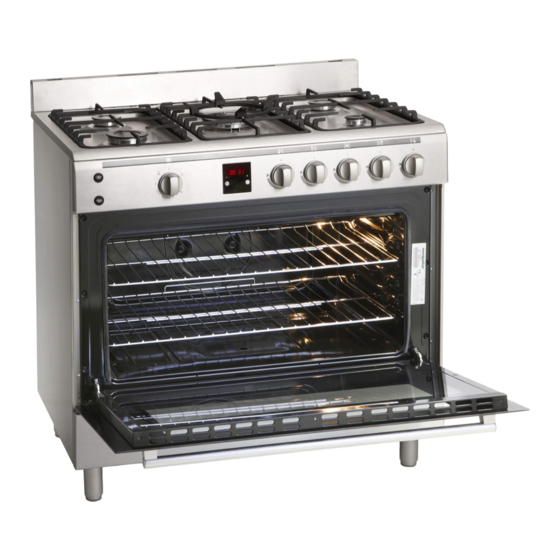

(Picture indicative of model supplied)

Please read these instructions carefully before attempting to install or use this appliance.

It is advisable to keep these instructions in a safe place for future reference.

N.B. Should your appliance require attention, our service agents will not be able to book

a service call without your unique serial number which can be found on the last page of

this manual

Need help?

Do you have a question about the MR90GOX and is the answer not in the manual?

Questions and answers

Summary of Contents for montpellier MR90GOX

Page 1 Installation and Op erating Instructions : MR90 G OK MR90GOX MODELS 90cm Range Cooker – (Picture indicative of model supplied) Please read these instructions carefully before attempting to install or use this appliance. It is advisable to keep these instructions in a safe place for future reference.
Page 2 Introduction montpellier branded appliance . Thank you for choosing this It has been designed to give years of trouble-free use provided it is installed and maintained correctly. Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference.
Page 3 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
Page 4 Description Of The Appliance 1. Splash-back 2. Hotplate 3. Control Panel 4. Door Handle 5. Storage Cover 6. Adjustable Feet (x 4) 7. Oven Door 8. Grill Burner 9. Oven Light 10. Oven Burner 11. Small Burner 12. Rapid Burner 13.
Page 5 CONTENTS: Section 1. Installation Section 2. Safety Advice Section 3. Operating the Appliance Section 4. Maintenance...
Page 6 Section 1. Installation Remove all packaging, protective film and securing tape from  the appliance. Position the appliance in a dry atmosphere.   The following dimensions are provided as a guide for installation – your installer will carry out the installation in accordance with the current regulations.
Page 7 1.2. Electrical Connection This appliance can be fitted with a 13 Amp plug and plugged into a standard, switchable 13 Amp socket. Please note that if you use a socket directly behind the appliance, a switchable spur should be accessible above the work surface in order that the power can be turned off.
Page 8 Section 2. Safety Advice This appliance must be installed by a ‘Gas Safe’ engineer. Please read this booklet thoroughly before installing and switching on the appliance. The manufacturer accepts no responsibility for incorrect installation and usage. This appliance is guaranteed for Domestic Use Only. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been...
Page 9 Section 3. Operating the Appliance 3.1. Oven Control Panel 1. Oven Light Button 2. Ignition Button 3. Oven & Grill Control Knob 4. Minute Minder 5. Front Left Hotplate Burner Control Knob 6. Rear Left Hotplate Burner Control Knob 7. Centre Hotplate Burner Control Knob 8.
Page 10 3.2.2. Operating the Grill  Fit the heat shield to the underside of the Control Panel prior to using the grill (See picture below).  Once in place, close the oven door until it just touches the heat shield (See picture below). ...
Page 11  Now press the Ignition Button until the burner ignites.  Please note that you may need to keep the control knob pressed in for up to 30 seconds to allow the flame failure device to activate fully.  If the flame goes out, wait 90 seconds before repeating the ignition procedure.
Page 12 Section 4. Maintenance Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply and ensure that the appliance is completely cool. 4.1. Cleaning the Oven Clean spillages from inside the oven as soon as possible after use. Always ensure that the surface has cooled down before cleaning.
Page 13 4.3. Removing the Oven Door If your oven is fitted with a removable door, proceed as follows: In order to improve access when cleaning the oven, you can remove the door as follows: Lift the two safety catches up then close the oven door partially.
Page 14 4.4. Cleaning The Hotplate Burners N.B The hotplate burners will not operate correctly unless the burner crown and burner cap are maintained in a clean condition and aligned correctly. Remove the Cap and Crown and clean with soapy water and/or a mild cream cleaner.
Page 15 4.5. What to do if something goes wrong There is no power to the appliance: Check there is not a power cut Check there is power to the electric socket/appliance The oven operates but the oven light is not working: If your model is fitted with an oven light, replace the oven bulb as described in section 4.2.
Page 16 Important Note: This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

This manual is also suitable for:

Mr90gok
