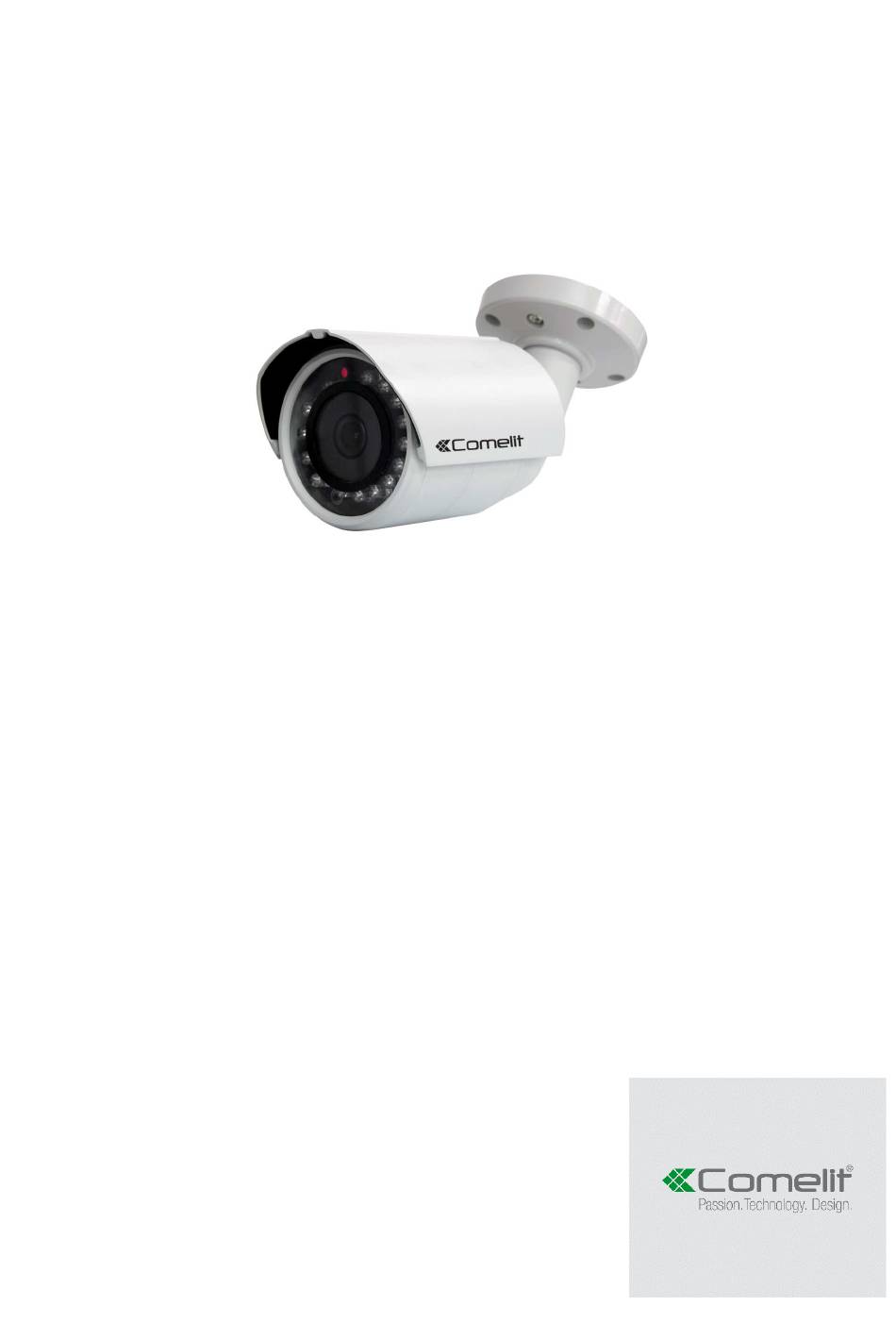

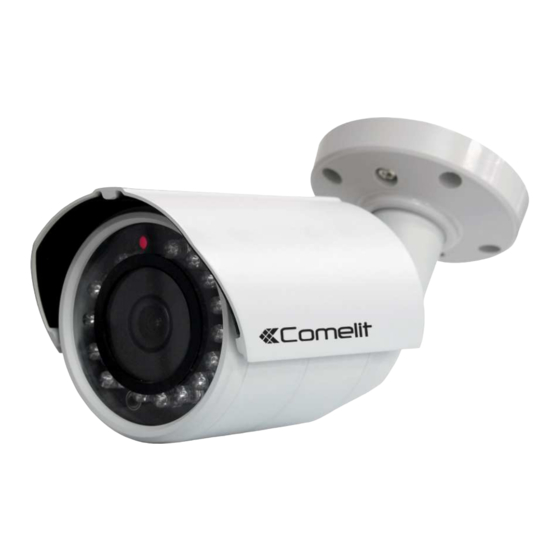

3MP BULLET IP CAMERA
ART. IPCAM703A
QUICK GUIDE
Please read this guide thoroughly before use and keep it handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPCAM703A and is the answer not in the manual?

Questions and answers

Related Manuals for Comelit IPCAM703A

Summary of Contents for Comelit IPCAM703A

  • Page 1 3MP BULLET IP CAMERA ART. IPCAM703A QUICK GUIDE Please read this guide thoroughly before use and keep it handy for future reference.
  • Page 3 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EX- POSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
  • Page 4 FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful inter- ference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturers in- structions.

  • Page 6: Table Of Contents

    Contents 1 Introduction 1.1 Components ........1.2 Key Features .

  • Page 7: Introduction

    1 Introduction The network camera supports the network service for a sensor image with progressive scan, which can be monitored on a real-time screen regardless of distances and locations. By us- ing its dedicated program, many users are able to have an access to the network camera at once or a single user can monitor various network cameras at the same time.

  • Page 8: Key Features

    1.2 Key Features • Brilliant video quality The network camera offers the highly efficient H.264 video compression, which drasti- cally reduces bandwidth and storage requirements without compromising image qual- ity. Motion JPEG is also supported for increased flexibility. • Wide Dynamic Range The network camera provides digital WDR (Wide Dynamic Range) that improves video exposure quality in scenes with high contrast between bright and dark areas in the video, for example a shady area and a sunny area in the same scene.

  • Page 9: Installation

    2 Installation For the operation of the Network Camera, it is necessary to connect a network cable for data transmission, power connection from supplied power adapter. Depending on operation methods, it is possible to connect an alarm cable additionally. For its fixation on different locations, please consult with an installer.
  • Page 10 • Extension Cable Item Description Ethernet, RJ-45 port compatible RJ-45 with 10/100Mbps PoE Modular Jack DC Jack Main Power, DC Jack, DC12V AI: Alarm In G: GND Alarm input and output, 3pin terminal AO: Alarm Out MIC: Audio In Audio line input, 2pin terminal G: GND SPK: Audio Out Audio line output, 2pin terminal...

  • Page 11: Connection

    2.2 Connection • Micro SD memory slot on the Bottom Board Remove the front cap of the camera to insert the SD memory card. • Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the network camera. Generally a cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a hub.

  • Page 12: Resetting To The Factory Default Settings

    2.3 Resetting to the factory default settings To reset the network camera to the original factory settings, go to the Setup > System > Maintenance web page (described in “System > Maintenance” of Users Manual) or use the Reset button on the network camera inside the bottom cap. •...

  • Page 13: A Appendix

    A Appendix Product Specification 3MP VCA BULLET IP CAMERA Model IPCAM703A Lens Fixed-focal 3.7mm, F2.5 Angle of View Type 1/2.8” Sony Exmor CMOS Image Sensor Pixels 2048 (H) x 1536 (V) Color: 0.2 Lux @ F2.5 Min. Illumination B/W: 0 Lux @ F2.5...
  • Page 14 TCP/IP, UDP, IPv4/IPv6, HTTP, HTTPS, QoS, FTP, Protocols UPnP, RTP, RTSP,RTCP, DHCP, ARP, Zeroconf, Bonjour Client Software Web, Smart Manager, Client S/W, Mobile S/W Network Max. User Connection Live : 10 Users, Playback : 3 Users API Support Open API, ONVIF Compliance Mobile Support Android, i-OS Video Composite Out...
