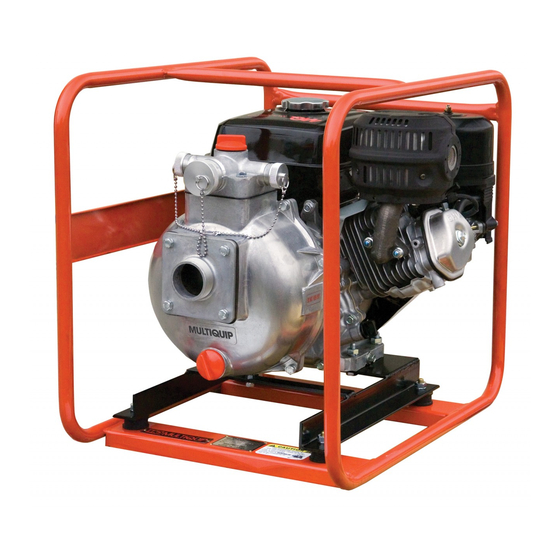

MULTIQUIP QP205SLT Operation Manual

High pressure centrifugal pumps, honda gx240k1pmt2/gx240u1pmt2/gx240ut2pmt2 gasoline engine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATION MANUAL
MODEL QP205SLT, QPT205SLT
HIGH PRESSURE
CENTRIFUGAL PUMPS
(HONDA GX240K1PMT2/GX240U1PMT2/
GX240UT2PMT2 GASOLINE ENGINE)
Revision #5 (03/25/20)
www.discount-equipment.com
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QP205SLT and is the answer not in the manual?

Questions and answers

Related Manuals for MULTIQUIP QP205SLT

Summary of Contents for MULTIQUIP QP205SLT

  • Page 1 OPERATION MANUAL MODEL QP205SLT, QPT205SLT HIGH PRESSURE CENTRIFUGAL PUMPS (HONDA GX240K1PMT2/GX240U1PMT2/ GX240UT2PMT2 GASOLINE ENGINE) Revision #5 (03/25/20) www.discount-equipment.com THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
  • Page 2 We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman, Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto,...

  • Page 3: Proposition 65 Warning

    PROPOSITION 65 WARNING PAGE 2 — QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20)

  • Page 4: Table Of Contents

    Maintenance (Pump) ........18–19 Maintenance (Engine) ........20–22 Storage ..............23 Troubleshooting (Engine) ........24 Troubleshooting (Engine/Pump) ......25 NOTICE Specifications and part numbers are subject to change without notice. QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20) — PAGE 3...

  • Page 5: Safety Information

    COULD result in DEATH or SERIOUS INJURY. CAUTION Indicates a hazardous situation which, if not avoided, COULD result in MINOR or MODERATE INJURY. NOTICE Addresses practices not related to personal injury. PAGE 4 — QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20)
  • Page 6 Also, know the phone numbers of the nearest ambulance, doctor and fi re department. This information will be invaluable in the case of an emergency. QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20) — PAGE 5...
  • Page 7 „ DO NOT overfi ll tank, since spilled fuel could ignite if it muffl er or cylinder. Allow these parts to cool comes into contact with hot engine parts or sparks from before servicing equipment. the ignition system. PAGE 6 — QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20)
  • Page 8 „ DO NOT lift machine to unnecessary heights. seek medical attention. „ ALWAYS tie down equipment during transport by securing the equipment with rope. QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20) — PAGE 7...
  • Page 9 Recyclers and manufacturers alike promote the process of recycling metal. Using a metal recycling center promotes energy cost savings. PAGE 8 — QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20)

  • Page 10: Specifications (Pump)

    135 psi (932 kPa) Dry Net Weight 90 lbs. (41 Kg.) 17.9 IN. (45.4 CM.) 21.7 IN. (55.2 CM.) 24.5 IN. (62.2 CM.) Figure 1. QP205SLT/QPT205SLT Dimensions QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20) — PAGE 9...

  • Page 11: Specifications (Engine)

    Suction Line : 2 inch Discharge : 1.5 inch METERS FT. 23.3 FT 16.7 FT 10 FT 3.3 FT U.S.GALLONS LITERS PER MINUTE Figure 2. QP205SLT/QPT205SLT Performance Curve PAGE 10 — QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20)

  • Page 12: General Information

    4,000 (1,219) Pump Support 6,000 (1,829) The pump should always be placed on solid stationary 8,000 (2,438) ground in a level position. 10,000 (3,048) QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20) — PAGE 11...

  • Page 13: Pump Components

    PUMP COMPONENTS Figure 3 shows a typical application using the QP205SLT/QPT205SLT centrifugal pump. Please note that this pump is intended for the removal of clean water. NOTE: CONTACT YOUR NEAREST MULTIQUIP DEALER FOR QUICK DISCONNECT HOSES AND FITTINGS. Figure 3. QP205SLT/QPT205SLT Pump Application 1.

  • Page 14: Basic Engine

    OFF position stops engine operations. damaged air filter, or a filter in need of replacement will allow dirt to enter the engine, causing rapid engine wear. QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20) — PAGE 13...

  • Page 15: Inspection

    Figure 5. Engine Oil Dipstick (Removal low, replenish with unleaded fuel 3. When refueling, be sure to use a strainer for filtration. DO NOT top-off fuel. Wipe up any spilled fuel immediately! PAGE 14 — QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20)

  • Page 16: Setup

    Remove any twists or sharp strainer above water for long periods can damage the bends from hose which may block the flow of water. pump. QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20) — PAGE 15...

  • Page 17: Operation

    OPEN position OPEN CLOSE (Figure 13) as the engine warms up. If the engine has not started repeat steps 1 through 6. Figure 9. Engine Choke Lever (Closed) PAGE 16 — QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20)
  • Page 18 1. Move the throttle lever quickly to the IDLE position, and place the engine ON/OFF switch in the OFF position. ALWAYS run engine at full speed while pumping. QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20) — PAGE 17...

  • Page 19: Maintenance (Pump)

    This prevents backflow and allows for faster priming when the engine is restarted. PAGE 18 — QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20)
  • Page 20 INTO 25 FEET OF LIFT SHOULD BE BETWEEN -100 AT SEA LEVEL. -25 AND -20 IN. HG. in. Hg PUMP VACUUM WIKA TESTER Figure 18. Pump Vacuum Tester QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20) — PAGE 19...

  • Page 21: Maintenance (Engine)

    Refer to the HONDA shop Manual for service procedures. 3. For commercial use, log hours of operation to determine proper maintenance intervals. NOTICE Refer to manufacturer engine manual for specific servicing instructions. PAGE 20 — QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20)
  • Page 22 4. Install drain bolt with sealing washer and tighten securely OIL FILLER DIPSTICK Figure 21. Engine Air Cleaner DRAIN SEALING BOLT WASHER Figure 20. Engine Oil (Draining) QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20) — PAGE 21...
  • Page 23 5. If the spark arrester is damaged and has breaks or holes, replace with a new one. 6. Reinstall the spark arrester and muffler protector in reverse order of disassembly. Figure 22. Spark Arrester Removal PAGE 22 — QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20)

  • Page 24: Storage

    (new or used) through the discharge opening on the pump and crank the engine several times. This will prevent excessive corrosion and also keep the mechanical seal lubricated. QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20) — PAGE 23...

  • Page 25: Troubleshooting (Engine)

    Engine overheats. Exhaust or muffler clogged with carbon. Clean or replace muffler. Replace spark plug with correct Spark plug heat value incorrect? type spark plug. PAGE 24 — QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20)

  • Page 26: Troubleshooting (Engine/Pump)

    Impeller does not turn: Adjust clearance by removing shim from pump is hard to start. Impeller and volute binding? behind impeller. Defective engine? See Engine Owner's Manual. QP205SLT/QPT205SLT CENTRIFUGAL PUMPS • OPERATION MANUAL — REV. #5 (03/25/20) — PAGE 25...
  • Page 27 © COPYRIGHT 2020, MULTIQUIP INC. Multiquip Inc , the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property of their respective owners and used with permission.
